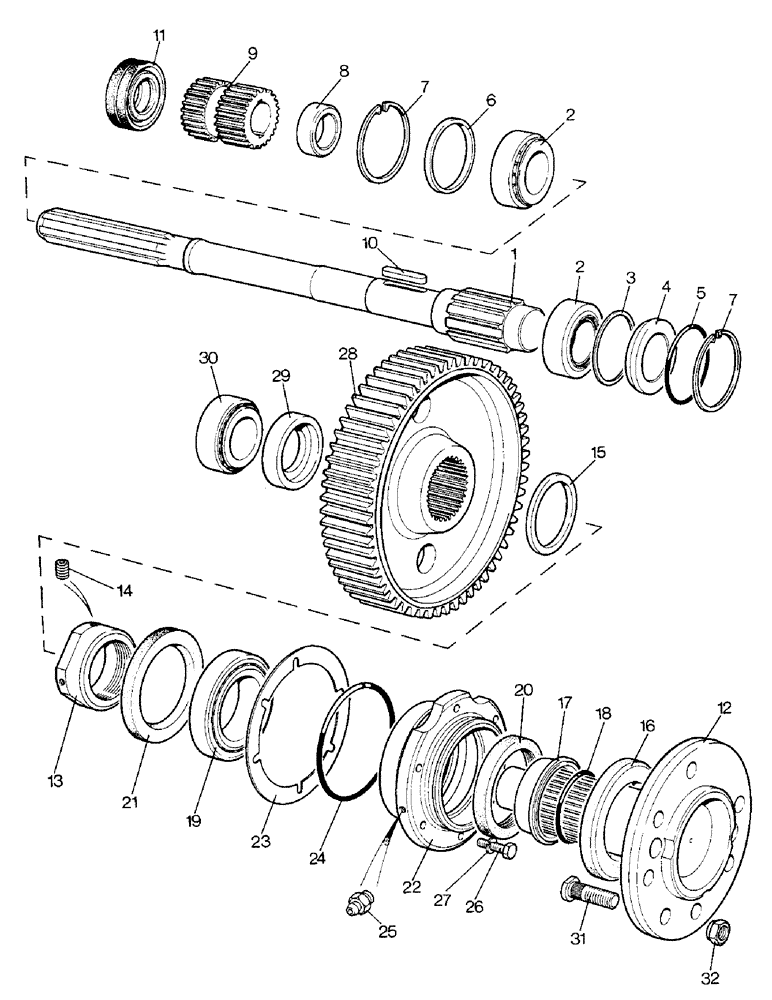

Запчасти Case IH 1690 (E03-1) - GEARS AND SHAFTS FOR FINAL DRIVES (05) - REAR AXLE

1

K946505

SHAFT

PINION SHAFT - spur, 11 teeth 11/58 ratio

2шт.

1

K949740

SHAFT

PINION SHAFT - spur, 9 teeth, 9/59 ratio

2шт.

2

K620122

BEARING

ROLLER BEARING - taper

4шт.

3

K929906

SHIM

- 0.003"

1шт.

3

K929907

SHIM

- 0.007"

1шт.

3

K929908

SHIM

- 0.009"

1шт.

3

K929909

SHIM

- 0.015"

1шт.

4

K929889

PLATE

COVER - bearing

2шт.

5

K623703

O-RING,3.1mm Thk x 94.45mm ID

- 95 MM ID

2шт.

6

K929891

BUSHING

SPACER - bearing

2шт.

7

K16296

RING

- snap, 3-3/4" ID

4шт.

8

K942015

BUSHING

SPACER - bearing

2шт.

9

K940854

HUB

- brake disc

2шт.

10

K622324

KEY

- 11/32 x 1/2 x 2-1/2"

4шт.

11

K13353

SEAL,44.45mm ID x 80.96mm OD x 12.7mm Thk

OIL SEAL - 1-3/4 x 3-3/16 x 1/2"

4шт.

12

K965819

SHAFT

DRIVE SHAFT - final, 11/58 ratio and, 9/59 ratio), Serial Range: -11213795

2шт.

12

K965819

SHAFT

DRIVE SHAFT - final, 11/58 ratio and, 9/59 ratio), Serial Range: -11213840

2шт.

12

K261008

DRIVE

SHAFT - final, 11/58 ratio, 9/59 ratio), Serial Range: -11213795

2шт.

12

K261008

DRIVE

SHAFT - final, 11/58 ratio, 9/59 ratio), Serial Range: -11213840

2шт.

13

K945534

LOCK NUT

RING NUT - 3-3/8", special, Includes Ref. 13 - 15

1шт.

14

K606408

SCREW

LOCKING SCREW - 3/8 UNC x 1/2"

1шт.

15

K955057

WASHER

- spacer, 0.230"

1шт.

15

K955058

WASHER

- spacer, 0.206"

1шт.

16

K924150

SHIELD

- dust

2шт.

17

K924148

COLLAR

SLEEVE - bearing

2шт.

18

K623698

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

-237, 70 Duro, 3.359" ID x .139" Thk

2шт.

19

K620121

BEARING

ROLLER BEARING - taper

2шт.

20

K623432

SEAL,101.6mm ID x 127mm OD x 15.88mm Thk

OIL SEAL - 4 x 5 x 5/8"

2шт.

21

K623457

OIL SEAL

OIL SEAL - 105 x 140 x 12 MM

2шт.

22

K945535

HOUSING

- oil seal, right-hand

1шт.

22

K945536

HOUSING

- oil seal, left-hand

1шт.

23

K940849

SHIM

- 0.003"

1шт.

23

K940848

SHIM,0.13mm Thk

- 0.005"

1шт.

23

K940847

SHIM,0.38mm Thk

- 0.015"

1шт.

23

K940846

SHIM

- 0.030"

1шт.

24

K623539

O-RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

- 6" ID

2шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

26

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

- 7/16 UNC x 1-1/2"

12шт.

27

K626344

WASHER, LOCK

WASHER - lock, 7/16"

12шт.

28

K946504

WHEEL

- spur, 58 teeth, 11/158 ratio

2шт.

28

K949741

WHEEL

- spur, 59 teeth, 9/59 ratio

2шт.

29

K200030

COLLAR

- shaft, 11/58 ratio and, 9/59 ratio), Serial Range: -11213795

2шт.

29

K200030

COLLAR

- shaft, 11/58 ratio and, 9/59 ratio), Serial Range: -11213840

2шт.

29

K200030

COLLAR

- shaft, 11/58 ratio and, 9/59 ratio), Serial Range: -11213795

2шт.

29

K206415

COLLAR

- shaft, 11/58 ratio and, 9/59 ratio), Serial Range: -11213840

2шт.

30

K620122

BEARING

ROLLER BEARING - taper

2шт.

31

K611464

BOLT

- 3/4 UNF, special

16шт.

32

K617177

WHEEL NUT

- 3/4 UNF, special, 7/8" overall height

16шт.

32a

K617176

NUT

3/4 UNF, special, 1-1/4" overall height

1шт.
