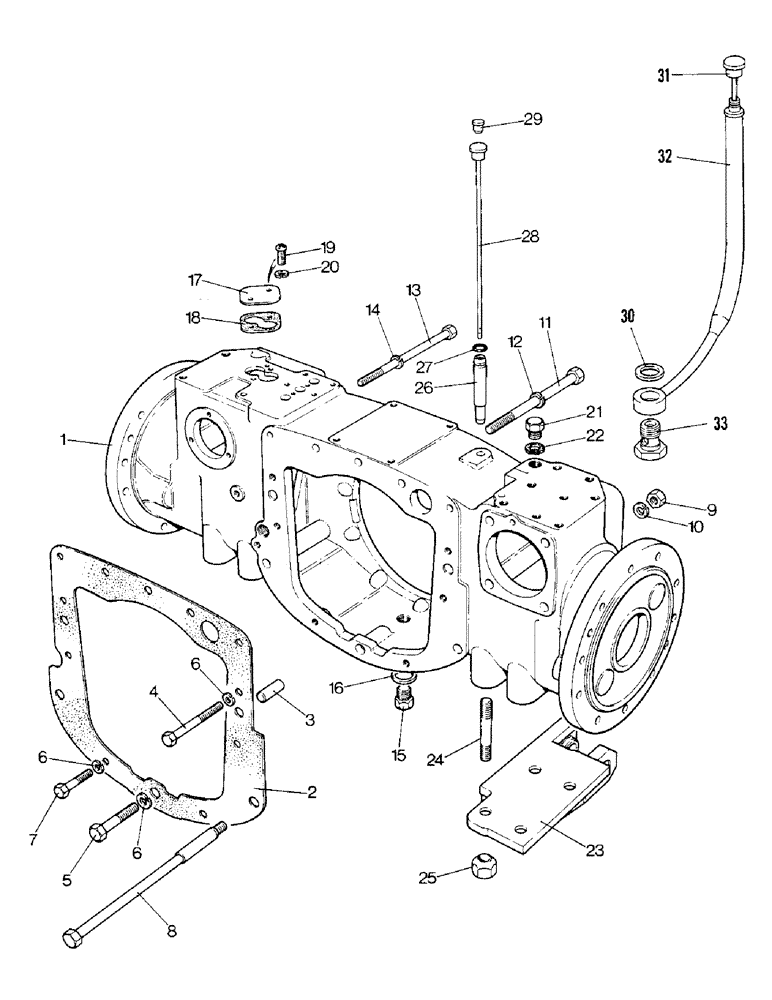

Запчасти Case IH 1690 (E01-1) - REAR AXLE CASE AND COVERS, HIGH PLATFORM, CAB, LOW PROFILE (05) - REAR AXLE

1

K956664

SHAFT

CASE - rear axle

1шт.

2

K944571

GASKET,0.25mm Thk

- case

1шт.

Loctite gasket ekiminator can be used in place of gasket. See your authorized Case dealer.

1шт.

3

K622904

PIN

DOWEL - 5/8 x 1-9/16"

2шт.

4

26-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

(Replaces K608837) Hex, 1/2"-13 x 4 1/4", G8

3шт.

5

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- 1/2 UNC x 2" (Replaces K608824)

2шт.

6

K626345

LOCK WASHER

WASHER - lock, 1/2"

5шт.

7

K601212

BOLT

- 5/8 UNC x 3"

1шт.

7

26-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

- 1/2 UNC x 3-1/2" (Replaces K608834)

1шт.

8

K601385

BOLT

- 5/8 UNC, special

2шт.

9

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

10

K19485

WASHER

- lock, 5/8"

3шт.

11

13-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

- 5/8 UNC x 9" (Replaces K601381)

3шт.

12

K19485

WASHER

- lock, 5/8"

3шт.

13

K600894

BOLT

- 1/2 UNC x 8"

2шт.

14

K626345

LOCK WASHER

WASHER - lock, 1/2"

2шт.

15

K623851

PLUG

DRAIN PLUG - 3/4 BSP

1шт.

16

K627474

WASHER

SEALING WASHER - 1-1/16"

1шт.

17

K929463

COVER

PLATE - cover

1шт.

18

K929464

GASKET

- cover

1шт.

19

K602883

SCREW,5/16" - 18 x 3/4", Gr V

SETSCREW - 5/16 UNC x 3/4"

2шт.

20

K19481

SPRING WASHER

WASHER - lock, 5/16"

2шт.

21

K619528

PLUG

- oil return port

1шт.

22

K30085

GASKET

FIBER WASHER - 7/8"

1шт.

23

K201526

BRACKET

HITCH BRACKET - left-hand

1шт.

23

K201529

BRACKET

HITCH BRACKET - right-hand

1шт.

24

K608703

STUD

- 3/4 UNC/UNF x 4"

8шт.

25

K617176

NUT

- 3/4 UNF, special

8шт.

26

K203546

DIPSTICK

SLEEVE - dipstick, (Low Profile), Start Serial: 11210106

1шт.

27

K24701

O-RING,0.426" ID x 0.566" OD x 0.07"

- 7/16", diameter (Low Profile)

1шт.

28

K203621

DIPSTICK

- transmission o, (Low Profile), Start Serial: 11210106

1шт.

29

K628102

PLUG

- Case (High Platform, Cab)

1шт.

30

K627474

WASHER

- sealing, 1-1/16" (High Platform, Cab)

1шт.

31

K203028

DIPSTICK

- transmission oil, (High Platform, Cab), Serial Range: -11210106

1шт.

32

K202913

DIPSTICK

TUBE - dipstick, (High Platform, Cab), Serial Range: -11210106

1шт.

33

K200987

BOLT

- banjo, 3/4 BSP, (High Platform, Cab), Serial Range: -11210106

1шт.
