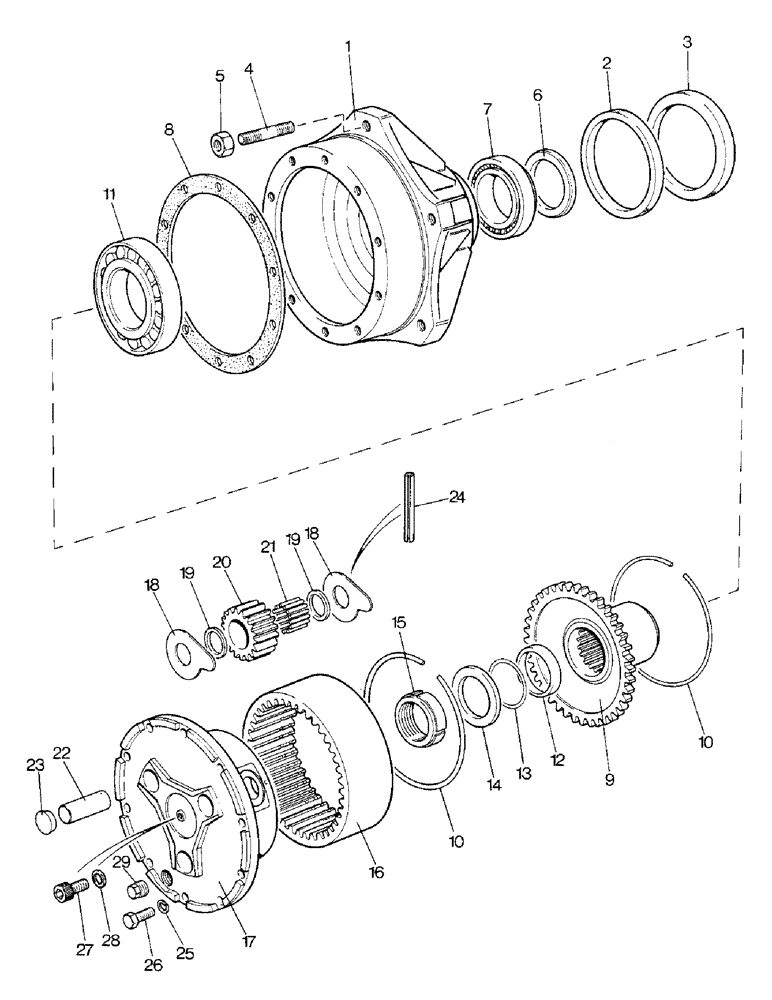

Запчасти Case IH 1690 (G07-1) - HUBS AND REDUCTIONS, MFD MODEL (04) - FRONT AXLE

1

K260217

GEAR

HUB - reduction (Carraro 107262)

2шт.

2

K260216

SEAL

- felt (Carraro 102149)

2шт.

3

K260215

SEAL

- bearing (Carraro 95340)

2шт.

4

K260218

STUD

- wheel (Carraro 106199)

12шт.

5

K260219

NUT

- wheel (Carraro 84912)

12шт.

6

K260222

RING

WASHER - bearing (Carraro 104086)

2шт.

7

K260221

BEARING

- inner (Carraro 27253)

2шт.

8

K260220

GASKET

- hub (Carraro 97170)

2шт.

9

K260208

CARRIER

GEAR - support (Carraro 97016/2)

2шт.

10

K260204

SPRING

RING - snap (Carraro 97921)

4шт.

11

K260207

BEARING

- outer (Carraro 27316)

2шт.

12

K260209

BUSHING

SPACER - gear (Carraro 97021)

2шт.

13

K260212

SHIM,0.5mm Thk

(Carraro 99724) 0.5mm Thk

1шт.

13

K260213

SHIM,0.3mm Thk

(Carraro 99725) 0.3mm Thk

1шт.

13

K260214

SHIM,0.1mm Thk

(Carraro 99726) 0.1mm Thk

1шт.

14

K260210

WASHER

- spacer (Carraro 97033)

2шт.

15

K260203

NUT

LOCKNUT - (Carraro 23325)

2шт.

16

K260205

GEAR

- internal (Carraro 98634)

2шт.

17

K260206

CARRIER

COVER - hub (Carraro 107020)

2шт.

18

K260200

BEARING WASHER

RETAINER - bearing (Carraro 109480)

12шт.

19

K260201

RETAINER

WASHER - bearing (Carraro 100036)

12шт.

20

K260202

GEAR

- planet (Carraro 100011)

6шт.

21

K260211

ROLLER BEARING

BEARING - gear (Carraro 100035)

6шт.

22

K260199

SHAFT

- gear (Carraro 100009)

6шт.

23

K260198

PLUG

- shaft (Carraro 100008)

6шт.

24

K260197

PIN

- roll (Carraro 24373)

6шт.

25

K965425

WASHER

- lock, 12 MM (Carraro 22861)

20шт.

26

K260196

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

SETSCREW - M12 x 35 MM (Carraro 20921)

20шт.

27

K965263

PLUG

- cover (Carraro 92269)

2шт.

28

K965300

WASHER

- plug (Carraro 23258)

2шт.

29

K965299

SCREW

PLUG - level (Carraro 77462)

2шт.
