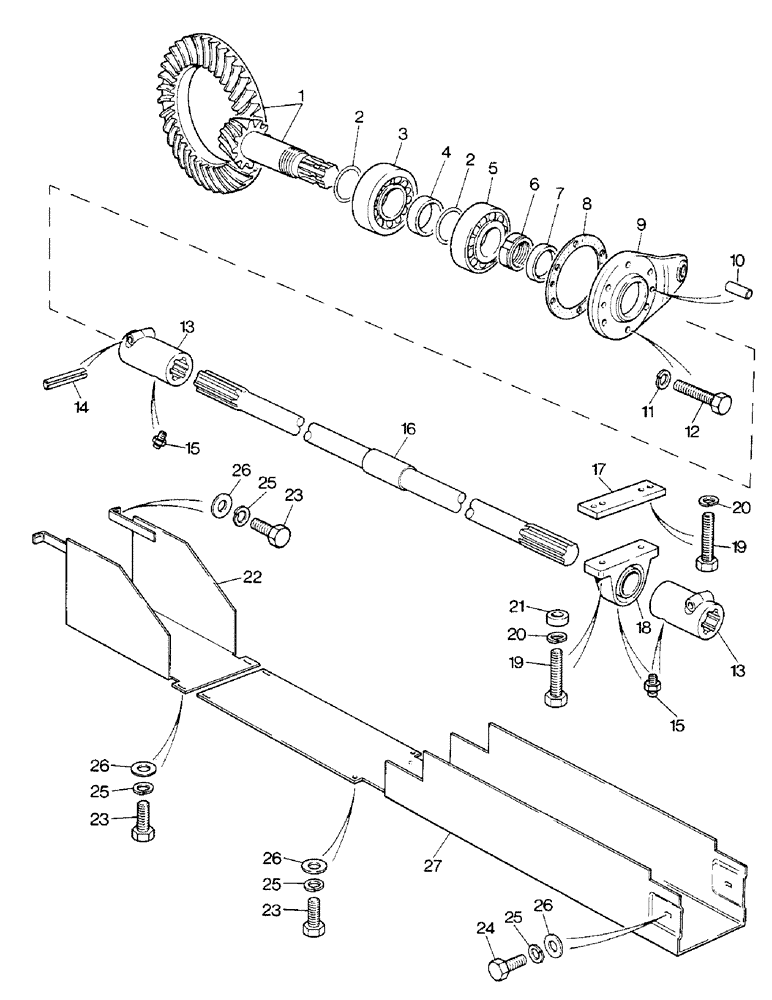

Запчасти Case IH 1690 (G04-1) - DRIVE - FRONT AXLE, MFD MODEL (04) - FRONT AXLE

1

K260170

WHEEL

SPIRAL GEAR AND PINION - differential (Carraro 65047)

1шт.

2

K965280

SHIM,2.50mm Thk

(Carraro 98427) 2.50mm Thk

1шт.

2

K965281

SHIM,2.55mm Thk

(Carraro 100157) 2.55mm Thk

1шт.

2

K965282

SHIM,2.60mm Thk

(Carraro 98426) 2.60mm Thk

1шт.

2

K965283

SHIM,2.65mm Thk

(Carraro 100158) 2.65mm Thk

1шт.

2

K965284

SHIM,40.1mm ID x 50mm OD x 2.7mm Thk

(Carraro 98425) 2.70mm Thk

1шт.

2

K965285

SHIM,2.75mm Thk

(Carraro 100159) 2.75mm Thk

1шт.

2

K965286

SHIM,2.85mm Thk

(Carraro 98424) 2.80mm Thk

1шт.

2

K965287

SHIM,2.85mm Thk

(Carraro 100160) 2.85mm Thk

1шт.

2

K965288

SHIM,2.90mm Thk

(Carraro 98244) 2.90mm Thk

1шт.

2

K965289

SHIM,2.95mm Thk

(Carraro 100161) 2.95mm Thk

1шт.

2

K965290

SPACER

SHIM - 3.0 MM (Carraro 98239)

1шт.

2

K965291

SHIM,3.05mm Thk

(Carraro 100162) 3.05mm Thk

1шт.

2

K965292

SHIM,3.10mm Thk

(Carraro 98240) 3.10mm Thk

1шт.

2

K965293

SHIM,3.15mm Thk

(Carraro 100163) 3.15mm Thk

1шт.

2

K965294

SHIM,3.20mm Thk

(Carraro 98241) 3.20mm Thk

1шт.

2

K965295

SHIM,3.25mm Thk

(Carraro 100164) 3.25mm Thk

1шт.

2

K965296

SHIM,3.30mm Thk

(Carraro 98242) 3.30mm Thk

1шт.

2

K965297

SHIM,3.35mm Thk

(Carraro 100165) 3.35mm Thk

1шт.

2

K965298

SHIM,3.40mm Thk

(Carraro 98243) 3.40mm Thk

1шт.

3

K965357

BEARING

- pinion (Carraro 27406)

1шт.

4

K260165

BUSHING

SPACER - bearing (Carraro 100928)

1шт.

5

K965358

BEARING

- pinion (Carraro 27337)

1шт.

6

K965362

LOCK NUT

LOCKNUT - M40 (Carraro 23321)

1шт.

7

K965361

OIL SEAL,35mm ID x 55mm OD x 10mm Thk

OIL SEAL - (Carraro 25372)

1шт.

8

K965364

GASKET

- flange (Carraro 96932)

1шт.

9

K260164

FLANGE

- pinion and anchor, (Carraro 98637), Serial Range: -11210996

1шт.

9

K260526

FLANGE

- pinion and anchor (Carraro 102509), Start Serial: 11210996

1шт.

10

K260163

PIN

DOWEL - (Carraro 79582)

1шт.

11

K965360

LOCK WASHER,M8

WASHER - lock, 8 MM (Carraro 22856)

5шт.

12

K260162

SCREW

SETSCREW - M8 x 40 MM (Carraro 20790)

5шт.

13

K260160

COUPLING, BREAK AWAY

COUPLING SLEEVE - driveshaft (Carraro 101861/1)

2шт.

14

K260171

SPRING

PIN - (Carraro 24453)

2шт.

15

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

GREASE FITTING - (Carraro 24210)

2шт.

16

K260161

DRIVE SHAFT

DRIVESHAFT - axle (Carraro 108212)

1шт.

17

K260174

BUSHING

SPACER - support (Carraro 108238)

1шт.

18

K260175

SUPPORT

BEARING AND HOUSING - driveshaft (Carraro 27700)

1шт.

19

K260168

SCREW

SETSCREW - (Carraro 21484)

4шт.

20

K260173

SPRING

WASHER - lock (Carraro 22917)

4шт.

21

K260172

WASHER

SPACER - (Carraro 23159)

2шт.

22

K260166

GUARD

FRONT GUARD - driveshaft (Carraro 108234)

1шт.

23

K965420

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

SETSCREW - M8 x 20 MM (Carraro 20778)

6шт.

24

K260169

SCREW

SETSCREW - M8 (Carraro 21462)

2шт.

25

K965360

LOCK WASHER,M8

WASHER - lock, 8 MM (Carraro 22856)

8шт.

26

K965421

WASHER

- 8 MM (Carraro 23109)

8шт.

27

K260167

GUARD

REAR GUARD - driveshaft (Carraro 108235)

1шт.
