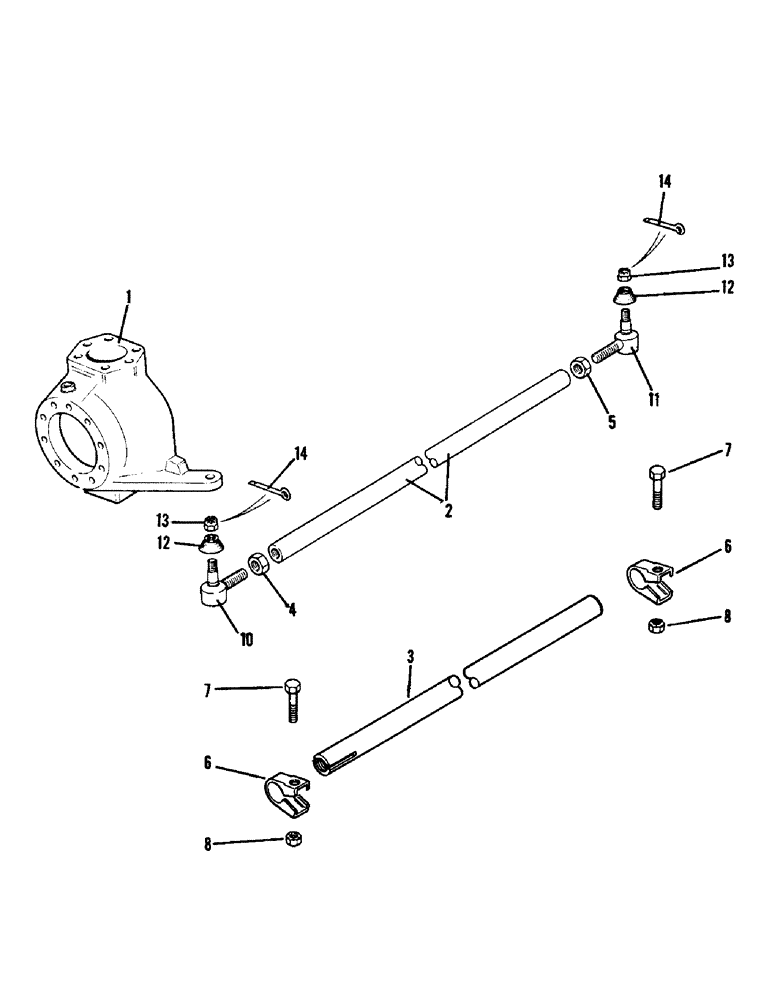

Запчасти Case IH 1690 (G03-3) - FRONT AXLE TRACK ROD, MFD MODEL (04) - FRONT AXLE

1

REF

INSTRUCTION

HOUSING - stub axle (See figure G3-1)

1шт.

2

K260280

ROD

TRACK ROD - axle (Carraro 102254), Serial Range: -11213840

1шт.

3

K205148

ROD

TRACK ROD - axle (Carraro 114853), Start Serial: 11213840

1шт.

4

K260252

LOCK NUT

LOCKNUT - left-hand (Carraro 93925), Serial Range: -11213840

1шт.

5

K260253

LOCK NUT

LOCKNUT - right-hand (Carraro 93924), Serial Range: -11213840

1шт.

6

K205147

CLAMP

- rod end (Carraro 114840), Start Serial: 11213840

2шт.

7

K205151

CLAMP

BOLT - M16 x 65

2шт.

8

K260157

NUT

- lock, 16 MM

2шт.

10

K260250

BALL JOINT

END - track rod, left-hand (Carraro 88759)

1шт.

K260254 AND K260250 CARRARO HAS MADE A CHANGE ON THIS BALL JOINT'S. IN PARTS BOOKS AND PRINT, THIS SHOWS A HOLE WHERE A COTTER PIN GOES THRU TO HOLD ON A NUT. THIS HOLE HAS BEEN REMOVED AND NO LONGER REQUIRES THE PIN. THE BALL JOINTS RECEIVED WITHOUT A HOLE REQUIRES A NEW LOCKING NUT (#102894A1).

1шт.

11

K260254

BALL JOINT

END - track rod, right-hand (Carraro 87031)

1шт.

K260254 AND K260250 CARRARO HAS MADE A CHANGE ON THIS BALL JOINT'S. IN PARTS BOOKS AND PRINT, THIS SHOWS A HOLE WHERE A COTTER PIN GOES THRU TO HOLD ON A NUT. THIS HOLE HAS BEEN REMOVED AND NO LONGER REQUIRES THE PIN. THE BALL JOINTS RECEIVED WITHOUT A HOLE REQUIRES A NEW LOCKING NUT (#102894A1).

1шт.

12

K260256

SEAL

COVER - rubber (Carraro 43962)

2шт.

13

K260251

NUT

- slotted (Carraro 22357)

2шт.

14

K260255

PIN

- cotter (Carraro 25575)

2шт.
