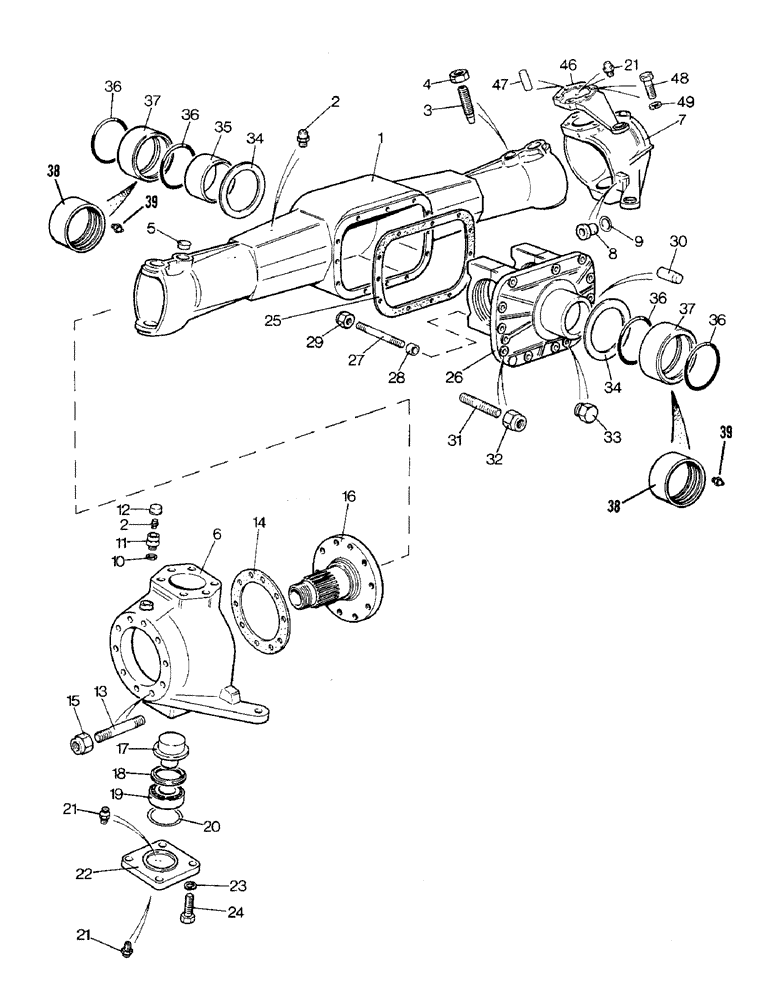

Запчасти Case IH 1690 (G03-1) - FRONT AXLE, MFD MODEL (04) - FRONT AXLE

1

K260134

SHAFT

AXLE CASE - front (Carraro 96915)

1шт.

2

K965231

BREATHER

- axle case (Carraro 104988)

3шт.

3

K965232

BOLT,M10 x 1.25 x 35mm, Cl 10.9

LOCATING SCREW - M14 (Carraro 95952)

4шт.

4

905238R1

THIN NUT,M14 x 2, Thin

(Carraro 22125) M14 x 2, Thin

4шт.

5

K260135

PLUG

DUST PLUG - (Carraro 107811)

4шт.

6

K260139

HOUSING

- stub axle, left-hand (Carraro 104824)

1шт.

7

K260140

SHAFT

HOUSING - stub axle, right-hand (Carraro 104828)

1шт.

8

K260154

STOP

- steering (Carraro 101040)

2шт.

9

K260155

SHIM,1.0mm Thk

(Carraro 101043) 1.0mm Thk

1шт.

9

K260156

SHIM,0.5mm Thk

(Carraro 101044) 0.5mm Thk

1шт.

10

K260138

WASHER

- (Carraro 23268)

2шт.

11

K260137

BLEEDER

RETAINER - (Carraro 107610)

2шт.

12

K260136

COVER

- (Carraro 30055)

2шт.

13

K260144

STUD

- (Carraro 83807)

20шт.

14

K260143

GASKET

- stub axle (Carraro 97176)

2шт.

15

K965250

NUT

- M14, self-locking (Carraro 22429)

20шт.

16

K260142

SHAFT

STUB AXLE - housing (Carraro 104100)

2шт.

17

K260145

PIN

BEARING PIN - (Carraro 88404)

2шт.

18

K260146

BAFFLE

SEAL - oil (Carraro 88986/1)

2шт.

19

K965358

BEARING

- (Carraro 27337)

2шт.

20

K260147

SPACER

SHIM - 0.1 MM (Carraro 98817)

1шт.

20

K260148

SHIM,0.3mm Thk

(Carraro 98818) 0.3mm Thk

1шт.

20

K260149

SHIM,0.5mm Thk

(Carraro 98819) 0.5mm Thk

1шт.

21

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

GREASE FITTING - (Carraro 24210)

4шт.

22

K260150

COVER

- (Carraro 102755)

3шт.

23

K260151

LOCK WASHER,M18

WASHER - lock, 18 MM (Carraro 22865)

12шт.

24

K260152

SCREW

SETSCREW - M18 x 55 (Carraro 21207)

12шт.

25

K260141

GASKET

- axle case (Carraro 97136)

1шт.

26

K260159

HOUSING

END PLATE - axle case (Carraro 100930/1)

1шт.

27

K260158

STUD

- (Carraro 97138)

4шт.

28

K260153

RING

DOWEL - (Carraro 94205)

4шт.

29

K260157

NUT

- self-locking (Carraro 22440)

4шт.

30

K965252

PIN

DOWEL - (Carraro 87660)

1шт.

31

K965253

STUD

- M12 x 53 MM (Carraro 96931)

10шт.

32

905834R1

THIN NUT,M12 x 1.25, Thin

self-locking (Carraro 22414) M12 x 1.25, Thin

10шт.

33

K965263

PLUG

- (Carraro 92269)

2шт.

34

K965264

WASHER

THRUST WASHER - (Carraro 83352)

1шт.

35

K965266

BUSHING

SLEEVE - (Carraro 101565/1)

1шт.

36

K965267

O-RING,0.07" Thk x 4.489" ID

SEALING RING - (Carraro 28103)

4шт.

37

K965756

BEARING

BUSHING - trunnion, nylon, (Carraro 104775), Serial Range: -11213086

2шт.

37a

K9655265

BUSHING steel

1шт.

38

K205142

BUSHING

- trunnion (Carraro 101575/1), Start Serial: 11213086

2шт.

39

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

FITTING - grease (Carraro 24210) (Used with K205142 bushing)

2шт.

46

K260248

LEVER

STEERING ARM - axle, (Carraro 104554), Serial Range: -11210996

1шт.

46

K260532

LEVER

STEERING ARM - axle (Carraro 102508), Start Serial: 11210996

1шт.

47

K260249

DOWEL

- (Carraro 88408)

2шт.

48

K260247

BOLT

- M18 (Carraro 21208)

4шт.

49

K260151

LOCK WASHER,M18

WASHER - lock, 18 MM (Carraro 22865)

4шт.
