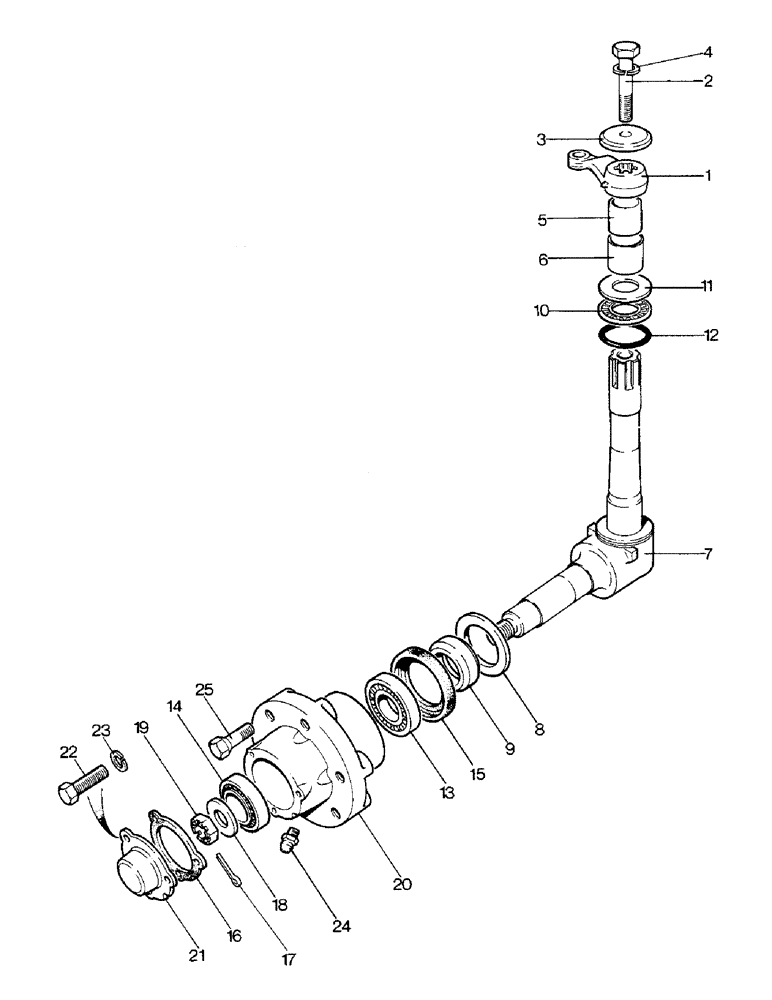

Запчасти Case IH 1690 (G01-1) - STUB AXLES AND FRONT HUBS (04) - FRONT AXLE

1

K942943

LEVER

STEERING LEVER - use with center beam K956665 or K957287

2шт.

1

K204346

LEVER

STEERING LEVER - use with center beam K957287

2шт.

2

K601240

BOLT

- 5/8 UNC x 3-1/4"

2шт.

3

K15595

WASHER

- 5/8", special

2шт.

4

K19485

WASHER

- lock, 5/8"

2шт.

5

K621331

BUSHING

- upper, beam extension

2шт.

6

K621367

BUSHING

- lower, beam extension

2шт.

7

K962019

STEERING KNUCKLE

AXLE ASSEMBLY - stud, Includes Ref. 8 and 9

2шт.

8

K910429

SPACER

EXCLUDER - dirt

1шт.

9

K910428

RING RACE

SEAL - oil

1шт.

10

K962325

SHAFT

THRUST BEARING - stub axle

2шт.

11

K626859

BEARING WASHER,44.5mm ID x 63.25mm OD x 1.6mm Thk

WASHER - thrust bearing

4шт.

12

K24764

O-RING

- 2-5/8", ID

2шт.

K962986

SEAL

BEARING AND SEAL PACK - stub axle, Includes Ref. 13 - 15

2шт.

13

K19186

BEARING, ROLLER

TAPER ROLLER BEARING - inner

1шт.

14

K19085

TAPERED BEARING,38.1mm ID x 72.02mm OD x 17.02mm W

TAPER ROLLER BEARING - outer

1шт.

15

K623419

OIL SEAL

OIL SEAL - 2-3/4 x 3-3/4 x 1/2"

1шт.

16

K15344

GASKET,0.25mm Thk

- hub cap, Includes Ref. 17

1шт.

17

K623603

PIN

SPLIT PIN - 5/32 x 1-1/8"

1шт.

18

K626673

WASHER

- 3/4", special

2шт.

19

K617157

NUT

SLOTTED NUT - 3/4 UNF

2шт.

20

K916377

HUB

- front

2шт.

21

K908913

CAP

- hub

2шт.

22

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 5/8"

6шт.

23

K19481

SPRING WASHER

WASHER - lock, 5/16"

6шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

25

K600875

BOLT

WHEEL BOLT - 1/2 UNC x 1-7/8"

12шт.
