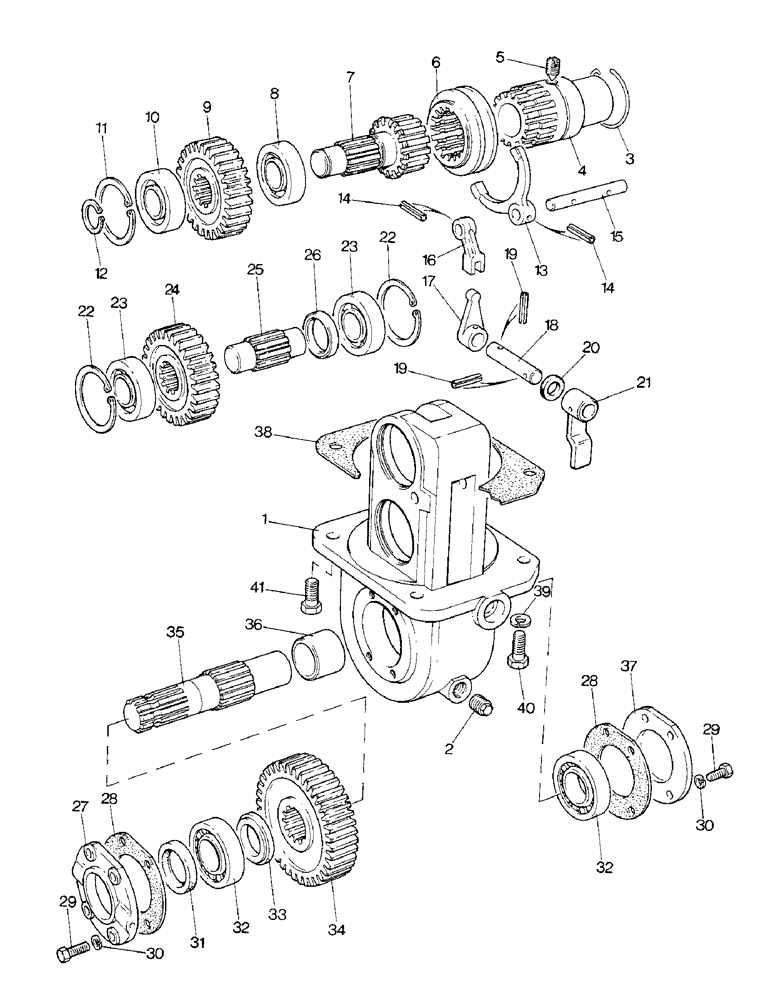

Запчасти Case IH 1690 (D16-1) - TRANSFER GEARBOX, MFD MODEL (03) - POWER TRAIN

K205139

GEARBOX ASSY

GEARBOX ASSEMBLY - transfer (Carraro 108193), Includes Ref. 1 - 16

1шт.

1

K260275

PRODUCT GRAPHIC

CASE - (Carraro 106556)

1шт.

2

A156873

PLUG, DRAIN,M22 x 1.5

(Carraro 92270) (Replaces K965379) M22 x 1.5

1шт.

3

K965760

SPRING

O-RING - (Carraro 108169)

1шт.

4

K260262

SPLINED COUPLING

DRIVE COUPLING - (Carraro 108192)

1шт.

5

K260742

SCREW

- drive coupling (Carraro 110550)

1шт.

6

K965395

CLUTCH

DOG CLUTCH - (Carraro 97192)

1шт.

7

K260270

PINION

DRIVESHAFT - (Carraro 110185)

1шт.

8

K965408

BALL BEARING

- (Carraro 25808)

1шт.

9

K260271

PINION

DRIVE GEAR - (Carraro 106583)

1шт.

10

K965401

BALL BEARING

- (Carraro 25857)

1шт.

11

K965403

RING, SNAP

RING - snap, (Carraro 24913)

1шт.

12

K965402

RING, SNAP

RING - snap, (Carraro 24785)

1шт.

13

K260263

SELECTOR

FORK - selector (Carraro 105807)

1шт.

14

K965842

PIN

SPRING PIN - 5 x 26 MM (Carraro 24437)

2шт.

15

K260264

SELECTOR

SHAFT - selector fork (Carraro 106579)

1шт.

16

K260265

SELECTOR

JAW - selector (Carraro 105806)

1шт.

K260756

SHAFT

AND LEVER - welded assembly (Carraro 112591), Includes Ref. 17 - 26

1шт.

17

K260266

SELECTOR

LEVER - selector (Carraro 106578)

1шт.

18

K260267

SELECTOR

SHAFT - selector (Carraro 106213)

1шт.

19

K965376

SPLIT PIN/SAFETY PIN

SPRING PIN - 6 x 35 MM (Carraro 24442)

2шт.

20

K965377

OIL SEAL

OIL SEAL - (Carraro 25107)

1шт.

21

K260279

LEVER

OPERATING LEVER - (Carraro 110184)

1шт.

22

K965403

RING, SNAP

RING - snap, (Carraro 24913)

2шт.

23

K965401

BALL BEARING

- (Carraro 25857)

2шт.

24

K260271

PINION

INTERMEDIATE GEAR - (Carraro 106583)

1шт.

25

K965389

SHAFT

INTERMDIATE SHAFT - (Carraro 105359)

1шт.

26

K260277

COLLAR

SPACER - (Carraro 106580)

1шт.

27

K965397

COVER

FRONT PLATE - (Carraro 89275)

1шт.

28

K965398

GASKET

- end plates (Carraro 88830), Includes Ref. 29 - 41

2шт.

29

K965359

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

SETSCREW - M8 x 25 (Carraro 20781)

8шт.

30

K965360

LOCK WASHER,M8

WASHER - lock, 8 MM (Carraro 22856)

8шт.

31

K965399

OIL SEAL

OIL SEAL - (Carraro 25156)

1шт.

32

K965406

ROLLER BEARING

- (Carraro 27544)

2шт.

33

K260278

COLLAR

SPACER - front (Carraro 104839)

1шт.

34

K260272

GEAR

DRIVEN GEAR - (Carraro 105803)

1шт.

35

K260273

SHAFT

OUTPUT SHAFT - (Carraro 106581)

1шт.

36

K965409

SHAFT

SPACER - rear (Carraro 105357)

1шт.

37

K965396

COVER

REAR PLATE - (Carraro 89244)

1шт.

38

K260274

GASKET

- (Carraro 106593)

1шт.

Use K260755 for repairs

1шт.

39

K260268

LOCK WASHER,M16

WASHER - lock, (Carraro 22864)

1шт.

40

K260269

BOLT

SETSCREW - (Carraro 21475)

3шт.

41

K260276

PIN

SETSCREW - (Carraro 106594)

1шт.
