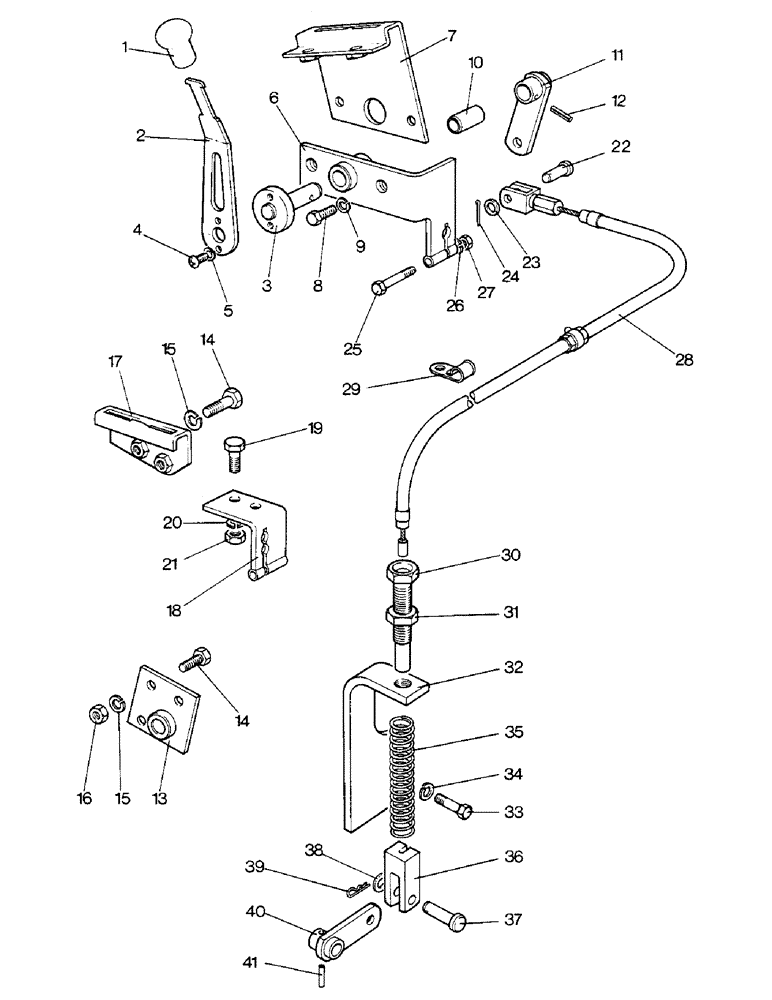

Запчасти Case IH 1690 (D15-1) - ENGAGEMENT LEVER, MFD HIGH PLATFORM, CAB, MFD LOW PROFILE (03) - POWER TRAIN

1

K901738

KNOB

- hand lever

1шт.

2

K204911

SELECTOR

LEVER - hand

1шт.

3

K952257

SHAFT

- hand lever

1шт.

4

K605632

SCREW

- 1/4 UNC x 3/8"

2шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

6

K202792

PIN

SUPPORT BRACKET - hand lever (MFD Low Profile)

1шт.

7

K202676

PLATE

GATE - lever (MFD Low Profile)

1шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

SETSCREW - M6 x 20 (MFD Low Profile)

2шт.

9

K651848

WASHER

- lock, 8 MM (MFD Low Profile)

2шт.

10

K628759

BUSHING

- shaft

2шт.

11

K952260

LEVER

- operating

1шт.

12

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

13

K303119

PLATE

BRACKET - hand lever (MFD High Platform, Cab)

1шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8 (MFD High Platform, Cab)

3шт.

15

K651848

WASHER

- lock, 8 MM (MFD High Platform, Cab)

3шт.

16

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10 (MFD High Platform, Cab)

1шт.

17

K202875

BRACKET

- lever (MFD High Platform, Cab)

3шт.

18

K202876

BRACKET

ANCHOR BRACKET - cable (MFD High Platform, Cab)

1шт.

19

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

BOLT - 5/16 UNC x 3/4" (MFD High Platform, Cab)

2шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, (MFD High Platform, Cab) 5/16"

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

(MFD High Platform, Cab) 5/16"-18, G5

2шт.

22

K625941

PIN

CLEVIS PIN - 5/16 x 7/8"

1шт.

23

K626682

WASHER

- 5/16"

1шт.

24

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

25

K600154

BOLT

- 1/4 UNC x 1-3/4" (MFD Low Profile)

1шт.

25

K600152

BOLT

- 1/4 UNC x 2" (MFD High Platform, Cab)

1шт.

26

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

27

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

28

K200983

CABLE

- inner and outer

1шт.

29

K15518

CLAMP

CLIP - cable

1шт.

30

K200610

NUT

ADJUSTER - 5/8 UNC

1шт.

31

25-410

LOCKNUT - 5/8 UNC

1шт.

32

K202707

BRACKET

ANCHOR BRACKET - cable adjuster

1шт.

33

K650643

BOLT

- M8 x 25

2шт.

34

K651848

WASHER

- lock, 8 MM

2шт.

35

K625098

SPRING

- return

1шт.

36

K622207

FORK

END - cable

1шт.

37

K69984

SPLIT PIN/SAFETY PIN

CLEVIS PIN - 3/8 x 1-5/16"

1шт.

38

K19472

WASHER

- 3/8"

1шт.

39

K950865

CLIP

- retaining

1шт.

40

K260279

LEVER

OPERATING LEVER - transfer box

1шт.

41

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.
