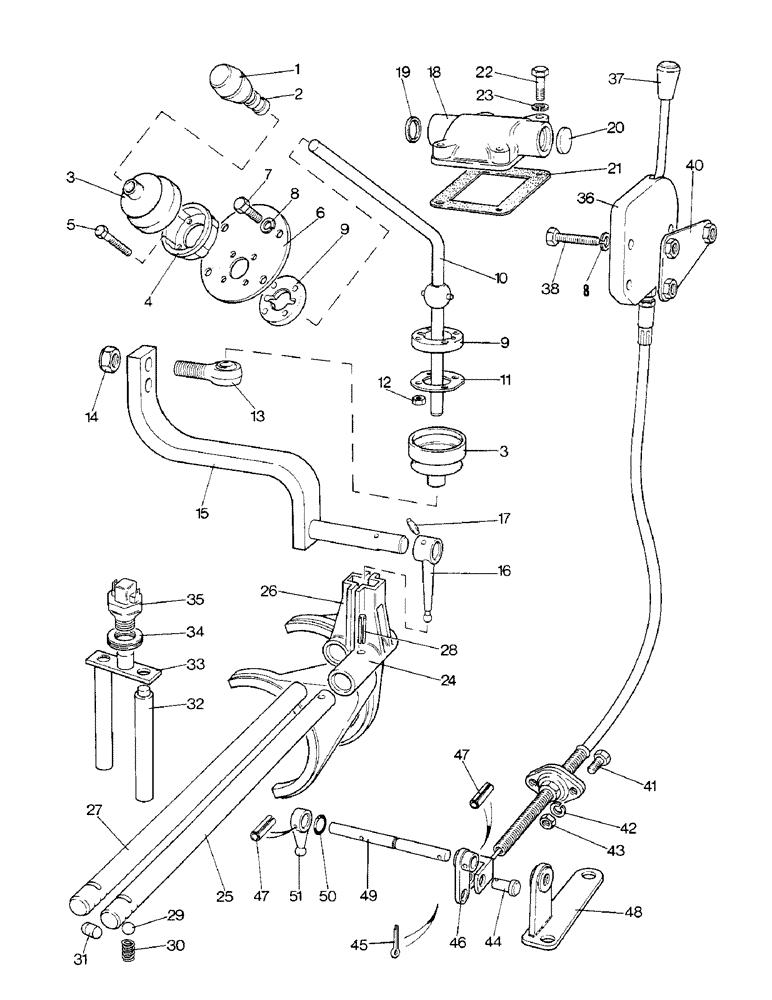

Запчасти Case IH 1690 (D14-3) - PWR SHIFT GEAR SHIFT LEVERS - HIGH PLATFORM, S/N 11211671 & AFT - PWR SHIFT CAB MODEL 11211267 & AFT (03) - POWER TRAIN

1

K203121

BALL KNOB

KNOB - range lever

1шт.

2

K628474

RING

RETAINER - knob

1шт.

3

K204741

BELLOWS

COVER - lever

2шт.

4

K205234

RETAINER

- upper gaiter

1шт.

5

61-424

HEX SOC SCREW,1/4"-20 x 1 1/2"

BOLT - 1/4 UNC x 1-1/2" (Replaces K606508)

4шт.

6

K204803

PLATE

- lever

1шт.

7

K650643

BOLT

- M8 x 25

4шт.

8

K651848

WASHER

- lock, 8 MM

7шт.

9

K204810

HOUSING

- ball (Replaces K202810)

2шт.

10

K204768

SELECTOR

LEVER - range

1шт.

11

K204742

PLATE

RETAINER - lower gaiter

1шт.

12

K607300

NUT

LOCKNUT - 1/4 UNC

4шт.

13

K204680

ROD

BALL JOINT - lever

1шт.

174

131-377

LOCK NUT,5/8"-11, GC

LOCKNUT - ball joint

1шт.

15

K204767

SHAFT

AND ARM - selector

1шт.

16

K202079

SELECTOR

LEVER - selector

1шт.

17

K623778

PIN, GROOVED

PIN - 5/16 x 1-1/2"

1шт.

18

K950243

HOUSING

- shaft and arm

1шт.

19

K628875

O-RING

- shaft

1шт.

20

K623810

PLUG

CORE PLUG

1шт.

21

K950543

GASKET,0.2mm Thk

- housing

1шт.

22

K600365

BOLT

- 5/16 UNC x 1-1/2"

4шт.

23

K19481

SPRING WASHER

WASHER - lock, 5/16"

4шт.

24

K917217

SELECTOR

FORK - range 1 and 3

1шт.

25

K917216

SELECTOR

ROD - ranges 1 and 3

1шт.

26

K917219

SELECTOR

FORK - ranges 2 and reverse

1шт.

27

K917218

SELECTOR

ROD - ranges 2 and reverse

1шт.

28

K623887

PIN,5.21mm OD x 25.4mm L

- 3/16 x 1"

2шт.

29

K13506

BALL

STEEL BALL - 3/8" diameter

4шт.

30

K13507

SPRING

- detent ball

2шт.

31

K30430

LOCKING DEVICE

LOCK - gear

1шт.

32

K945208

PLUNGER

- safety switch

1шт.

33

K945204

PLUNGER

AND PLATE - safety switch

1шт.

34

K626895

SHIM,.002" Thk

1шт.

34

K626858

SHIM,.005" Thk

1шт.

34

K626894

SHIM,.010" Thk

1шт.

35

K200652

NEUTRAL START SWITCH

SAFETY SWITCH - starter

1шт.

36

K203845

CABLE

LEVER AND CABLE - hydra-shift

1шт.

37

K206067

KNOB

- control lever

1шт.

38

K650649

BOLT

SETSCREW - M8 x 55

3шт.

40

K302209

PLATE

BACKPLATE - lever

1шт.

41

K652475

SCREW

SETSCREW - M6 x 16

2шт.

42

K651847

WASHER, LOCK

WASHER - lock, 6 MM

2шт.

43

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

44

K14227

PIN

CLEVIS PIN - 3/8 x 1-1/16"

1шт.

45

K623607

PIN

SPLIT PIN - 3/32 x 3/4"

1шт.

46

K203049

LEVER

- selector

1шт.

47

K623729

PIN

- 3/16 x 3/4"

2шт.

48

K203050

BRACKET

- spindle

1шт.

49

K203048

SELECTOR

SPINDLE - selector

1шт.

50

K24554

O-RING

- spindle

1шт.

51

K201835

SELECTOR

LEVER - spool valve

1шт.
