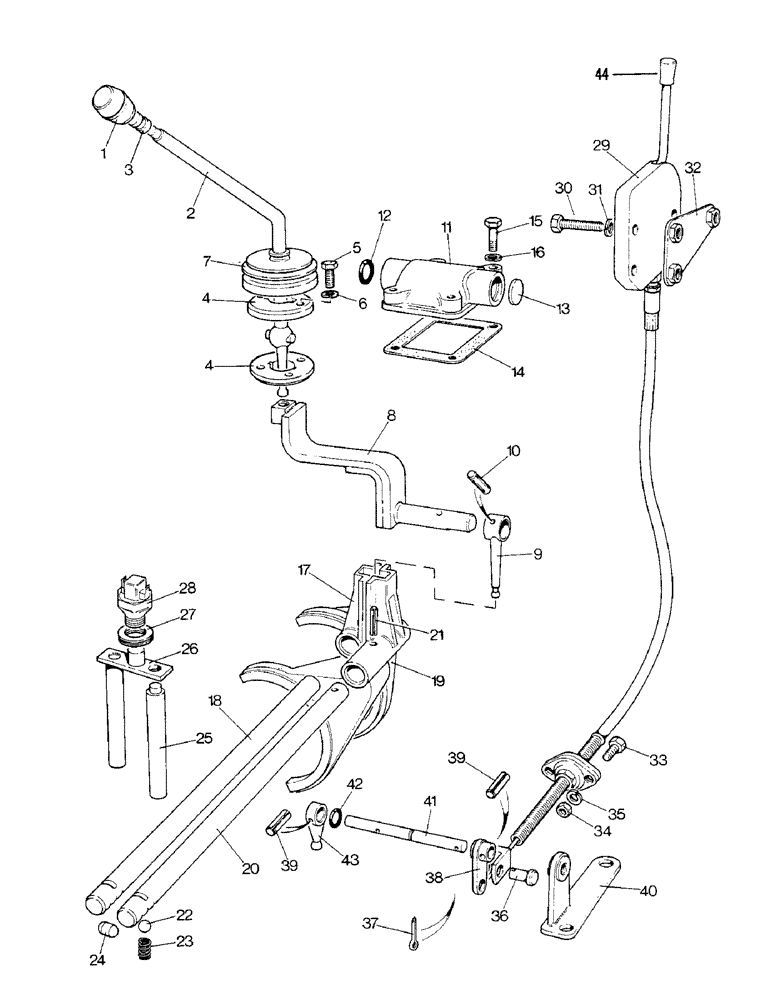

Запчасти Case IH 1690 (D14-1) - POWER SHIFT GEAR SHIFT LEVERS - HIGH PLATFORM, BEFORE S/N 11211671 - CAB MODEL, BEFORE S/N 11211267 (03) - POWER TRAIN

1

K203121

BALL KNOB

KNOB - lever

1шт.

2

K204768

SELECTOR

LEVER - range (Replaces K260540)

1шт.

K260540 is a Kit to modify the Lever.

1шт.

3

K628474

RING

- retaining

1шт.

4

K202615

BALL

HOUSING - ball

2шт.

5

K602737

SCREW

SETSCREW - 1/4 UNC x 1"

2шт.

6

K626341

SPRING WASHER

WASHER - lock, 1/4"

2шт.

7

K301317

COVER

GAITER - lever

1шт.

8

K203440

SELECTOR

SHAFT AND LEVER - shifter

1шт.

9

K202079

SELECTOR

LEVER - selector

1шт.

10

K623778

PIN, GROOVED

PIN - 5/16 x 1-1/2"

1шт.

11

K950243

HOUSING

- shaft

1шт.

12

K623630

SEAL

O-RING - 7/8" internal diameter

1шт.

13

K623810

PLUG

CORE PLUG - 1"

1шт.

14

K950543

GASKET,0.2mm Thk

- housing

1шт.

15

K600365

BOLT

- 5/16 UNC x 1-1/2"

4шт.

16

K19481

SPRING WASHER

WASHER - lock, 5/16"

4шт.

17

K917217

SELECTOR

FORK - first and third range

1шт.

18

K917216

SELECTOR

ROD - first and third range

1шт.

19

K917219

SELECTOR

FORK - second and reverse range

1шт.

20

K917218

SELECTOR

ROD - second and reverse range

1шт.

21

K623887

PIN,5.21mm OD x 25.4mm L

- 3/16 x 1"

2шт.

22

K13506

BALL

STEEL BALL - 3/8"

4шт.

23

K13507

SPRING

2шт.

24

K30430

LOCKING DEVICE

LOCK - gear

1шт.

25

K954208

GUIDE

PLUNGER - switch

1шт.

26

K954204

PLUNGER

AND PLATE - switch

1шт.

27

K626895

SHIM,.002" Thk

1шт.

27

K626858

SHIM,.005" Thk

1шт.

27

K626894

SHIM,.010" Thk

1шт.

28

K200652

NEUTRAL START SWITCH

SAFETY SWITCH - starter

1шт.

29

K203845

CABLE

CONTROL LEVER AND CABLE - selector

1шт.

Use K262497 Cable and K262498 Lever

1шт.

30

K652507

SCREW

SETSCREW - M8 x 55

3шт.

31

K651848

WASHER

- lock, 8 MM

3шт.

32

K302209

PLATE

BACKPLATE - lever

1шт.

33

K652475

SCREW

SETSCREW - M6 x 16

2шт.

34

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

35

K651847

WASHER, LOCK

WASHER - lock, 6MM

2шт.

36

K14227

PIN

CLEVIS PIN - 3/8 x 1-1/16"

1шт.

37

K623607

PIN

SPLIT PIN - 3/32 x 3/4"

1шт.

38

K203049

LEVER

- operating

1шт.

39

K623729

PIN

- 3/16 x 3/4"

2шт.

40

K203050

BRACKET

- locating

1шт.

41

K203048

SELECTOR

SPINDLE - selector

1шт.

42

K24554

O-RING

- 3/8", internal diameter

1шт.

43

K201835

SELECTOR

LEVER - spool valve

1шт.

44

K206067

KNOB

- control lever

1шт.
