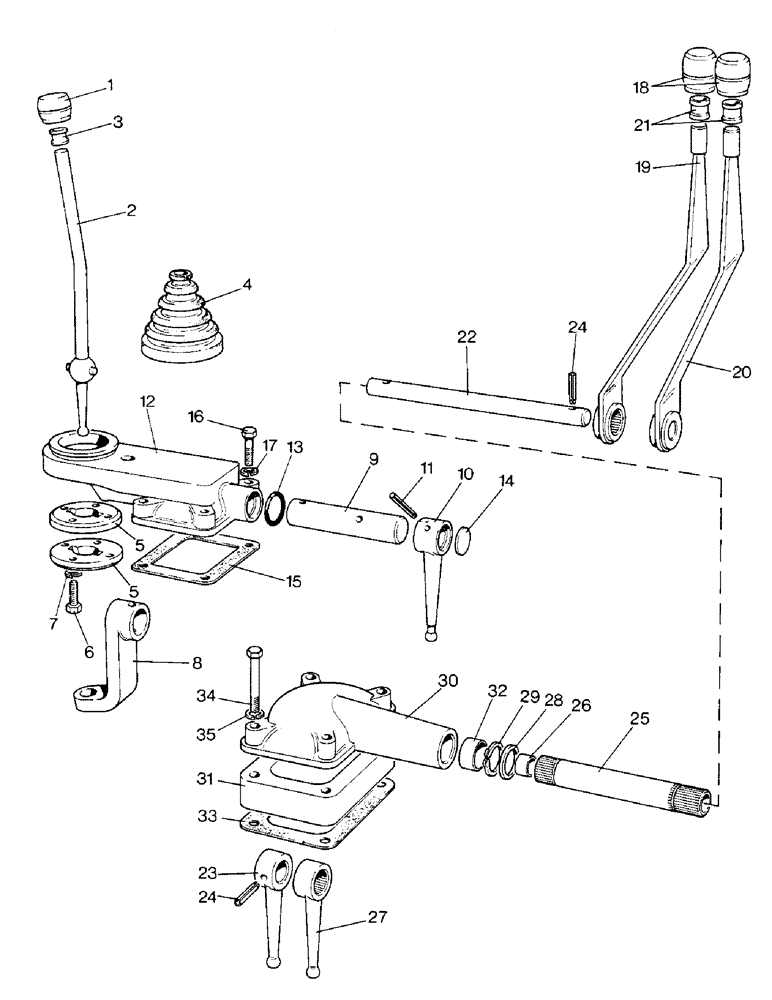

Запчасти Case IH 1690 (D11-1) - GEAR SHIFT LEVERS, SYNCHROMESH LOW PROFILE MODEL (03) - POWER TRAIN

1

K200552

KNOB

- geaar lever

1шт.

2

K200196

SELECTOR

GEAR LEVER - 1-2-3 and reverse

1шт.

3

K628472

RING

- retaining

1шт.

4

K950494

RUBBER

COVER - lever

1шт.

5

K200162

SPACER

HOUSING - ball

2шт.

6

K602739

SCREW

SETSCREW - 1/4 UNC x 1-1/8"

4шт.

7

K626341

SPRING WASHER

WASHER - lock, 1/4"

4шт.

8

K200161

LEVER

ARM - crank

1шт.

9

K200160

SHAFT

- selector

1шт.

10

K202078

SELECTOR

LEVER - selector

1шт.

11

K623778

PIN, GROOVED

PIN - 5/16 x 1-1/2"

2шт.

12

K200159

GEAR

HOUSING - lever

1шт.

13

K623630

SEAL

O-RING - 7/8" internal ID

1шт.

14

K623810

PLUG

CORE PLUG - 1"

1шт.

15

K950543

GASKET,0.2mm Thk

- housing

1шт.

16

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- 5/16 UNC x 1-1/2"

4шт.

17

K19481

SPRING WASHER

WASHER - lock, 5/16"

4шт.

18

K200239

BUTTON

KNOB - range levers

2шт.

19

K202255

LEVER

HAND LEVER - high-low range

1шт.

20

K202257

LEVER

HAND LEVER - slow-normal range

1шт.

21

K628472

RING

- retaining

2шт.

22

K200198

SHAFT

- selector

1шт.

23

K950370

SELECTOR

LEVER - selector

1шт.

24

K623925

PIN

- 1/4 x 1-1/2"

2шт.

25

K200199

SHAFT

TUBE - selector

1шт.

26

K621303

BUSHING

- tube

2шт.

27

K950371

SELECTOR

LEVER - selector

1шт.

28

K950002

BUSHING

WASHER - 1" high-low range

1шт.

29

K11128

CIRCLIP

RING - snap, 1"

2шт.

30

K950000

HOUSING

- selector lever

1шт.

31

K950754

BUSHING

SPACER - housing

1шт.

32

K628750

BUSHING

- housing shaft

1шт.

33

K950543

GASKET,0.2mm Thk

- housing

1шт.

34

K600217

BOLT

- 5/16 UNC x 3"

4шт.

35

K19481

SPRING WASHER

WASHER - lock, 5/16"

4шт.
