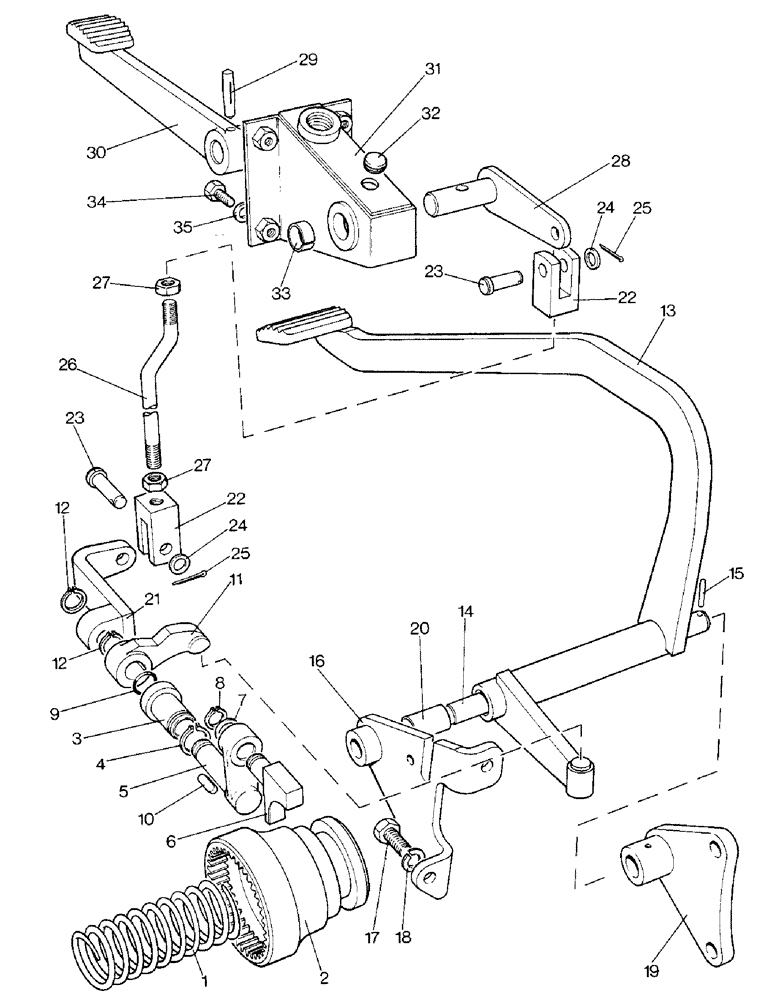

Запчасти Case IH 1690 (D10-1) - DIFFERENTIAL LOCK, HIGH PLATFORM, CAB, LOW PROFILE (03) - POWER TRAIN

1

K625119

SPRING

- return

1шт.

2

K940723

SLEEVE

- locking

1шт.

3

K903494

BUSHING

- rear axle case

1шт.

4

K34454

RING, SNAP

RING - snap, 7/8"

1шт.

5

K940724

ARM

SHAFT AND ARM - lock

1шт.

6

K940725

SELECTOR

FORK - lock

1шт.

7

K626914

WASHER

- 5/8", special

1шт.

8

K11797

RING, SNAP

RING - snap, 5/8"

1шт.

9

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- 5/8" ID

1шт.

10

K622309

KEY

- 3/16 x 5/32 x 3/4"

1шт.

11

K903228

LEVER

- dog (Low Profile)

1шт.

12

K11799

RING - snap, 5/8" (Low Profile)

1шт.

13

K203106

LOCK

PEDAL - foot (Low Profile)

1шт.

14

K203520

SHAFT

SPINDLE - pedal pivot (Low Profile)

1шт.

15

K19562

GROOVED PIN,3/16" x 1 1/4", Type A

Pin, Grooved, (Low Profile) 3/16" x 1 1/4", Type A

1шт.

16

K203087

LOCK

BRACKET - support (Low Profile)

1шт.

17

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Low Profile) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

18

K19482

SPRING WASHER

WASHER - lock, 3/8" (Low Profile)

2шт.

19

K203122

LOCK

BRACKET - support (Low Profile)

1шт.

20

K621377

BUSHING

- spindle (Low Profile)

2шт.

21

K306740

LEVER

- pivot (High Platform, Cab) (Replaces K202533)

1шт.

22

K202301

FORK

- 3/8 UNC (High Platform, Cab)

2шт.

23

K69984

SPLIT PIN/SAFETY PIN

CLEVIS PIN - 3/8 x 1-5/16" (High Platform, Cab)

2шт.

24

K19472

WASHER

- 3/8" (High Platform, Cab)

2шт.

25

K623607

PIN

SLIT PIN - 3/32 x 3/4" (High Platform, Cab)

1шт.

26

K202536

ROD

- 3/8 UNC x 17-1/4" (High Platform, Cab)

1шт.

27

280136

NUT,3/8"-16, G8

(High Platform, Cab) 3/8"-16, G8

2шт.

28

K202529

LEVER

- operator (High Platform, Cab)

1шт.

29

135-772

GROOVED PIN,5/16" x 1 1/2", Type E

Pin, Grooved, (High Platform, Cab) (Replaces K623775) 5/16" x 1 1/2", Type E

1шт.

30

K202528

PEDAL

- foot (High Platform, Cab)

1шт.

31

K202518

BRACKET

SUPPORT BRACKET - pedal (High Platform, Cab)

1шт.

32

K627742

GROMMET

PLASTIC PLUG - 1/2" (High Platform, Cab)

2шт.

33

K628754

BUSHING

- pivot (High Platform, Cab)

2шт.

34

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4" (High Platform, Cab)

2шт.

35

K19481

SPRING WASHER

WASHER - 5/16" (High Platform, Cab)

2шт.
