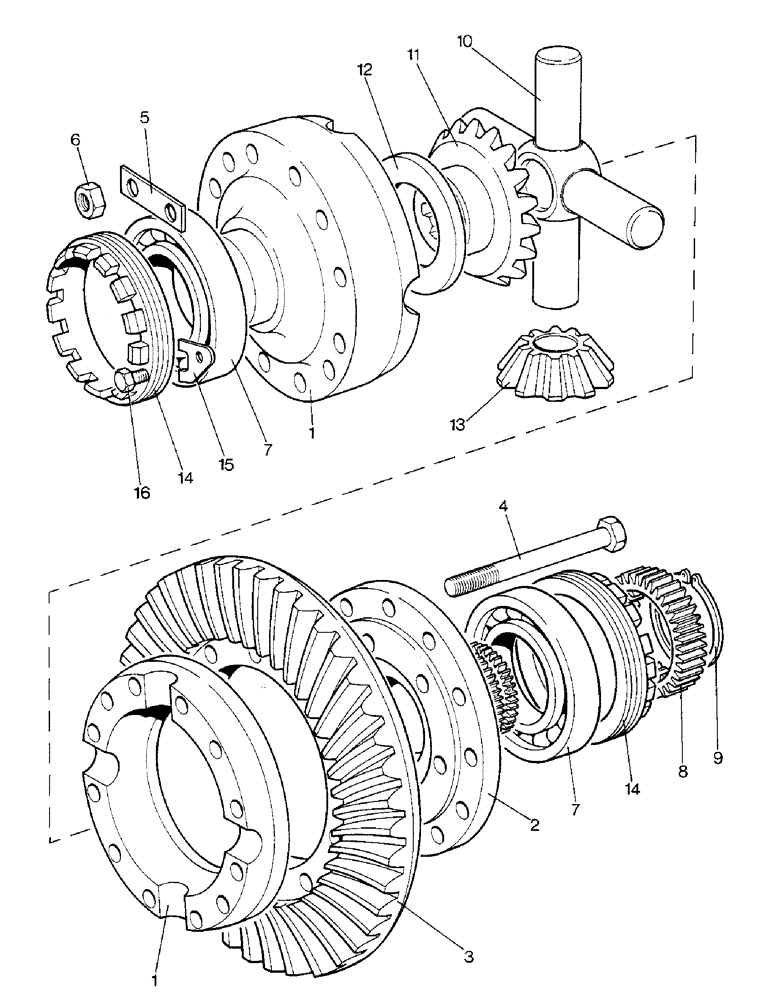

Запчасти Case IH 1690 (D09-1) - DIFFERENTIAL, SYNCHROMESH MFD, POWER SHIFT, SYNCHROMESH (03) - POWER TRAIN

1

K954322

CAGE

- differential

1шт.

2

K940718

PLATE

- end

1шт.

3

K965820

GEAR-SET

BEVEL PINION AND GEAR - synchromesh (Synchromesh)

1шт.

3

K965800

GEAR-SET

BEVEL PINION AND GEAR - hydra-shift (Power Shift)

1шт.

Should be Power shift instead of Hydra shift

1шт.

3

K965821

PINION

BEVEL PINION AND GEAR - synchromesh (Synchromesh MFD)

1шт.

4

K600825

SCREW

BOLT - 1/2 UNC x 5-3/4"

12шт.

5

K626424

WASHER

TABWASHER - bolt

6шт.

6

280431

NUT,1/2"-13, G5

12шт.

7

K19010

BALL BEARING

BEARING - ball

2шт.

8

K940722

GEAR

RING - gear

1шт.

9

K621475

RING, SNAP

RING - snap, 2-1/2"

1шт.

10

K954949

U-JOINT SPIDER

SPIDER - differential

1шт.

11

K30234

CONE PINION

WHEEL - bevel

2шт.

12

K940805

WASHER, THRUST

WASHER - thrust

2шт.

13

K942317

DIFFERENTIAL

BEVEL PINION - differential

4шт.

14

K15007

RING, LOCKING

ADJUSTER - pinion

2шт.

15

K626420

WASHER

LOCKPLATE - adjuster

2шт.

16

K602840

SCREW

SETSCREW - 5/16 UNC x 1/2"

2шт.
