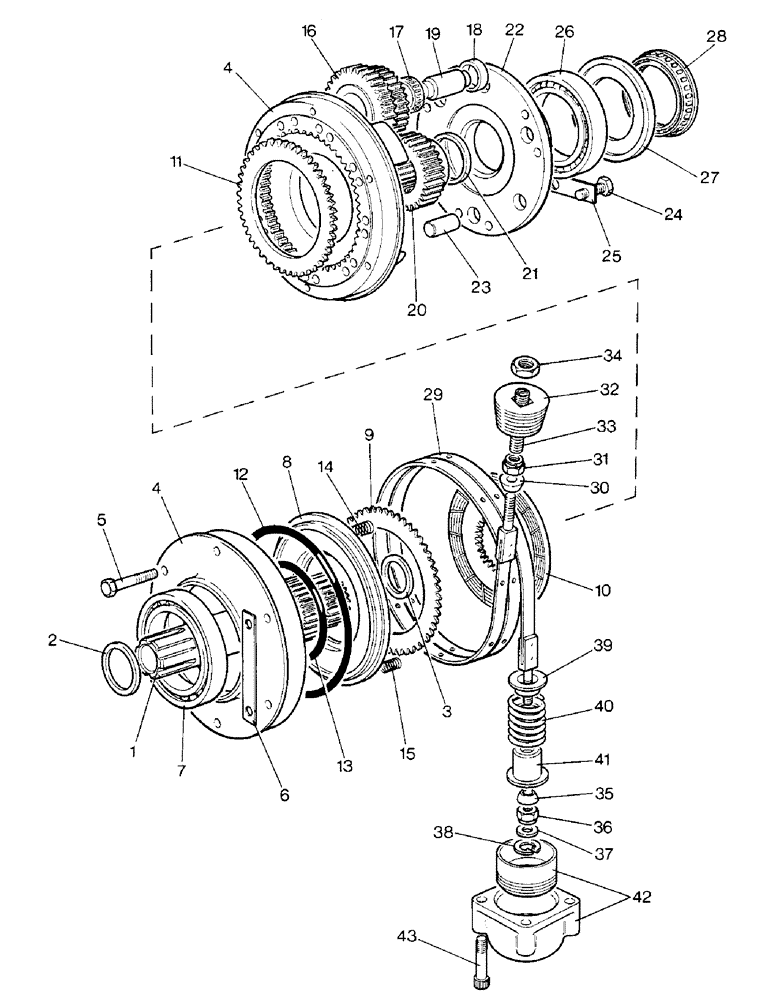

Запчасти Case IH 1690 (D06-1) - REAR PLANETARY UNIT, POWER SHIFT MODEL (03) - POWER TRAIN

1

K948486

DRIVE SHAFT

DRIVESHAFT - planetary

1шт.

2

K908509

WASHER

THRUST WASHER - front

1шт.

3

K917185

WASHER

THRUST WASHER - inner

1шт.

4

K917836

CARRIER

AND CYLINDER - planetary, Includes Ref. 5 and 6

1шт.

5

K600324

BOLT

- 5/16 UNC x 1-3/4"

6шт.

6

K626386

WASHER

TABWASHER - bolt

3шт.

7

K620082

BEARING, BALL

BEARING - ball

1шт.

8

K943958

PISTON

- carrier

1шт.

K963594

CLUTCH

PLATE PACK - selective assembly, Includes Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

CLUTCH PLATE - steel

4шт.

10

NSS

NOT SOLD SEPARAT

CLUTCH PLATE - grooved faces

3шт.

10

NSS

NOT SOLD SEPARAT

CLUTCH PLATE - plain bronze faces

1шт.

11

NSS

NOT SOLD SEPARAT

BACKING PLATE - 0.184"

1шт.

11

NSS

NOT SOLD SEPARAT

BACKING PLATE - 0.192"

1шт.

11

NSS

NOT SOLD SEPARAT

BACKING PLATE - 0.198"

1шт.

11

NSS

NOT SOLD SEPARAT

BACKING PLATE - 0.204"

1шт.

12

K623576

O-RING,6.975" ID x 7.525" OD x 0.275"

- 7" ID

1шт.

13

K623575

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

- 4" ID

1шт.

14

K929779

SPRING

- inner

9шт.

15

K13507

SPRING

- outer

18шт.

16

K965799

GEAR

PLANET GEAR - set of three

1шт.

17

K620275

BEARING, NEEDLE

ROLLER BEARING - needle, 1-1/4 x 1-5/8 x 3/4"

3шт.

17

K620277

ROLLER CAGE BEARING

ROLLER BEARING - needle, 1-1/4 x 1-5/8 x 1"

3шт.

18

K952662

WASHER, THRUST

SPACER - bearing

3шт.

19

K940290

PIN

- bearing

3шт.

20

K948488

GEAR

- sun

1шт.

21

K917186

WASHER

THRUST WASHER - rear

1шт.

22

K917838

CARRIER

END COVER - carrier

1шт.

23

K621808

PIN

DOWEL - 5/8 x 1-1/4"

3шт.

24

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

25

K626388

WASHER

TABWASHER - setscrew

3шт.

26

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

BEARING - ball

1шт.

27

K917834

PLATE

- abutment

1шт.

28

K917835

BEARING

FREE WHEEL - abutment

1шт.

29

K943410

BRAKE BAND

BAND - brake

1шт.

30

K940064

WASHER

CONICAL WASHER - 3/8"

1шт.

31

K607377

LOCK NUT

- 3/8 UNC, self-locking

1шт.

32

K623827

PLUG

TAPER PLUG - 1" BSP

1шт.

33

K946253

SCREW,1/2" - 13 x 1 3/4"

STOP SCREW - 1/2 UNC x 1-3/4", special

1шт.

34

86632558

JAM NUT,Jam, 1/2"-13, G5

LOCKNUT - 1/2 UNC

1шт.

35

K917590

WASHER

SPHERICAL WASHER - 3/8"

1шт.

36

232-1416

LOCK NUT,3/8"-16, GC

NUT - 3/8 UNC, self-locking

1шт.

37

K626314

WASHER

- 7/16"

1шт.

38

K621761

RING, SNAP

RING - snap, 7/8"

1шт.

39

K940346

STOP

- spring

1шт.

40

K625289

SPRING

- brake band

1шт.

41

K952312

SLEEVE

- spring

1шт.

42

K965766

BRAKE

PISTON AND CYLINDER - brake

1шт.

43

K600209

BOLT

- 5/16 UNC x 2"

4шт.
