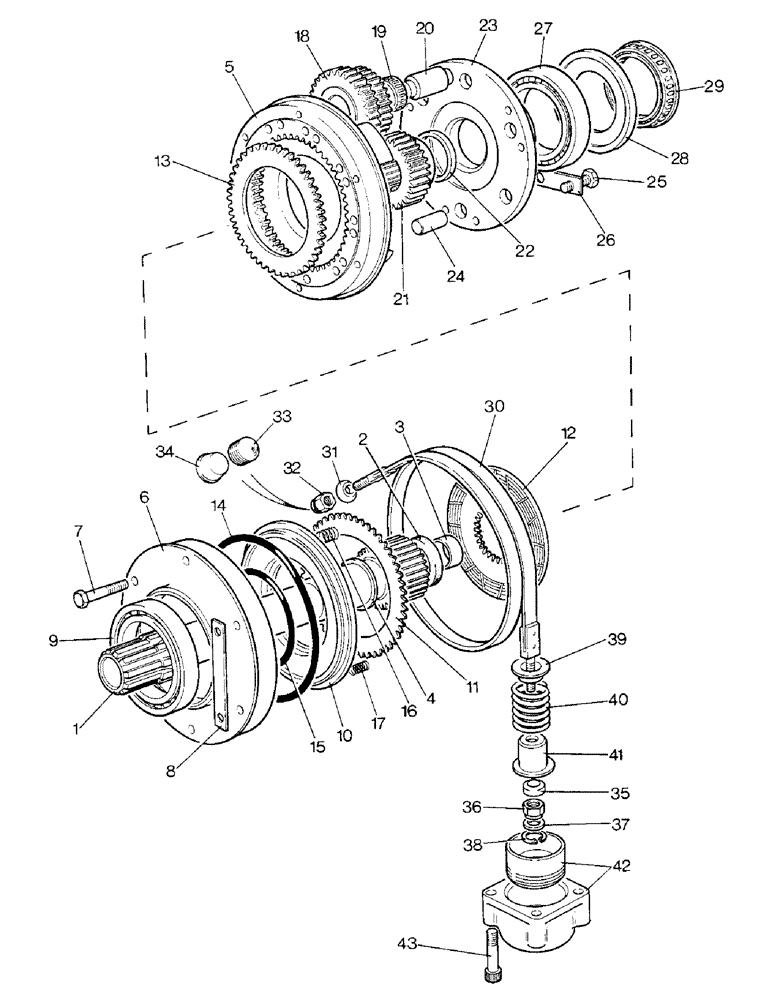

Запчасти Case IH 1690 (D05-1) - FRONT PLANETARY UNIT (03) - POWER TRAIN

1

K202092

CLUTCH

DRIVE SHAFT - clutch

1шт.

2

K623485

SEAL

OIL SEAL - 1-1/4 x 1-7/8 x 3/8"

1шт.

3

K202033

RETAINER

BUSHING - drive shaft

1шт.

4

K908509

WASHER

THRUST WASHER - front

1шт.

5

K917828

CARRIER

AND CYLINDER - planetary, Includes Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

CYLINDER - clutch

1шт.

7

K600324

BOLT

- 5/16 UNC x 1-3/4"

6шт.

8

K626386

WASHER

TABWASHER - bolt

3шт.

9

K620082

BEARING, BALL

BEARING - ball

1шт.

10

K929781

PISTON

- cylinder

1шт.

K262537

CLUTCH PACK

CLUTCH PLATE PACK - selective assembly (Replaces K963593), Includes Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

CLUTCH PLATE - steel

2шт.

12

NSS

NOT SOLD SEPARAT

CLUTCH PLATE - grooved bronze faces

2шт.

13

NSS

NOT SOLD SEPARAT

BACKING PLATE - 0.184"

1шт.

13

NSS

NOT SOLD SEPARAT

BACKING PLATE - 0.192"

1шт.

14

K623576

O-RING,6.975" ID x 7.525" OD x 0.275"

- 7" ID

1шт.

15

K623575

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

- 4" ID

1шт.

16

K929779

SPRING

- inner

6шт.

17

K13507

SPRING

- outer

18шт.

18

K965798

GEAR

PLANET GEAR - set of three

1шт.

19

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

ROLLER BEARING - needle, 1-1/4 x 1-5/8 x 3/4" (Replaces K620274)

6шт.

20

K948484

PIN

- bearing

3шт.

21

K202095

GEAR

- sun

1шт.

22

K917186

WASHER

THRUST WASHER - rear

1шт.

23

K917831

CARRIER

END COVER - carrier

1шт.

24

K621808

PIN

DOWEL - 5/8 x 1-1/4"

3шт.

25

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

26

K626388

WASHER

TABWASHER - setscrew

3шт.

27

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

BEARING - ball

1шт.

28

K917834

PLATE

- abutment

1шт.

29

K917835

BEARING

FREWHEEL - abutment

1шт.

30

K943409

BRAKE BAND

BAND - brake

1шт.

31

K940064

WASHER

CONICAL WASHER - 3/8"

1шт.

32

K607377

LOCK NUT

- 3/8 UNC, self-locking

1шт.

33

K623831

PLUG

- 1" BSP, band stop

1шт.

34

K628083

PLUG,Cap, 1.282" OD

PLASTIC PLUG - 1-1/4"

1шт.

35

K917590

WASHER

SPHERICAL WASHER - 3/8"

1шт.

36

232-1416

LOCK NUT,3/8"-16, GC

NUT - 3/8 UNC, self-locking

1шт.

37

K626314

WASHER

- 7/16"

1шт.

38

K621761

RING, SNAP

RING - snap, 7/8"

1шт.

39

K940346

STOP

- spring

1шт.

40

K625289

SPRING

- brake band

1шт.

41

K952312

SLEEVE

- spring

1шт.

42

K965766

BRAKE

PISTON AND CYLINDER - brake

1шт.

43

K606843

SCREW

BOLT - 5/16 UNC x 2"

4шт.
