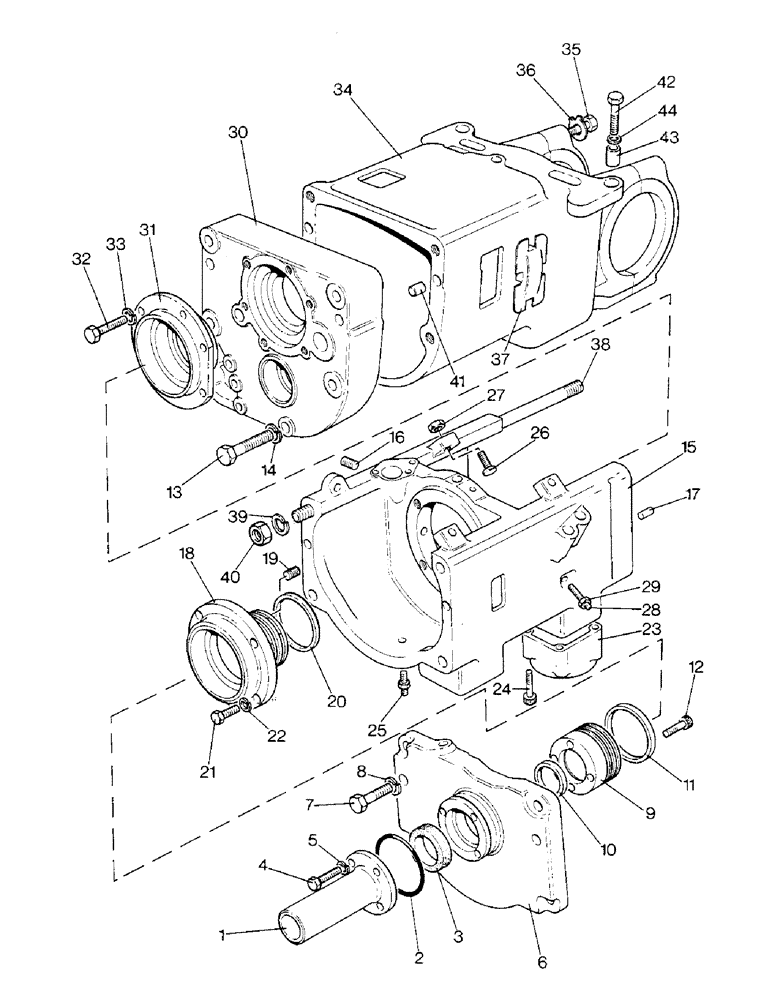

Запчасти Case IH 1690 (D04-1) - GEAR BOX CASE, POWER SHIFT MODEL (03) - POWER TRAIN

1

K200351

SUPPORT

SNOUT - support

1шт.

2

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- 2-3/4" ID

2шт.

3

K623415

SEAL

OIL SEAL - 46 x 65 x 10 MM

1шт.

4

K602737

SCREW

SETSCREWS - 1/4 UNC x 1"

4шт.

5

K626341

SPRING WASHER

WASHER - lock, 1/4"

4шт.

6

K954258

PLATE

END PLATE - front

1шт.

7

K943635

STEP BOLT

- 5/16 UNC x 2", special

2шт.

8

K19482

SPRING WASHER

WASHER - lock, 3/8"

2шт.

9

K929301

SUPPORT

SLEEVE - support

1шт.

10

K908508

BUSHING

- support sleeve

1шт.

11

K917796

RING, PISTON

RING - seal

2шт.

12

K606812

SCREW

- 1/4 UNC, self-locking

4шт.

13

K600417

BOLT

- 3/8 UNC x 3-1/4"

1шт.

14

K19482

SPRING WASHER

WASHER - lock, 3/8"

1шт.

15

K952310

BUSHING

SPACER - end plate

1шт.

16

K606021

SCREW

- 5/16 UNC x 5/16", spacer

1шт.

17

K621805

PIN

DOWEL - 3/8 x 7/8"

2шт.

18

K929300

HOUSING

- spacer

1шт.

19

K606200

SCREW

- 1/4 UNC x 1/4", housing

1шт.

20

K917796

RING, PISTON

RING - seal

2шт.

21

K626905

SETSCREW - 3/8 UNC x 1-1/8"

4шт.

22

K19482

SPRING WASHER

WASHER - lock, 3/8"

4шт.

23

K965766

BRAKE

CYLINDER AND PISTON - brake band

2шт.

24

K606843

SCREW

BOLT - 5/16 UNC x 2"

8шт.

25

K929459

SCREW

LOCATING SCREW - 5/16 UNF x 1-3/8"

2шт.

26

K929460

SCREW,5/16" - 24 x 1 3/8"

LOCATING SCREW - 5/16 UNF x 1-3/8"

4шт.

27

K617051

NUT

LOCKNUT - 5/16 UNF

6шт.

28

K929458

SCREW

LOCATING SCREW - 3/8 UNF x 1-3/4"

1шт.

29

K617052

NUT

LOCKNUT - 3/8 UNF

1шт.

30

K940299

PLATE

END PLATE - center

1шт.

31

K928480

HOUSING

- center plate

1шт.

32

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 UNC x 1/8"

6шт.

33

K19482

SPRING WASHER

WASHER - lock, 3/8"

6шт.

34

K200444

PLATE

CASE - range gearbox, Includes Ref. 35 and 36

1шт.

35

K601242

BOLT

- 5/8 UNC x 3-3/4"

4шт.

36

K626389

BEARING WASHER

TABWASHER - bolt

4шт.

37

K947189

COVER

PLATE - cover

1шт.

38

K608410

STUD

- 1/2 UNC x 17-5/8"

4шт.

39

K626345

LOCK WASHER

WASHER - lock, 1/2"

4шт.

40

280431

NUT,1/2"-13, G5

4шт.

41

K621805

PIN

DOWEL - 3/8 x 7/8"

2шт.

42

K601306

BOLT

- 5/8 UNC x 2-1/2"

2шт.

43

K920656

BUSHING

BUSHING - bolt

2шт.

44

K626239

SHIM,.010" Thk

1шт.
