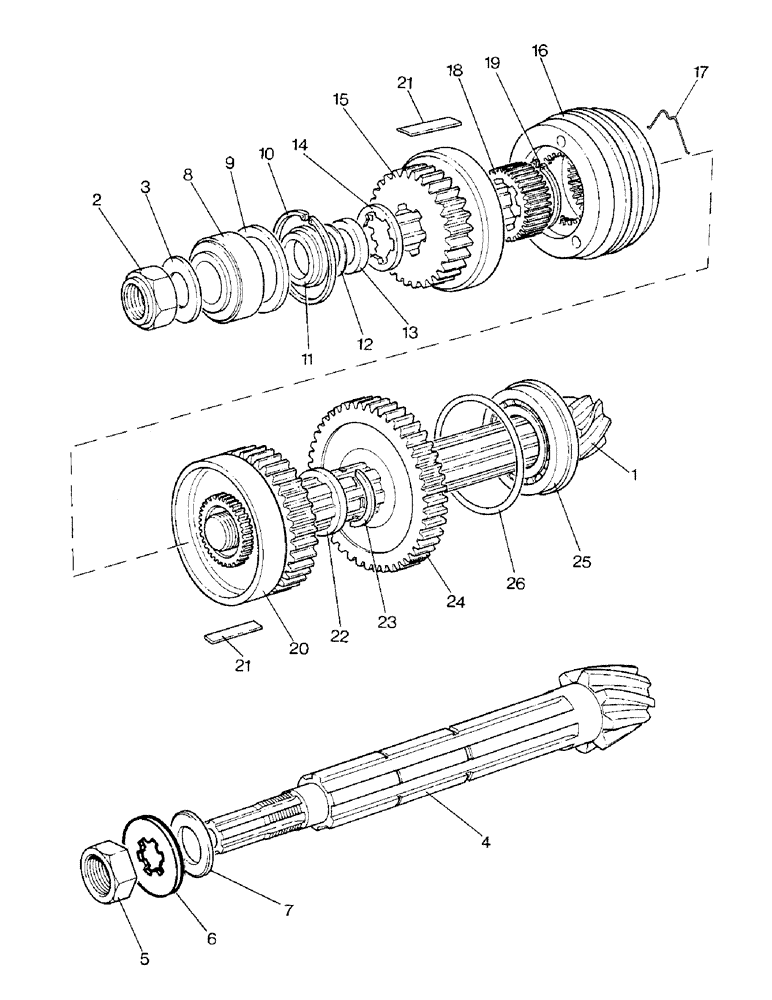

Запчасти Case IH 1690 (D03-1) - BEVEL PINION SHAFT, SYNCHROMESH MFD, SYNCHROMESH (03) - POWER TRAIN

1

K965820

GEAR-SET

BEVEL PINION AND SPIRAL GEAR - gearbox, 8/41 teeth (Synchromesh)

1шт.

2

K622803

NUT

NYLOC NUT - 1-1/8 BSF, left hand (Synchromesh)

1шт.

3

K14687

WASHER

- 1-1/8" (Synchromesh)

1шт.

4

K965821

PINION

BEVEL PINION AND SPIRAL GEAR - gearbox, 8/41 teeth (Synchromesh MFD)

1шт.

5

K921817

NUT

- 1-3/8", special (Synchromesh MFD)

1шт.

6

K626438

WASHER

TABWASHER (Synchromesh MFD)

1шт.

7

K921819

WASHER

- 1-3/8" (Synchromesh MFD)

1шт.

8

K620061

BEARING, ROLLER

BEARING - taper roller (Order A16794 and A16795)

1шт.

9

K627253

BUSHING

SPACER - bearing

1шт.

10

K17023

CIRCLIP

RING - snap, 3" internal

1шт.

11

K917844

BUSHING

SPACER - bearing

1шт.

12

K917845

SHIM,35.32mm ID x 50.8mm OD x 0.05mm Thk

- 0.002"

1шт.

12

K917846

SHIM

- 0.005"

1шт.

12

K917847

SHIM

- 0.010"

1шт.

12

K917848

SHIM

- 0.030"

1шт.

13

K940969

BUSHING

SPACER - bearing

1шт.

14

K940975

DISC

WASHER - special

1шт.

15

K942816

GEAR

- 28 teeth, high

1шт.

16

K928223

GEAR

ASSEMBLY - sliding (With cones)

1шт.

17

K926266

SPRING

- sliding gear

6шт.

18

K206501

GEAR

- dog clutch

2шт.

19

K621865

RING, SNAP

RING - snap, 1-3/4" external

1шт.

20

K942817

GEAR

- 35 teeth, medium

1шт.

21

K940989

PLATE

PAD - bearing

12шт.

22

K948670

WASHER

- special

1шт.

23

K945962

PACKING RING

SPLIT RING - halves

2шт.

24

K942461

GEAR

- 41 teeth, low

1шт.

25

K620158

TAPERED BEARING

BEARING - taper roller

1шт.

26

K626983

SHIM,.002" Thk

1шт.

26

K626984

SHIM,.005" Thk

1шт.

26

K626985

SHIM

- 0.015"

1шт.

26

K626980

SHIM

- 0.030"

1шт.
