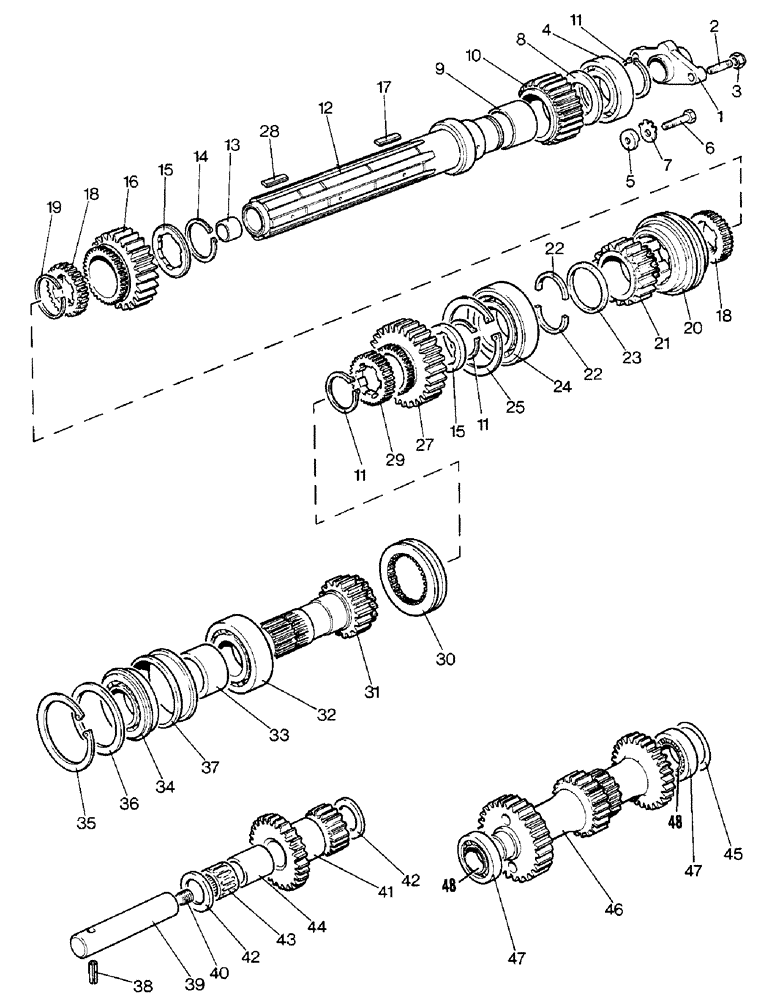

Запчасти Case IH 1690 (D02-1) - DRIVERSHAFT AND IDLER SHAFTS, SYNCHROMESH MODELS (03) - POWER TRAIN

1

K954299

SUPPORT

- shaft

1шт.

2

K608121

STUD

- 5/16 UNC x 1-7/8"

2шт.

3

231-1445

NUT,5/16"-18, GB

NUT - 5/16 UNC, self-locking

2шт.

4

K19047

BALL BEARING

BEARING - ball

1шт.

5

K910447

WASHER

- retaining

1шт.

6

K600144

BOLT

- 1/4 UNC x 1/2"

1шт.

7

K33127

WASHER

TABWASHER - bolt

1шт.

8

K908940

WASHER

THRUST WASHER - bearing

1шт.

9

K621376

BUSHING

- gear

1шт.

10

K963566

GEAR

REVERSE GEAR - with bushing, 22 teeth

1шт.

11

K12922

RING, SNAP

RING - snap, 1-3/4", external

3шт.

12

K200508

SHAFT ASSY.

DRIVESHAFT - synchromesh

1шт.

13

K948482

BUSHING

- driveshaft (Replaces K202033)

1шт.

14

K12300

RING, SNAP

RING - snap, 2" external

2шт.

15

K940975

DISC

WASHER - splined

2шт.

16

K202000

GEAR

- high range, 26 teeth

1шт.

17

K940989

PLATE

PAD - bearing

12шт.

18

K206501

GEAR

- dog clutch, steel

2шт.

18a

K943435

GEAR

sintered iron

1шт.

19

K621865

RING, SNAP

RING - snap, 50 MM external

1шт.

20

K943613

CLUTCH

SLIDING GEAR - high/low

1шт.

21

K205681

GEAR

- low speed, 18 teeth, Start Serial: 11212784

1шт.

On tractors prior to P.I.N. 11212784, order ref. 21 and 46.

1шт.

22

K954302

RING

- split

2шт.

23

K954303

RING

- keeper

1шт.

24

K12311

BEARING, ROLLER, CYL

BEARING - roller

1шт.

25

K12236

RING, SNAP

RING - snap, 4" internal

1шт.

27

K954305

GEAR

- 28 teeth

1шт.

28

K940989

PLATE

PAD - bearing

6шт.

29

K946234

GEAR

DOG CLUTCH - fixed

1шт.

30

K943644

SYNCHRO RING

SLIDING DOG CLUTCH - slow/normal

1шт.

31

K954306

GEAR

DRIVING GEAR - 18 teeth

1шт.

32

K12275

BEARING, ROLLER, CYL

BEARING - roller

1шт.

33

K627238

BUSHING

SPACER - driving gear

1шт.

34

K620149

BALL

BEARING - ball

1шт.

35

K621484

RING, SNAP

RING - snap, 3-5/8", internal

1шт.

36

K949218

BUSHING

ABUTMENT WASHER - bearing

1шт.

37

K627304

BUSHING

SPACER - bearing

1шт.

38

138-160

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

1шт.

39

K917918

SHAFT

SPINDLE - layshaft

1шт.

40

178-467

SET SCREW,Hex Soc, 7/16"-14 x 7/16"

PLUG - 7/16 UNC

1шт.

41

K947537

SHAFT

IDLER SHAFT - with integral gears

1шт.

42

K626714

WASHER

- thrust

2шт.

43

K620273

BEARING, NEEDLE,28.57mm ID x 38.1mm OD x 25.02mm W

ROLLER BEARING - needle

2шт.

44

K924495

BUSHING

SPACER - bearing

1шт.

45

K914702

SHIM,50.8mm ID x 67.06mm OD x 0.05mm Thk

1шт.

45

K914703

SHIM,.003" Thk

1шт.

45

K914704

SHIM,50.8mm ID x 67.06mm OD x 0.18mm Thk

1шт.

45

K914705

SHIM,50.8mm ID x 67.06mm OD x 0.25mm Thk

1шт.

46

K205682

SHAFT

- idler (Intergral gears), Start Serial: 1121784

1шт.

On tractors prior to P.I.N. 11212784, order ref. 21 and 46.

1шт.

47

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

BEARING - roller cup

2шт.

48

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

BEARING - roller cone

2шт.
