(B10-1) - ENGINE OIL COOLER

Запчасти Case IH 1690 (B10-1) - ENGINE OIL COOLER (02) - COOLING & FUEL SYSTEMS

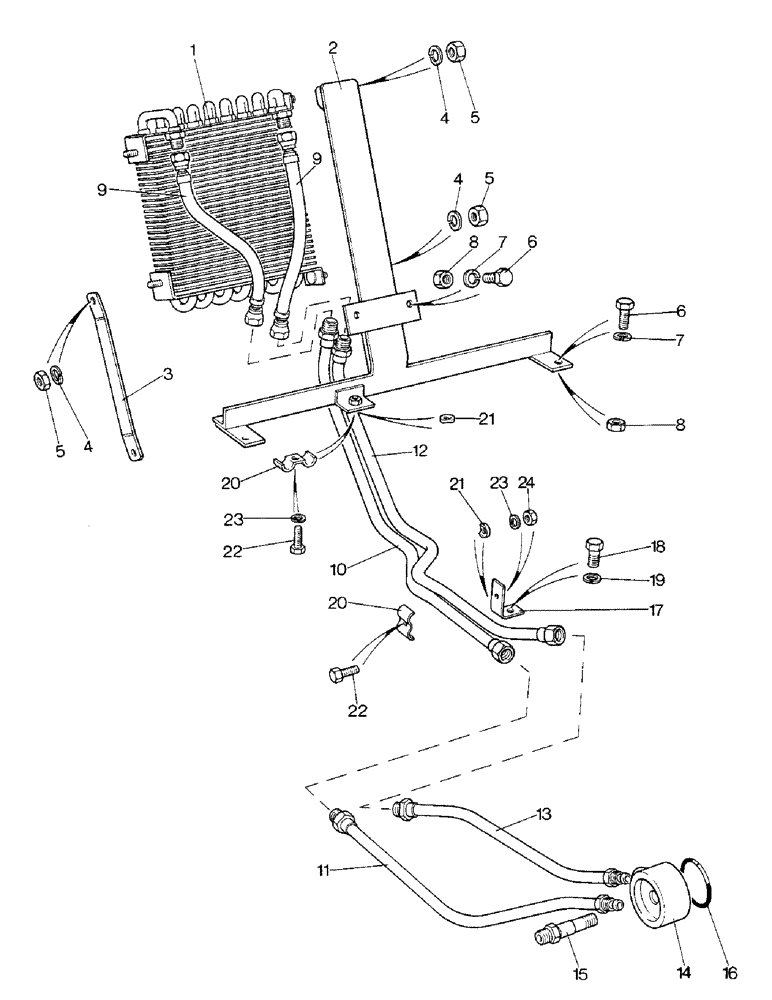

Схема запчастей Case IH 1690 - (B10-1) - ENGINE OIL COOLER (02) - COOLING & FUEL SYSTEMS
11
24
5
17
1
4
21
8
15
12
10
14
9
8
9
23
6
6
7
5
22
4
20
23
21
4
22
19
5
20
2
18
3
13
16
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

K302320

COOLER

OIL COOLER - engine

1шт.

2

K300708

COOLER

BRACKET - mounting

1шт.

3

K304376

BRACKET

STRUT - support (Replaces K302221)

1шт.

4

K19481

SPRING WASHER

WASHER - lock, 5/16"

3шт.

5

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

3шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

4шт.

7

K651848

WASHER

- lock, 8 MM

4шт.

8

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

9

K203933

HOSE

PIPE - flexible

2шт.

10

K203932

PIPE

- oil return

1шт.

11

K204315

PIPE

- oil return

1шт.

12

K203931

PIPE

- oil inlet

1шт.

13

K204314

PIPE

- oil inlet

1шт.

14

K955686

HOUSING

- oil pipe

1шт.

15

K200039

CONNECTOR, ELEC

CONNECTOR - housing

1шт.

16

K628873

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

RING - sealing

1шт.

17

K951973

SUPPORT

BRACKET - support

1шт.

18

K602982

SCREW,3/8" - 16 x 3/4", Gr S

SETSCREW - 3/8 UNC x 3/8"

1шт.

19

K19482

SPRING WASHER

WASHER - lock, 3/8"

1шт.

20

K951974

CLIP

- pipe

2шт.

21

K24111

WASHER

- 1/4", special

2шт.

22

K602737

SCREW

SETSCREW - 1/4 UNC x 1"

2шт.

23

K626341

SPRING WASHER

WASHER - lock, 1/4"

2шт.

24

K607043

NUT

- 1/4 UNC

1шт.
