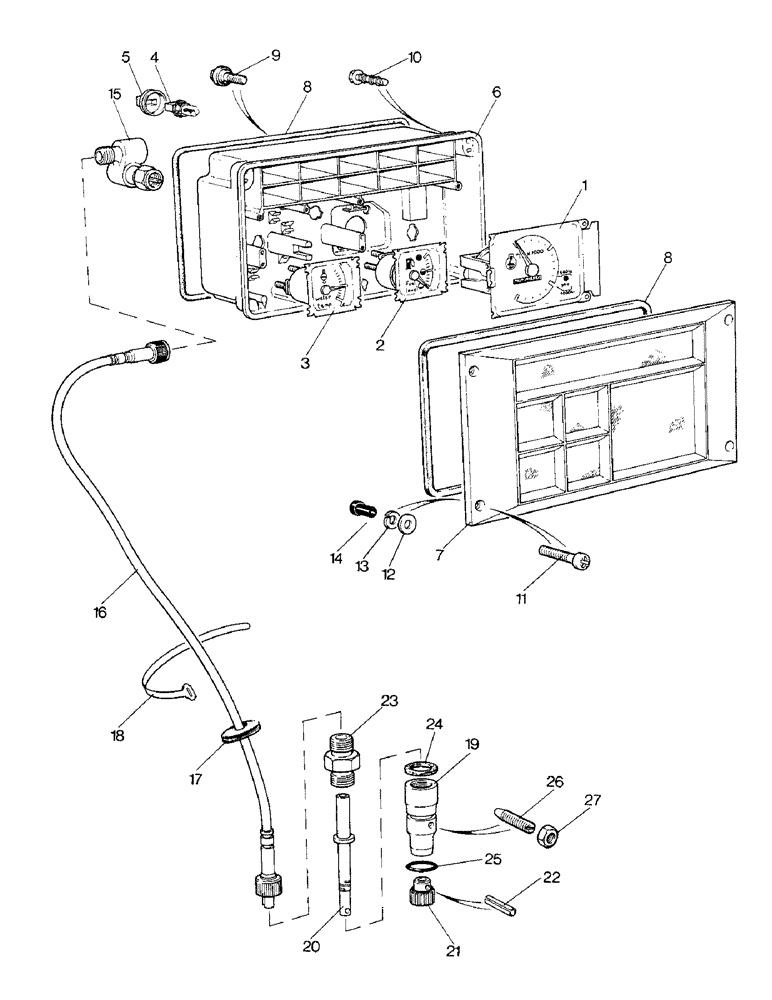

Запчасти Case IH 1690 (B09-1) - INSTRUMENT PANEL AND ENGINE SPEED INDICATOR, HIGH PLATFORM, CAB, LOW PROFILE (02) - COOLING & FUEL SYSTEMS

K300268

CLUSTER

PANEL ASSEMBLY - instrument, Includes Ref. 1 - 10

1шт.

1

K965947

TACHOMETER

SPEED INDICATOR - engine

1шт.

2

K965950

FUEL GAUGE

GAUGE - fuel

1шт.

3

K965949

ELECTRICAL GAUGE

GAUGE - temperature

1шт.

4

K965961

LAMP

AND SOCKET - warning lamps

6шт.

4

K965960

LAMP

AND SOCKET - illumination lamps

3шт.

5

K965958

BOOT

PLASTIC COVER - illumination lamps

3шт.

6

K965951

PRINTED CIRCUIT BOAR

CASE AND PRINTED CIRCUIT - panel

1шт.

7

K965945

BEZEL

COVER - cluster

1шт.

8

K965954

GASKET,4.45mm Thk x 249.68mm ID

- cluster

1шт.

9

K965957

BOLT

SCREW AND BUSHING - case

2шт.

10

K965959

SCREW

- retaining

12шт.

11

K652502

SCREW,Pan, M5 x 0.8 x 16mm

- M5 x 10 (Low Profile)

4шт.

11

K652506

SCREW

- M5 x 25 (High Platform, Cab)

4шт.

12

K651776

WASHER

- 5 MM (High Platform, Cab)

4шт.

13

K651846

WASHER, LOCK

WASHER - lock, 5 MM

4шт.

14

K652032

INSERT

- M5 x 9.5 (Low Profile)

4шт.

14

K653092

NUT

INSERT - M5 x 25 (High Platform, Cab)

4шт.

15

K201998

ADAPTER

ADAPTOR - speed indicator drive

1шт.

16

K957154

CABLE

- inner and outer (Low Profile)

1шт.

16

K954959

CABLE

- inner and outer (High Platform, Cab)

1шт.

17

K627769

GROMMET

- 32 MM (Low Profile)

1шт.

18

K10518

BUCKLE

CLIP - buckle

1шт.

19

K908181

HOUSING

- spindle

1шт.

20

K908182

DRIVE

SPINDLE - drive

1шт.

21

K920013

DRIVE

GEAR - drive

1шт.

22

K623933

SPRING

PIN - roll

1шт.

23

K948532

ADAPTER

ADAPTOR - 1/2 BSP - M22

1шт.

24

K19502

WASHER

FIBER WASHER - 7/8"

1шт.

25

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4"

1шт.

26

K928265

SCREW,5/16" - 18 x 1-1/16"

LOCATING SCREW - 5/16 UNC

1шт.

27

K607081

LOCK NUT

- 5/16 UNC

1шт.
