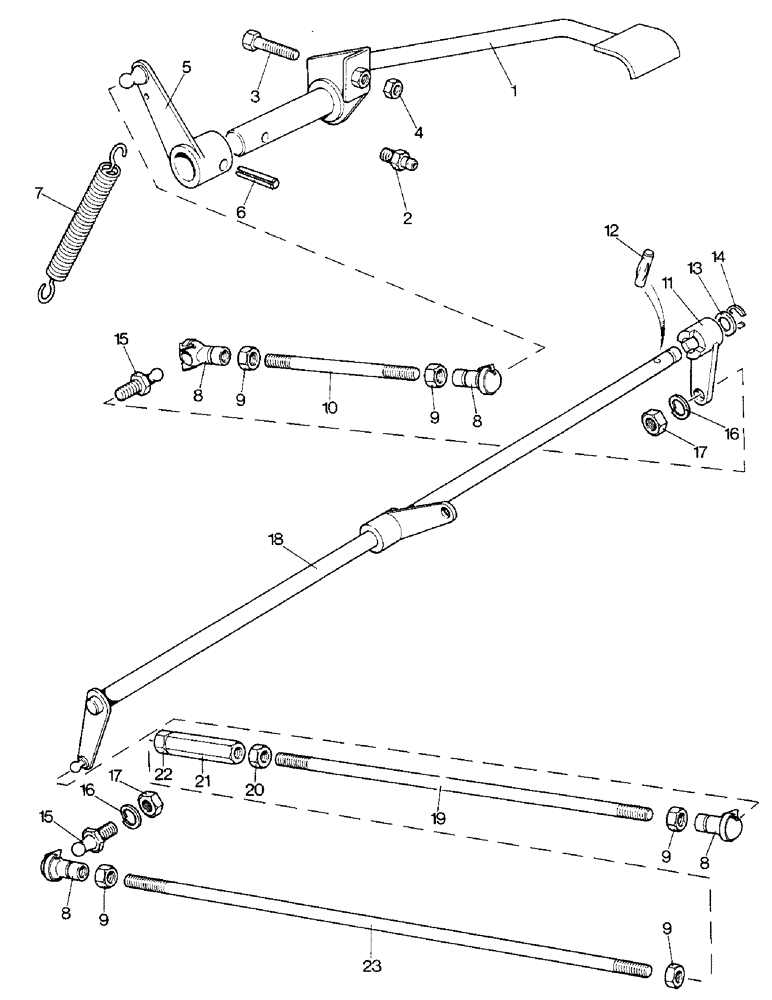

Запчасти Case IH 1690 (B06-1) - ENGINE SPEED FOOT CONTROL, HIGH PLATFORM, CAB MODEL (02) - COOLING & FUEL SYSTEMS

1

K202239

PEDAL

- foot

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

3

K610252

BOLT

- special 1/4" UNF

1шт.

4

425-154

JAM NUT,Jam, 1/4"-28, G5

LOCKNUT - 1/4" UNF

1шт.

5

K202236

LEVER

- pivot

1шт.

6

K623742

SPRING

PIN - 1/4 x 1"

1шт.

7

K6274914

SPRING - return

1шт.

8

K621903

BALL JOINT

SOCKET END - rod

4шт.

9

425-154

JAM NUT,Jam, 1/4"-28, G5

LOCKNUT - 1/4" UNF

4шт.

10

K202771

ROD

- 3-3/4"

1шт.

11

K928178

LEVER

- pivot

1шт.

12

K623747

SPLIT PIN/SAFETY PIN

PIN - roll

1шт.

13

K19472

WASHER

- 3/8"

1шт.

14

K621587

RING, SNAP

RING - snap, 3/8" O.D.

1шт.

15

K621904

BALL JOINT

BALL END - socket

2шт.

16

K626341

SPRING WASHER

WASHER - lock, 1/4"

2шт.

17

K616980

NUT

- 1/4 UNF

2шт.

18

K202517

SHAFT

CROSS SHAFT - lever

1шт.

19

K950721

ROD

- 14"

1шт.

20

K617593

NUT

- 1/4 UNF, left-hand thread

1шт.

21

K949065

SLEEVE

ADJUSTING SLEEVE - 1/4" UNF

1шт.

22

K616980

NUT

- 1/4 UNF

1шт.

23

K202521

ROD

- 14-3/4"

1шт.
