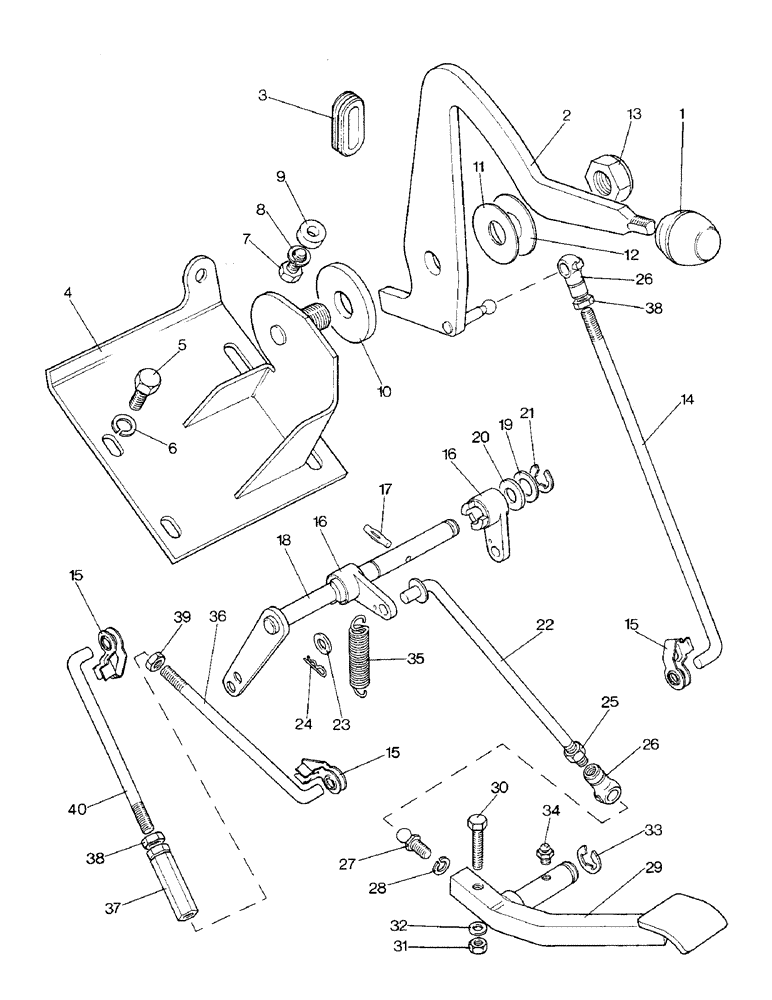

Запчасти Case IH 1690 (B05-3) - ENGINE THROTTLE CONTROL, LOW PROFILE MODEL, P.I.N. 11211216 AND AFTER (02) - COOLING & FUEL SYSTEMS

1

K950493

KNOB

- lever

1шт.

2

K201285

LEVER

HAND LEVER - operator

1шт.

3

K627761

GROMMET

- instrument panel

1шт.

4

K302640

BRACKET

SUPPORT BRACKET - lever

1шт.

5

K650643

BOLT

SETSCREW - M8 x 16

3шт.

6

K651848

WASHER

- lock, 8 MM

3шт.

7

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SETSCREW - 1/4 UNC x 3/4"

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

9

K627089

BUSHING

SPACER - setscrew

2шт.

10

K950724

DISC

FRICTION DISC - lever

1шт.

11

K626740

WASHER

BELLEVILLE WASHER - 5/8"

1шт.

12

K19475

WASHER

- 5/8"

1шт.

13

131-377

LOCK NUT,5/8"-11, GC

NUT - 5/8 UNF, self-locking

1шт.

14

K204624

ROD

- hand lever to cross shaft

1шт.

15

K908778

CLIP

- retaining

3шт.

16

K928178

LEVER

- cross shaft

2шт.

17

135-735

GROOVED PIN,5/32" x 3/4", Type E

Pin, Grooved, 5/32" x 3/4", Type E

2шт.

18

K204436

SHAFT

CROSS SHAFT - lever

1шт.

19

K19472

WASHER

- 3/8"

2шт.

20

K626267

SHIM,.030" Thk

Cross shaft .030" Thk

1шт.

21

A27795

RING

- snap, 3/8", external

2шт.

22

K204627

ROD

- cross shaft to accelerator pedal

1шт.

23

K19470

WASHER

- 1/4"

1шт.

24

K950865

CLIP

RETAINING CLIP - retaining

1шт.

25

129-121

NUT,1/4"-28, G5

2шт.

26

K621903

BALL JOINT

SOCKET END - 1/4 UNF

2шт.

27

K621904

BALL JOINT

BALL END - 1/4 UNF

2шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

29

K203164

PEDAL

ACCELERATOR PEDAL - foot

1шт.

30

K612707

SCREW

SETSCREW - 1/4 UNF x 1-1/4", pedal stop

1шт.

31

129-121

NUT,1/4"-28, G5

1шт.

32

K626674

WASHER

- 1/2", special

2шт.

33

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

2шт.

34

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

35

K624938

SPRING

- return

1шт.

36

K204622

ROD

- cross shaft to adjusting sleeve

1шт.

37

K949065

SLEEVE

ADJUSTING SLEEVE - 1/4 UNF

1шт.

38

129-121

NUT,1/4"-28, G5

1шт.

39

K617593

NUT

- 1/4 UNF, left-hand

1шт.

40

K204625

ROD

- adjusting sleeve to injection pump

1шт.
