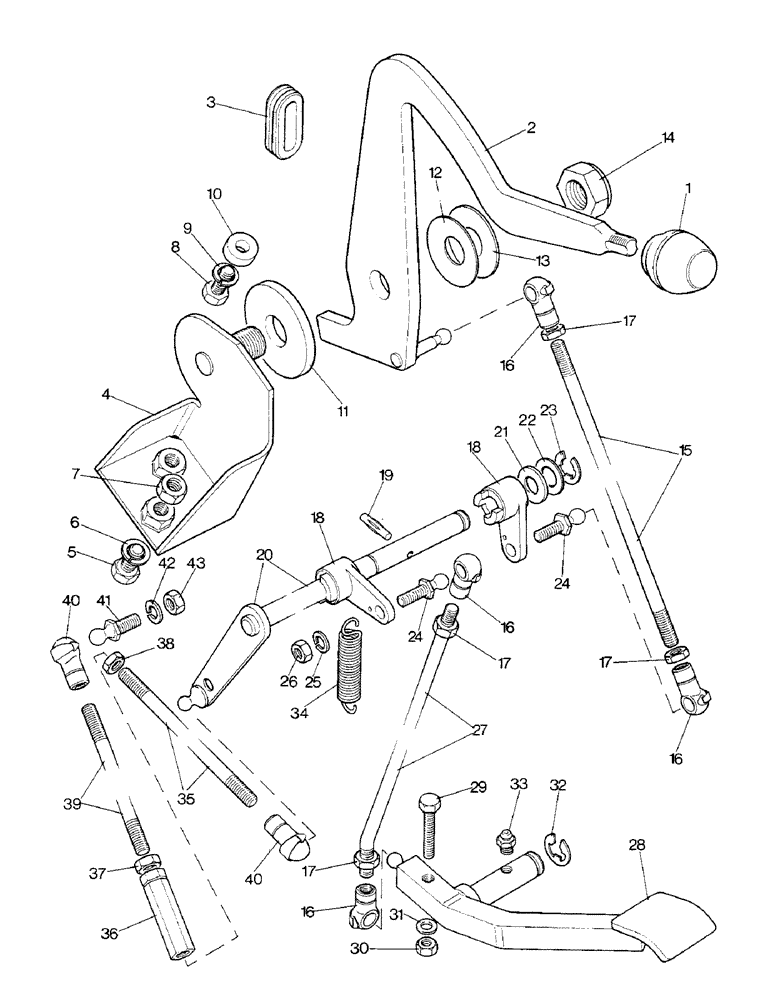

Запчасти Case IH 1690 (B05-1) - ENGINE THROTTLE CONTROL, LOW PROFILE MODEL, PRIOR TO P.I.N. 11211216 (02) - COOLING & FUEL SYSTEMS

1

K950493

KNOB

- lever

1шт.

2

K201285

LEVER

HAND LEVER - operator

1шт.

3

K627761

GROMMET

- instrument panel

1шт.

4

K300223

SUPPORT

BRACKET - lever

1шт.

5

513-604

BOLT

SETSCREW - M8 x 16

2шт.

6

K651848

WASHER

- lock, 8 MM

2шт.

7

K943634

NUT

- 1/4 UNC, special

2шт.

8

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SETSCREW - 1/4 UNC x 3/4"

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

10

K627089

BUSHING

SPACER - setscrew

2шт.

11

K950724

DISC

FRICTION DISC - lever

1шт.

12

K626740

WASHER

BELLEVILLE WASHER - 5/8"

1шт.

13

K19475

WASHER

- 5/8"

1шт.

14

131-377

LOCK NUT,5/8"-11, GC

NUT - 5/8 UNF, self-locking

1шт.

15

K201275

ROD

- hand lever to cross shaft

1шт.

16

K621903

BALL JOINT

SOCKET END - 1/4 UNF

5шт.

17

25-154

JAM NUT,Jam, 1/4"-28, G5

LOCKNUT - 1/4 UNF

5шт.

18

K928178

LEVER

- cross shaft

2шт.

19

135-735

GROOVED PIN,5/32" x 3/4", Type E

Pin, Grooved, 5/32" x 3/4", Type E

2шт.

20

K204241

SHAFT

CROSS SHAFT - lever

1шт.

21

K19472

WASHER

- 3/8"

3шт.

22

K626267

SHIM,.030" Thk

Cross shaft .030" Thk

1шт.

23

A27795

RING

- snap, 3/8", external

2шт.

24

K621904

BALL JOINT

BALL END - 1/4 UNF

2шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

26

129-121

NUT,1/4"-28, G5

1шт.

27

K202451

ROD

- cross shaft to accelerator pedal

1шт.

28

K203164

PEDAL

ACCELERATOR PEDAL - foot

1шт.

29

K612707

SCREW

SETSCREW - 1/4 UNF x 1-1/4", pedal stop

1шт.

30

129-121

NUT,1/4"-28, G5

1шт.

31

K626674

WASHER

- 1/2", special

2шт.

32

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

2шт.

33

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

34

K624938

SPRING

RETURN SPRING - pedal

1шт.

35

K202753

ROD

- cross shaft to adjusting sleeve

1шт.

36

K949065

SLEEVE

ADJUSTING SLEEVE - 1/4 UNF

1шт.

37

129-121

NUT,1/4"-28, G5

1шт.

38

K617593

NUT

- 1/4 UNF, left-hand

1шт.

39

K204240

ROD

- adjusting sleeve to injection pump

1шт.

40

K621903

BALL JOINT

SOCKET END - 1/4 UNF

1шт.

41

K621904

BALL JOINT

BALL END - 1/4 UNF

1шт.

42

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

43

129-121

NUT,1/4"-28, G5

2шт.
