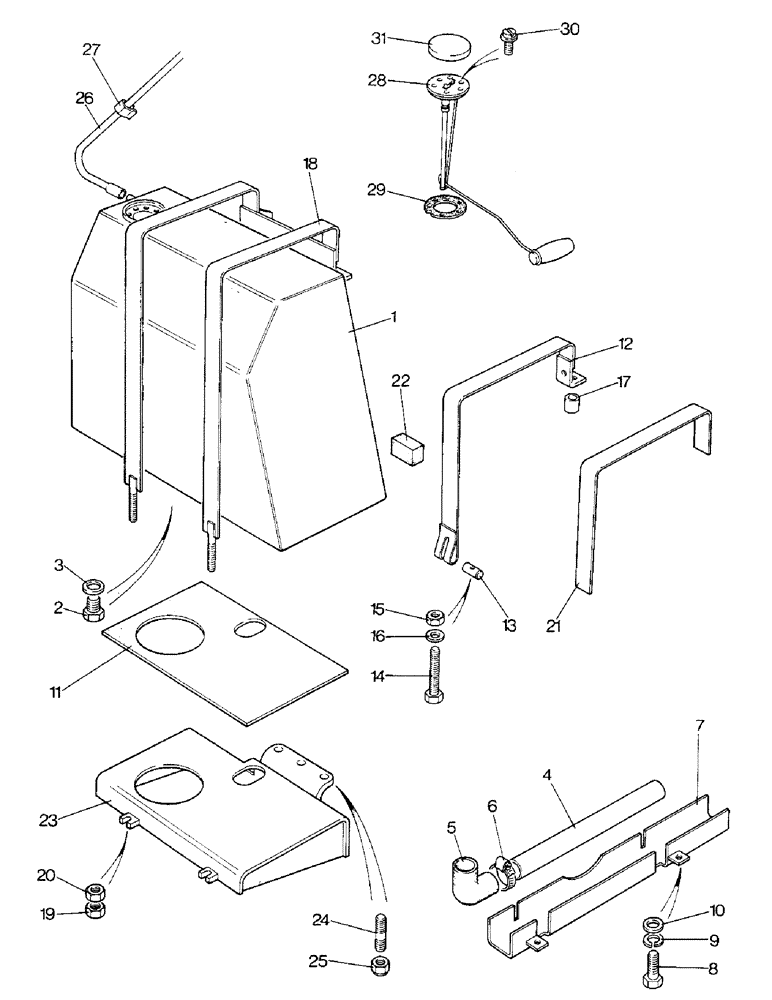

Запчасти Case IH 1690 (B04-1) - FUEL TANKS AND FITTINGS, POWERSHIFT HIGH PLATFORM, CAB, SYNCHROMESH HIGH PLATFORM, CAB (02) - COOLING & FUEL SYSTEMS

1

K202008

TANK

- fuel

1шт.

2

K19591

PLUG

- 1/8 BSP

1шт.

3

K626521

SEALING WASHER

WASHER - fiber, 3/8"

1шт.

4

K201944

PIPE

- connecting

1шт.

5

K201945

HOSE

ELBOW - 90 degree

1шт.

6

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, (Replaces K622028) #24, 1.06/2.00 Type F Worm

2шт.

7

K203552

GUARD

- connecting pipe

1шт.

8

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4"

4шт.

9

K19481

SPRING WASHER

WASHER - lock, 5/16"

4шт.

10

K626682

WASHER

- 5/16"

4шт.

11

K202093

MAT

- rubber

1шт.

K260717

TANK

KIT - strap, fuel tank (P.I.N. 11212527 and after) (Synchromesh High Platform, Cab), Includes Ref. 12 - 17

1шт.

12

K304026

STRAP

- tank (Synchromesh High Platform, Cab)

2шт.

13

K951539

TRUNNION

SCREWED PIN - 1/4 UNC (Synchormesh High Platform, Cab)

2шт.

14

K602747

SCREW,1/4" - 20 x 3 1/2", Gr S

SETSCREW - 1/4 UNC x 3-1/2" (Synchromesh High Platform, Cab)

2шт.

15

86632558

JAM NUT,Jam, 1/2"-13, G5

LOCKNUT - 1/4 UNC (Synchromesh High Platform, Cab)

2шт.

16

K19470

WASHER

- 1/4" (Synchromesh High Platform, Cab)

2шт.

17

K201919

SPACER

- strap (Synchromesh High Platform, Cab)

2шт.

18

K202870

STRAP

- tank (Powershift High Platform, Cab)

1шт.

19

86632558

JAM NUT,Jam, 1/2"-13, G5

LOCKNUT - 5/16 UNC (Powershift High Platform, Cab)

2шт.

20

K607523

COLLAR

NUT - 5/16 UNC, special (Powershift High Platform, Cab)

2шт.

21

K302680

ADHESIVE

SEATING STRIP - 40 x 1.5 x 716 MM

2шт.

22

K201952

SUPPORT

RUBBER BLOCK - 2-1/4 x 1-1/2 x 1"

1шт.

22

K202899

TANK

RUBBER BLOCK - 2-1/4 x 1-1/2 x 9/16"

3шт.

23

K201980

BRACKET

SUPPORT BRACKET - tank

1шт.

24

K608610

STUD

- 5/8 UNC x 2-1/2"

3шт.

25

K607306

NUT

- 5/8 UNC, self-locking

3шт.

26

K204021

PIPE

- air vent

1шт.

27

K621744

CLIP

- vent pipes

2шт.

28

K300827

TANK

SENDING UNIT - fuel gauge

1шт.

29

K946159

GASKET

- sending unit

1шт.

30

K614965

SCREW

- no. 10 UNF x 5/8"

5шт.

31

K946257

PLUG

PLASTIC DISC - 3-3/8" cap (Replaces K946247)

1шт.
