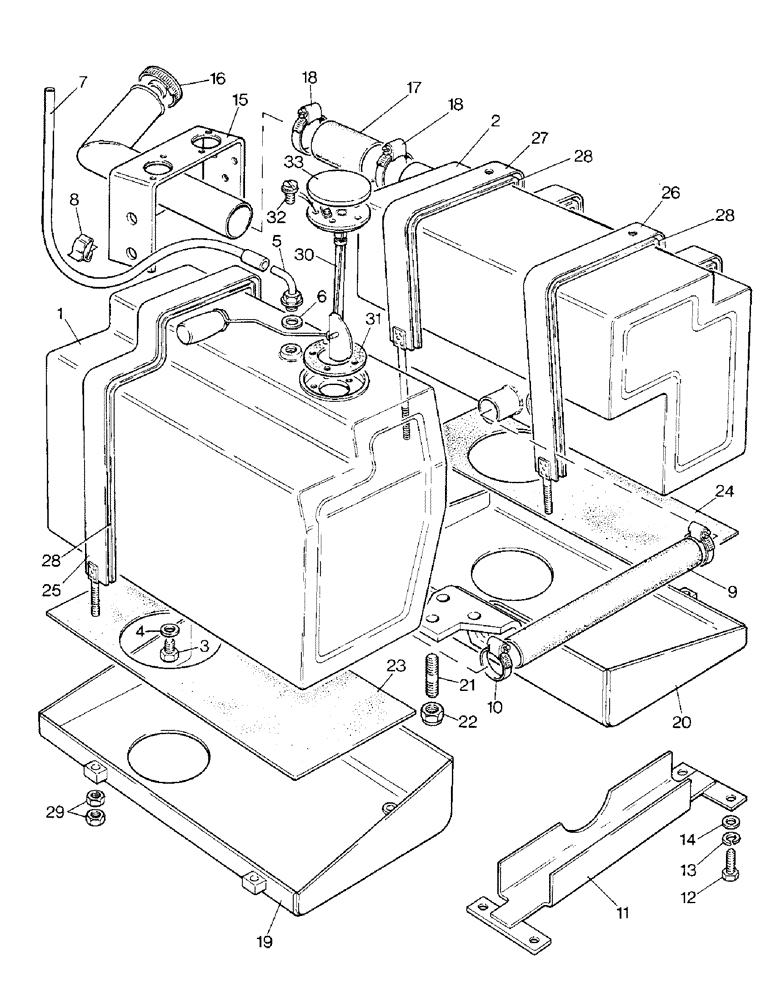

Запчасти Case IH 1690 (B03-1) - FUEL TANKS AND FITTINGS, LOW PROFILE MODEL (02) - COOLING & FUEL SYSTEMS

1

K202494

TANK

FUEL TANK - left-hand

1шт.

2

K202495

TANK

FUEL TANK - right-hand

1шт.

3

K19591

PLUG

- 1/8 BSP

2шт.

4

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

FIBER WASHER - 3/8"

2шт.

5

K204027

BREATHER

PLUG - 1/4 BSP

1шт.

6

K19501

WASHER

WASHER - fiber, 1/2"

1шт.

7

K204030

PIPE

- air vent

1шт.

8

K621744

CLIP

RETAINING CLIP - vent pipe

2шт.

9

K203515

FUEL HOSE

HOSE - 1-3/8 x 20-1/4"

1шт.

10

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1-1/2" #28, 1.31/2.25 Type F Worm

2шт.

11

K203525

GUARD

- connecting hose

1шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

4шт.

13

K651848

WASHER

- lock, 8 MM

4шт.

14

K651778

WASHER

- flat, 8 MM

4шт.

15

K301264

BRACKET

SUPPORT BRACKET AND FILLER - right-hand footplate

1шт.

16

K901983

CAP

- filler

1шт.

17

K202572

HOSE

- 2-1/4 x 5-1/2"

1шт.

18

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-1/2"

2шт.

19

K202659

BRACKET

SUPPORT BRACKET - left-hand tank

1шт.

20

K202665

BRACKET

SUPPORT BRACKET - right-hand tank

1шт.

21

K608610

STUD

- 5/8 UNC x 2-1/2"

6шт.

22

131-64

LOCK NUT,5/8"-11, GC

NUT - 5/8" UNC, self-locking

6шт.

23

K202713

MAT

SEATING MAT - left-hand tank

1шт.

24

K202714

MAT

SEATING MAT - right-hand tank

1шт.

25

K203457

STRAP

- left-hand tank

2шт.

26

K202309

STRAP

- right-hand tank, 43-7/8" long, rear

1шт.

27

K202330

STRAP

- right-hand tank, 46-1/8" long, front

1шт.

28

K628233

ADHESIVE

STRIP - packing

4шт.

29

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16 UNC

16шт.

30

K301062

TANK

SENDING UNIT - fuel gauge

1шт.

31

K946159

GASKET

- sending unit

1шт.

32

K614965

SCREW

- no. 10 UNF x 5/8"

5шт.

33

K946257

PLUG

COVER - sending unit, 3-3/8" diameter

1шт.
