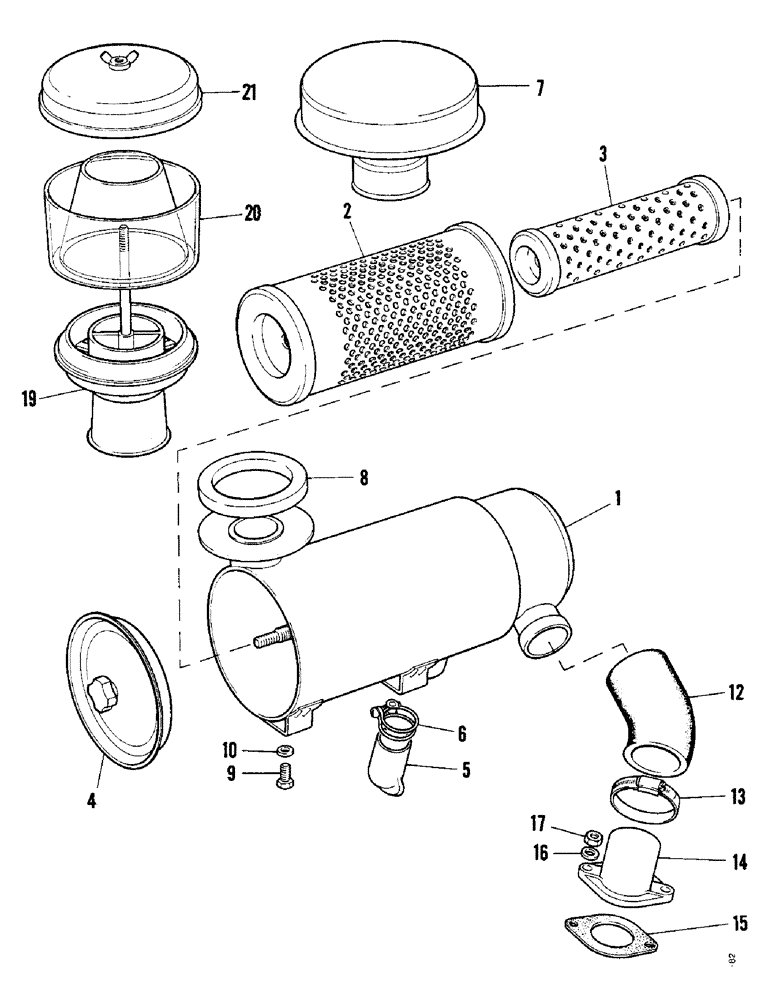

Запчасти Case IH 1690 (B02-1) - AIR CLEANERS (02) - COOLING & FUEL SYSTEMS

1

K201735

CLEANER

AIR CLEANER ASSEMBLY - front

1шт.

1

K201734

CLEANER

AIR CLEANER ASSEMBLY - rear, Includes Ref. 2 - 6

1шт.

2

K200379

FILTER, ELEMENT

ELEMENT - main

1шт.

3

K200380

FILTER, ELEMENT

ELEMENT - safety

1шт.

4

K260309

PLATE

END COVER AND NUT - element

1шт.

Coopers

1шт.

5

K260113

VALVE

DUST VALVE - cleaner

1шт.

If dlr is looking for 1 in. dia. order p/n K945042.

1шт.

6

K622099

CLIP

CLAMP - hose

1шт.

7

K203367

CAP

STACK CAP - air

1шт.

8

K301483

SEAL

RING - sealing

1шт.

9

K650651

BOLT

SETSCREW - M8 x 16 MM

8шт.

10

K651848

WASHER

SPACING WASHER - 8 MM

8шт.

12

K201961

INTAKE AIR HOSE,2.25" ID x 4.06", SAE J14 Class SC

- Cleaner to Manifold 2.25" ID x 4.06", SAE J14 Class SC

2шт.

13

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 3" diameter

4шт.

14

K201861

FLANGE

- inlet manifold

2шт.

15

K947258

GASKET

- flange

2шт.

16

K626682

WASHER

- 5/16"

4шт.

17

9635082

NUT,5/16" - 18, Gr 5

4шт.

K302219

CLEANER

PRE-CLEANER ASSEMBLY - air, Includes Ref. 20 and 21

1шт.

19

NSS

NOT SOLD SEPARAT

BASE - pre-cleaner (Order K302219)

1шт.

20

K260382

BOWL

- dust (Coopers)

1шт.

20

K260909

BOWL

- dust (Burgess)

1шт.

21

K260902

COVER

ASSEMBLY - pre-cleaner (Coopers) 7-5/16" diameter

1шт.

21

K260908

COVER

ASSEMBLY - pre-cleaner (Burgess) 8" diameter

1шт.
