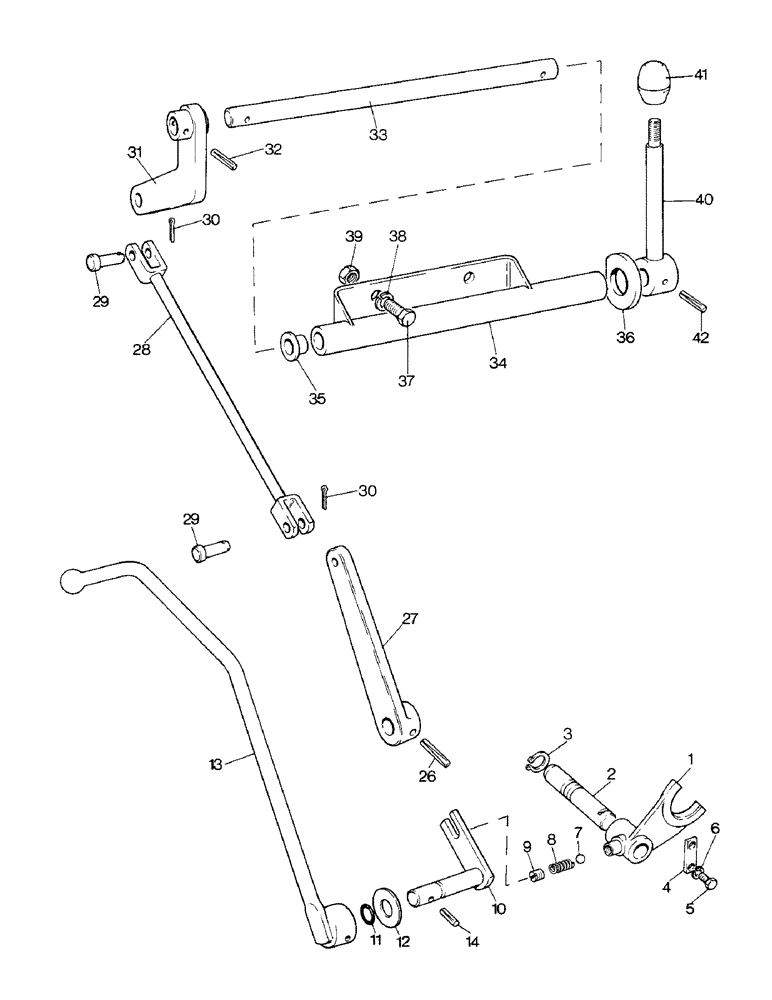

Запчасти Case IH 1690 (F01-1) - POWER TAKE-OFF CONTROLS, HIGH PLATFORM, CAB, LOW PROFILE (01) - POWER TAKE OFF
№
Артикул
Название
Примечание
Количество
1
K948398
SHIFTER FORK
FORK - selector, PTO
1шт.
2
K948399
SELECTOR
ROD - selector, PTO
1шт.
3
K11290
RING, SNAP
RING - snap, 3/4"
1шт.
4
K948400
PLATE
- retaining
1шт.
5
K602733
SCREW
SETSCREW - 1/4 UNC x 5/8" (Low Profile)
2шт.
K602733
SCREW
SETSCREW - 1/4 UNC x 5/8" (High Platform, Cab)
1шт.
6
K626341
SPRING WASHER
WASHER - lock, 1/4" (Low Profile)
2шт.
K626341
SPRING WASHER
WASHER - lock, 1/4" (High Platform, Cab)
1шт.
7
K17063
BALL
STEEL BALL - 1/4"
1шт.
8
K24831
SPRING
- detent ball
1шт.
9
K606021
SCREW
- 5/16 UNC
1шт.
10
K948401
SELECTOR
LEVER AND SHAFT - PTO
1шт.
11
K625405
O-RING,0.549" ID x 0.103" Width
- 9/16" ID
1шт.
12
K19476
WASHER
- 3/4"
1шт.
12
K627462
WASHER
- 3/4" special
1шт.
13
K202331
LEVER
- hand (Low Profile)
1шт.
14
K623726
PIN
- 1/4 x 1-1/2"
1шт.
26
K623726
PIN
- 1/4 x 1-1/2"
1шт.
27
K951272
LEVER
OPERATING LEVER - reversible shaft PTO (High Platform, Cab)
1шт.
28
K203051
ROD
- lever connecting (High Platform, Cab)
1шт.
29
K14227
PIN
- clevis (High Platform, Cab)
2шт.
30
K623607
PIN
SPLIT PIN - 3/32 x 3/4" (High Platform, Cab)
2шт.
31
K202542
LEVER
- shaft (High Platform, Cab)
1шт.
32
K623887
PIN,5.21mm OD x 25.4mm L
- 3/16 x 1" (High Platform, Cab)
1шт.
33
K202320
SHAFT
- cross (High Platform, Cab)
1шт.
34
K202317
SUPPORT
BRACKET - support (High Platform, Cab)
1шт.
35
K628757
BUSHING
- shaft (High Platform, Cab)
2шт.
36
K952800
SEAL
- lever (High Platform, Cab)
1шт.
37
K602983
SCREW
SETSCREW - 3/8 UNC x 7/8" (High Platform, Cab)
3шт.
38
K19482
SPRING WASHER
WASHER - lock, 3/8" (High Platform, Cab)
3шт.
39
280136
NUT,3/8"-16, G8
(High Platform, Cab) 3/8"-16, G8
3шт.
40
K202323
LEVER
- hand (High Platform, Cab)
1шт.
41
K950493
KNOB
- lever (High Platform, Cab)
1шт.
42
138-2067
PIN,3/16" x 1", Coiled
- 3/16 x 1-1/4" (High Platform, Cab) (Replaces K623746)
1шт.
Выбрано товаров: 34
