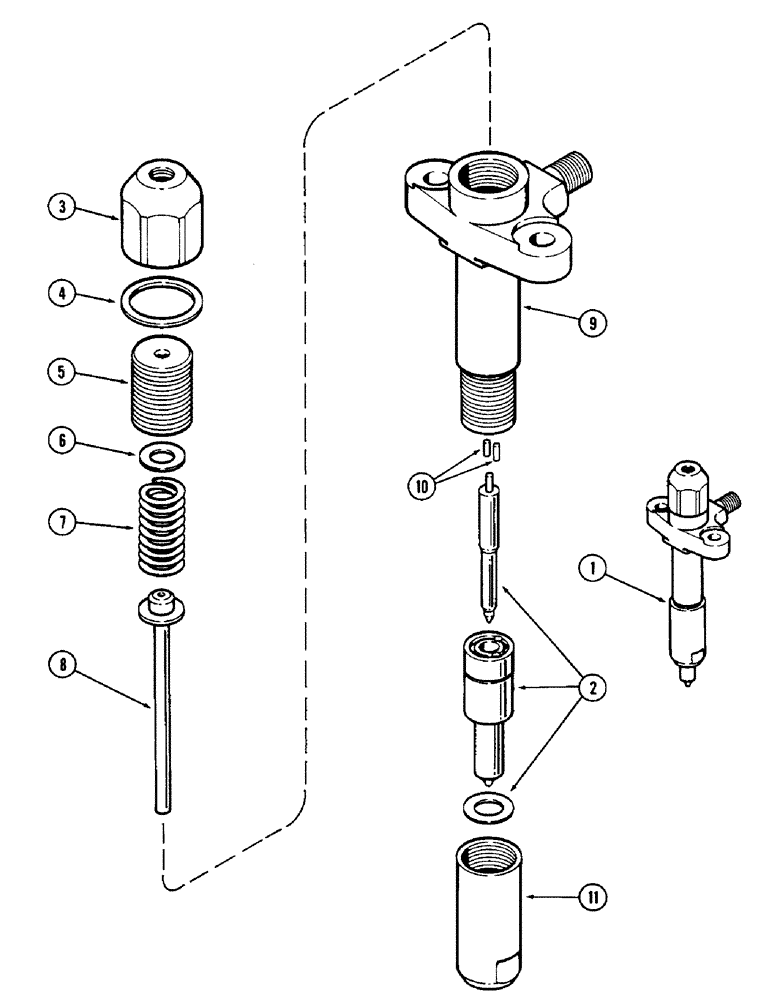

Запчасти Case IH 1690 (A12-1) - FUEL INJECTOR (01) - ENGINE

1

K954826

INJECTOR ASSY.

INJECTOR ASSEMBLY - fuel (Lucas 5288401), Includes Ref. 2 - 11

1шт.

2

K942176

NOZZLE CAP

NOZZLE ASSEMBLY - injector (Lucas 5621748)

1шт.

P/N K942176; PER PRINT AND THE NOTE WRITTEN ON THE APERATURE CARD, THERE IS NO WASHER THAT COMES WITH THIS INJECTOR NOZZLE.

1шт.

K954827

NOZZLE INJECTION

HOLDER ASSEMBLY - injector (Lucas 52884), Includes Ref. 3 - 11

1шт.

3

A48010

NUT

- cap, holder (Lucas 7008-599C)

1шт.

4

K964148

WASHER

- cap (Lucas NW5-59)

1шт.

5

A48011

NUT

- cap spring (Lucas 7008-599C)

1шт.

6

A48012

SHIM

- spring nut (Lucas 5936-298)

1шт.

7

A48013

SPRING

- spindle (Lucas 7008-253)

1шт.

8

A48014

SPINDLE

- injector (Lucas 7008-49)

1шт.

9

A48015

HOUSING

BODY - injector (Lucas 7008-799A)

1шт.

10

A48016

PIN

DOWEL - nozzle (Lucas 7008-428A)

2шт.

10

A48017

PIN

DOWEL - nozzle (Lucas 7008-428B)

2шт.

10

A48018

PIN

DOWEL - nozzle (Lucas 7008-428C)

2шт.

11

A48019

CAP

- nozzle (Lucas 7008-187)

1шт.
