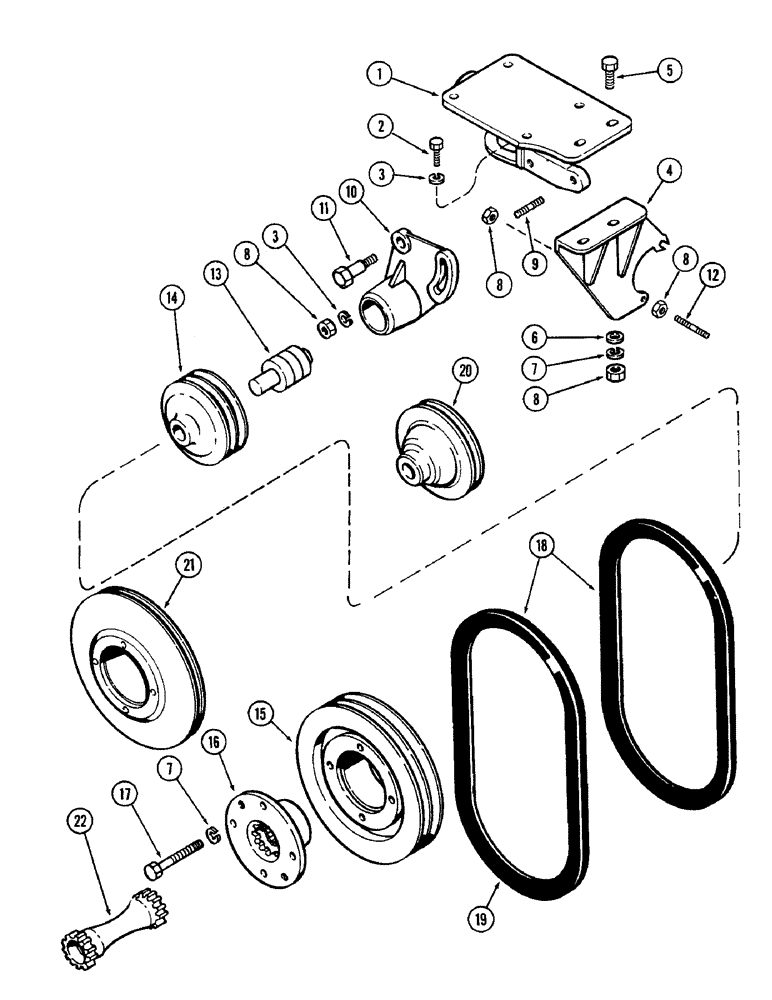

Запчасти Case IH 1690 (A11-1) - COMPRESSOR DRIVE AND MOUNTING, CAB MODELS (01) - ENGINE

1

K201743

COMPRESSOR

BRACKET - compressor mounting

1шт.

2

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

4

K201748

BRACKET

- compressor mounting

1шт.

5

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

2шт.

6

K19472

WASHER

- flat, 3/8"

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

7шт.

9

K608236

STUD

- 3/8 x 1-1/2" NC

1шт.

10

K200830

BRACKET

- tension pulley

1шт.

11

K955095

STEP BOLT

BOLT - pivot, shoulder

1шт.

12

K608214

STUD

- 3/8 x 2" NC

2шт.

13

K620203

BALL BEARING,38.1mm OD x 75.75mm L

SHAFT ASSEMBLY - tension pulley

1шт.

14

K201799

ADJUSTER

PULLEY - tension adjust, Serial Range: -11212864

1шт.

15

K201254

COMPRESSOR

PULLEY - drive, compressor, Serial Range: -11212864

1шт.

16

K201984

SPLINED COUPLING

COUPLING - rear, front pump

1шт.

17

K600413

BOLT

- 3/8 x 2-5/8" NC hex

4шт.

18

A162484

BELT

- drive, compressor, Serial Range: -11212864

2шт.

19

A164473

BELT,0.51" W

Drive, Compressor 0.51" W, Start Serial: 11212864

1шт.

20

K206018

PULLEY

- tension adjust, Start Serial: 11212864

1шт.

21

K206024

PULLEY

- drive, compressor, Start Serial: 11212864

1шт.

22

K200464

SHAFT

- drive, pump

1шт.

4-5/8" LONG 1.708" MAJ DIA. 1.583" PL DIA. 1.420" MINOR SPLINE O.D.

1шт.
