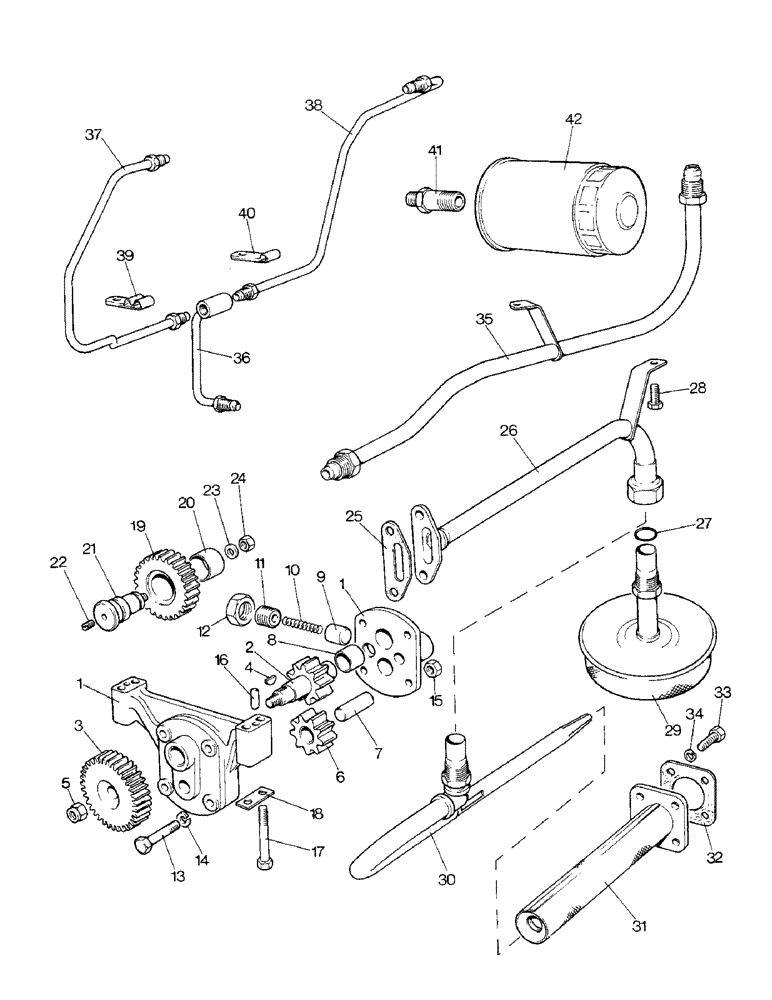

Запчасти Case IH 1690 (A09-1) - OIL PUMP, PIPES AND FILTER, MFD MODEL, 2WD MODEL (01) - ENGINE

1

K954970

PUMP

OIL PUMP ASSEMBLY - engine, Includes Ref. 2 - 15

1шт.

2

K954752

ROTOR

GEAR - drive

1шт.

3

K947641

GEAR

- 34 teeth

1шт.

4

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

(No. 405) #5, 1/8" x 5/8"

1шт.

5

K617303

LOCK NUT

- 7/16 UNF, self locking

1шт.

6

K917530

ROTOR

GEAR - driven

1шт.

7

K917531

SHAFT

- driven rotor

1шт.

8

K628762

BUSHING

- body

2шт.

9

K953628

PLUNGER

- relief valve

1шт.

10

K625167

SPRING

- plunger

1шт.

11

K953647

SCREW

ADJUSTING SCREW - 3/4 UNF

1шт.

12

K617026

NUT

LOCKNUT - 3/4 UNF

1шт.

13

K600320

BOLT

- 5/16 UNC x 1-13/16", special

2шт.

13

K600219

BOLT

- 5/16 UNC x 3-1/2", special

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

15

9635082

NUT,5/16" - 18, Gr 5

4шт.

16

K621806

PIN

DOWEL - locating

2шт.

17

K600211

BOLT

- 5/16 UNC x 2-1/4", Serial Range: pump-engine

4шт.

18

K917544

WASHER

- tab

2шт.

19

K948948

GEAR

IDLER GEAR ASSEMBLY - 29 teeth, Includes Ref. 20, Serial Range: -11451062

1шт.

19

K204672

GEAR

IDLER GEAR ASSEMBLY - 29 teeth, Start Serial: 11451062

1шт.

20

K628742

BUSHING

- idler gear

1шт.

21

K917657

SHAFT

- idler gear (Prior to engine serial no. 11451062)

1шт.

21

K204674

SHAFT

- idler gear (Engine serial no. 11451062 and after)

1шт.

22

K606000

SCREW,1/4" - 20 x 1/4"

PLUG - 1/4 UNC

1шт.

23

K626699

WASHER

- 3/8"

1шт.

24

K617302

LOCK NUT

- 3/8 UNF

1шт.

25

K918832

GASKET

- inlet pipe

1шт.

26

K202504

PIPE

- pump inlet

1шт.

27

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4", internal diameter

1шт.

28

26-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SET SCREW - 5/16 UNC x 3/4"

1шт.

29

K202597

FILTER

SCREEN - oil (2WD Model)

1шт.

30

K203516

PIPE,0.629 - 0.754" OD

- filter screen (MFD Model)

1шт.

31

K200939

FILTER

SCREEN - oil (MFD Model)

1шт.

32

K200943

GASKET

- screen (MFD Model)

1шт.

33

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SET SCREW - 5/16 UNC x 7/8"

4шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , UNC (MFD Model) 5/16"

4шт.

35

K918818

PIPE

- pump to cylinder block

1шт.

36

K950199

HYD TUBE,0.25" OD x 3.625, 1.406" L

PIPE - valve gear lubrication

1шт.

37

K950197

HYD TUBE,0.25" OD x 14, 6.937" L

PIPE - lubrication, front head

1шт.

38

K950195

HYD TUBE,0.25" OD x 14, 6.937" L

PIPE - lubrication, rear head

1шт.

39

K621712

CLIP

- double

1шт.

40

K621713

CLIP

- single

1шт.

41

K200007

FITTING

CONNECTOR - oil filter

1шт.

42

K955687

CLEANER

OIL FILTER - engine

1шт.
