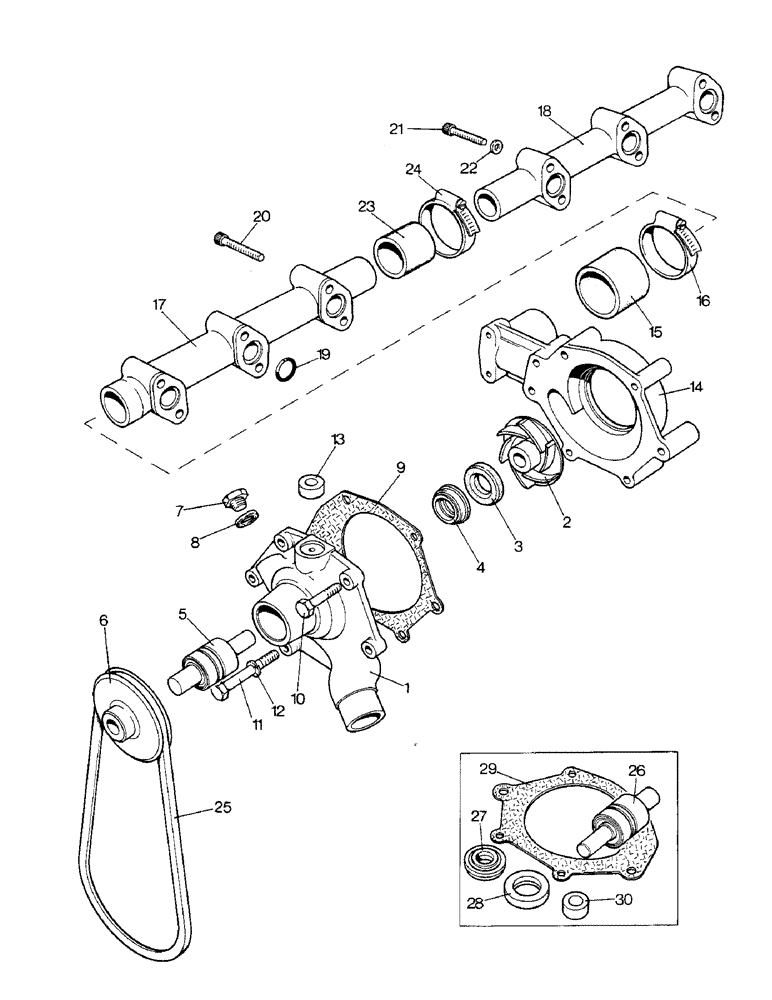

Запчасти Case IH 1690 (A08-1) - WATER PUMP AND PIPES (01) - ENGINE

K200759

PUMP

ASSEMBLY - water, Includes Ref. 1 - 6

1шт.

1

K200686

HOUSING

BODY - pump

1шт.

2

K200760

IMPELLER

- water

1шт.

3

K200821

RING

- special

1шт.

4

K200823

GLAND

SEAL - gland

1шт.

5

K620202

BEARING ASSY

SHAFT AND BEARING - pump

1шт.

6

K200773

PULLEY

- pump

1шт.

7

K623829

PLUG

- 3/8 BSO

1шт.

8

K19500

GASKET

FIBER WASHER - 5/8"

1шт.

9

K942844

GASKET

- pump

1шт.

10

K600205

BOLT

- 5/16 UNC x 1-1/2"

2шт.

11

K600217

BOLT

- 5/16 UNC x 3"

4шт.

11

K600322

BOLT

- 5/16 UNC x 2-1/2"

1шт.

12

K19481

SPRING WASHER

WASHER - lock, 5/16"

7шт.

13

K915330

SEALING RING

SEALING RING - pump to thermostat housing

1шт.

14

K949111

HOUSING

- impeller

1шт.

15

K626836

HOSE

- 1-3/4 x 1-1/2"

1шт.

16

K622030

CLAMP

HOSE CLIP - 2-1/4"

2шт.

17

K949096

MANIFOLD

WATER MANIFOLD - front

1шт.

18

K949097

MANIFOLD

WATER MANIFOLD - rear

1шт.

19

K14509

O-RING,0.796" ID x 1.047" OD x 0.139"

- 13/16", ID

6шт.

20

K606564

BOLT

BOLT - 5/16 UNC x 2-1/4"

6шт.

21

61-528

HEX SOC SCREW,5/16"-18 x 1 3/4"

BOLT - 5/16 UNC x 3/4" (Replaces K606560)

6шт.

22

K626924

WASHER

- 5/16"

12шт.

23

K626835

HOSE

- 1-3/8 x 1-5/8"

1шт.

24

K622029

CLAMP

CLIP - hose, 1-7/8"

2шт.

25

K949311

BELT

V-BELT, Driving, Water pump and alternator

1шт.

K965888

PACKAGE, REPAIR

REPAIR PACK - water pump, Includes Ref. 26 - 30

1шт.

26

K620202

BEARING ASSY

SHAFT AND BEARING - pump

1шт.

27

K200823

GLAND

SEAL - gland

1шт.

28

K200821

RING

- special

1шт.

29

K942844

GASKET

- pump

1шт.

30

K915330

SEALING RING

RING - sealing

1шт.
