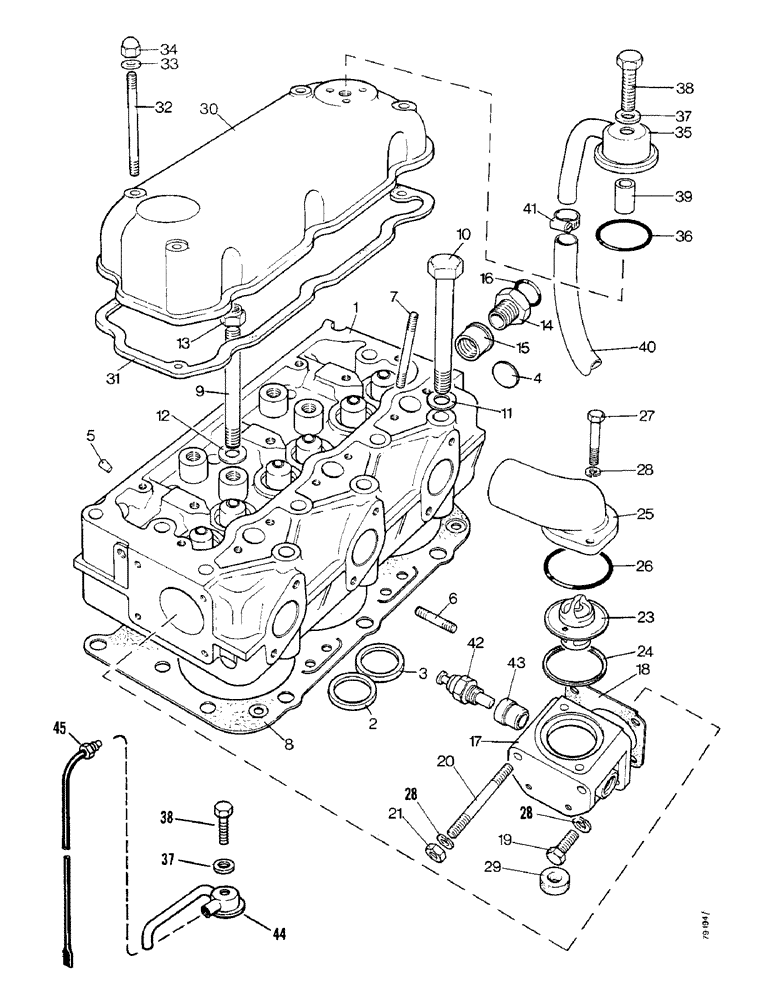

Запчасти Case IH 1690 (A05-1) - CYLINDER HEAD (01) - ENGINE

1

K965046

HEAD (CYLINDER)

CYLINDER HEAD ASSEMBLY - front

1шт.

Half moon next to #1 ref arrow. half moon has spacer K918692.

1шт.

1

K965047

HEAD (CYLINDER)

CYLINDER HEAD ASSEMBLY - rear, Includes Ref. 2 - 5

1шт.

2

K921246

INSERT

- inlet seat

3шт.

3

K925019

INSERT

- exhaust seat (Replaces K921247)

3шт.

4

K623789

PLUG

CORE PLUG - 1" diameter

2шт.

5

K900431

PLUG

TAPER PLUG - cylinder head

2шт.

6

K608203

STUD

- 3/8 UNC x 1-7/8"

11шт.

6

K608214

STUD

- 3/8 UNC x 2"

1шт.

7

K608107

STUD

- 5/16 UNC x 2-11/16", injectors

12шт.

8

K952527

GASKET

GASKET - cylinder

2шт.

9

K608505

STUD,1/2" x 7/16"

STUD - 1/2 UNC-UNF x 5-5/16"

4шт.

9

K906538

STUD

- 1/2 UNC-UNF x 4-7/8"

8шт.

10

K600870

BOLT

- 1/2 UNC x 4-1/4", special

16шт.

11

K953429

WASHER,13.89mm ID x 23.81mm OD x 0.71mm Thk

- headbolt, 1/2"

26шт.

12

K918692

WASHER

- 1/2", special, cylinder heads to cylinder block

2шт.

13

K617594

NUT

- 1/2 UNF, special, cylinder heads to cylinder block

12шт.

14

K940268

FITTING

CONNECTION - water passage

1шт.

15

K940267

BUSHING

- connection

1шт.

16

K14509

O-RING,0.796" ID x 1.047" OD x 0.139"

- 13/16", internal diameter

1шт.

17

K200818

THERMOSTAT

HOUSING - thermostat

1шт.

18

K949564

GASKET

- housing

1шт.

19

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

SETSCREW - 5/16 UNC x 1"

2шт.

20

K608156

STUD

- 5/16 UNC x 4-1/2"

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

2шт.

23

K917962

THERMOSTAT

- water (95 degrees C.)

1шт.

24

K200225

GASKET,0.81mm Thk

- outlet

1шт.

25

K201862

OUTLET

PIPE - water outlet

1шт.

26

K68951

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

-138, 90 Duro, 2.112" ID x .103" Thk

1шт.

27

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

27

26-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

- 5/16 UNC x 1-3/4"

1шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

29

K915330

SEALING RING

SEALING RING - housing to water pump

1шт.

30

K918687

COVER

- front cylinder head, Serial Range: -11452321

1шт.

30

K918688

DOOR COVER

COVER - rear cylinder head, Serial Range: -11452321

1шт.

30

K918687

COVER

- front and rear cylinder head, Start Serial: 11452321

2шт.

31

K918689

GASKET,3.97mm Thk

- cover

2шт.

32

K608116

STUD

- 5/16 UNC x 3-11/16"

4шт.

32

K608110

STUD

- 5/16 UNC x 3-1/8"

4шт.

33

K14988

WASHER

COPPER WASHER - 5/16"

8шт.

34

129-880

CROWN NUT,Crown, 5/16"-18

- 5/16 UNC, domed

8шт.

35

K954952

COVER

- engine breather, Serial Range: -11213310

2шт.

36

K626901

O-RING,40554" ID x 40575" OD x 0.12"

O-RING - 1-11/16", internal diameter

2шт.

37

K626443

WASHER

COPPER WASHER - 1/2"

2шт.

38

K603143

SCREW

BOLT - 1/2 UNC, special

2шт.

39

K945433

BUSHING

SPACER - breather

2шт.

40

K947667

PIPE

HOSE - 5/8 x 20" (Order K205246), Serial Range: -11452321

2шт.

40

K205246

PIPE

HOSE - 5/8 x 26", Start Serial: 11452321

2шт.

41

K622023

CLAMP

- hose, 3/4"

2шт.

42

K302026

TEMPERATURE SENDER

SENDER - temperature gauge

1шт.

43

K203464

ADAPTER

- 5/8 UNF - 1/8 NPT

1шт.

44

K205655

COVER

- engine breather, Start Serial: 11213310

1шт.

45

K204270

PIPE,0.312" OD x 20, 2" L

ASSEMBLY - steering reservoir to breather, Serial Range: -11213310

1шт.

K965964

KIT, ENGINE TOP GASK

GASKET SET - cylinder head

1шт.
