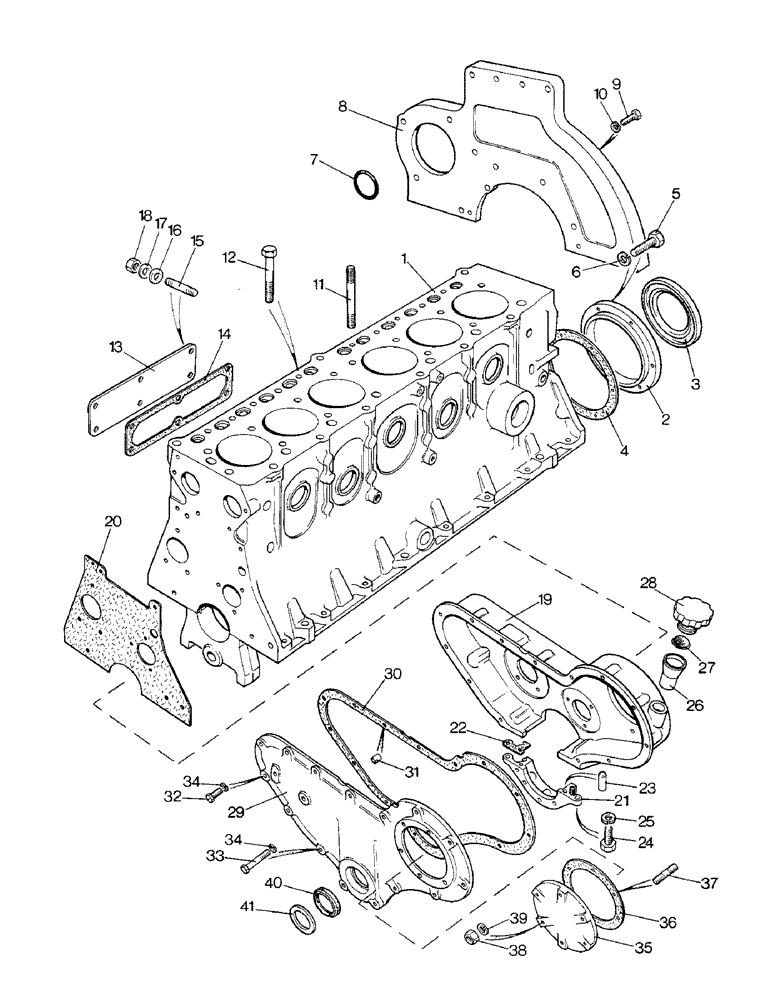

Запчасти Case IH 1690 (A02-1) - CYLINDER BLOCK AND COVERS (01) - ENGINE

1

K965045

CRANKCASE

CYLINDER BLOCK ASSEMBLY - engine, See figure A1-1

1шт.

2

K200547

SEAL

HOUSING - oil seal

1шт.

3

K262708

SEAL

OIL SEAL - 140 x 115 x 12 MM (Replaces K623476)

1шт.

4

K200569

GASKET

- housing

1шт.

5

K602807

SCREW

SET SCREW - 5/16 UNC x 1-1/4"

6шт.

6

K19481

SPRING WASHER

WASHER - lock, 5/16"

6шт.

7

K623523

O-RING,1.802" OD x 0.143" Width

- 1-13/16", ID

1шт.

8

K200329

SUPPORT

PLATE - starter

1шт.

9

K602906

SCREW

SET SCREW - 3/8 UNC x 1-1/4"

6шт.

10

K19482

SPRING WASHER

WASHER - lock, 3/8"

6шт.

11

K608505

STUD,1/2" x 7/16"

STUD - 1/2 UNC/UNF x 5-5/16"

4шт.

11

K906538

STUD

- 1/2 UNC/UNF x 4-7/8"

8шт.

12

K600870

BOLT

- 1/2 UNC x 4-1/4"

16шт.

13

K948939

TAPPET

COVER - tappets

2шт.

14

K948938

GASKET

- cover

2шт.

15

K608128

STUD

- 5/16 UNC x 1-1/8"

12шт.

16

K626682

WASHER

- 5/16"

12шт.

17

K14988

WASHER

COPPER WASHER - 5/16"

12шт.

18

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

12шт.

19

K956514

GEAR

CASE - gear

1шт.

20

K917642

GASKET

- gear case

1шт.

21

K956515

SEAL RETAINER

RETAINER - oil seal

1шт.

22

K920286

SEAL RETAINER

-, Serial Range: retainer-case

2шт.

23

K621807

PIN

DOWEL - 5/16 x 1/2"

2шт.

24

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SET SCREW - 5/16 UNC x 1-1/8"

2шт.

25

K19481

SPRING WASHER

WASHER - lock, 5/16"

2шт.

26

K950287

NECK FILLER

TUBE - oil filler

1шт.

27

K921678

FILTER

- oil filler

1шт.

28

K948427

CAP

- oil filler

1шт.

29

K948947

GEAR

COVER - timing gears

1шт.

30

K924731

GASKET,0.79mm Thk

- cover

1шт.

31

K621807

PIN

DOWEL - 5/16 x 1/2"

2шт.

32

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SET SCREW - 5/16 UNC x 1-1/8"

11шт.

33

K600220

BOLT

- 5/16 UNC x 3-3/4"

4шт.

34

K19481

SPRING WASHER

WASHER - lock, 5/16"

15шт.

35

K924397

COVER

PLATE - inspection

1шт.

36

K204917

GASKET

- plate

1шт.

37

K608152

STUD

- 5/16 UNC x 2"

6шт.

38

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

6шт.

39

K19481

SPRING WASHER

WASHER - lock, 5/16"

6шт.

40

K628127

OIL SEAL,52.2mm ID x 73.45mm OD x 9.5mm Thk

OIL SEAL - 2-1/4 x 2-7/8 x 3/8"

1шт.

41

K623454

FELT SEAL,54.77mm ID x 73.82mm OD x 3.17mm Thk

FELT RING - 2-1/4 x 2-7/8 x 1/8"

1шт.

K965963

ENGINE GASKET KIT

GASKET SET - cylinder block

1шт.
