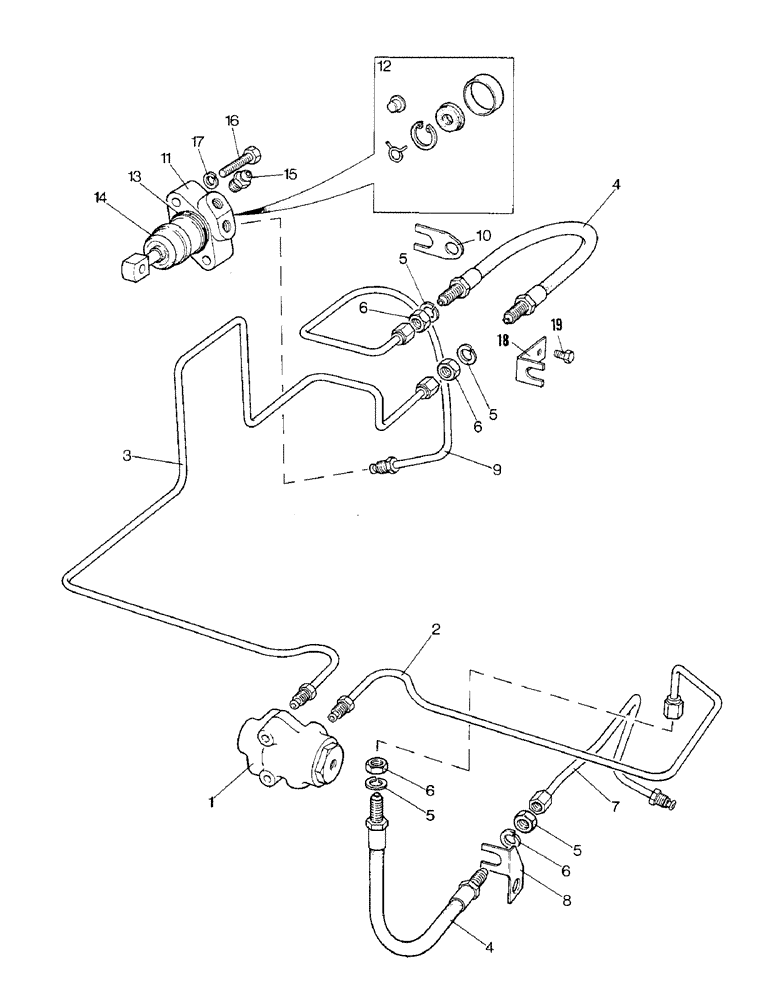

Запчасти Case IH 1690 (J07-1) - BRAKE PIPES AND SLAVE CYLINDERS, HIGH PLATFORM, CAB MODEL (5.1) - BRAKES

1

K957107

VALVE

- balance, See figure J6

1шт.

2

K301274

PIPE

- balance valve to flexible pipe, left-hand

1шт.

Replaced by K305955 after S/N 11214314

1шт.

3

K302098

PIPE

- balance valve to flexible pipe, right-hand

1шт.

Replaced by K305956 after S/N 11214314

1шт.

4

K957164

HOSE,11.023" L

PIPE - flexible

2шт.

5

K626345

LOCK WASHER

WASHER - lock, 12 MM

2шт.

6

K652100

LOCK NUT

LOCKNUT - M12

2шт.

7

K301279

PIPE

- flexible pipe to left-hand slave cylinder

1шт.

8

K301428

CLIP,ELECTRICAL

CLIP - pipe

1шт.

9

K302097

PIPE

- flexible pipe to right-hand slave cylinder

1шт.

10

K302119

BRAKE

CLIP - pipe

1шт.

11

K200219

CYLINDER

- slave (Replaces K201826), Includes Ref. 12 - 15

2шт.

(Girling #73067071)

1шт.

12

K965765

KIT

- seals, mineral oil

1шт.

13

K628876

O-RING,1.443" ID x 0.073" Width

- cylinder

1шт.

14

K965764

SEAL

COVER - rubber

1шт.

15

K964534

SCREW,M12 x 1

- air removal, M12

1шт.

16

K602811

SCREW

SETSCREW - 5/16 UNC x 1-3/4"

4шт.

17

K19481

SPRING WASHER

WASHER - lock, 5/16"

4шт.

18

K302911

BRACKET

- pipe

1шт.

19

K653377

SCREW

- M6 x 12

2шт.
