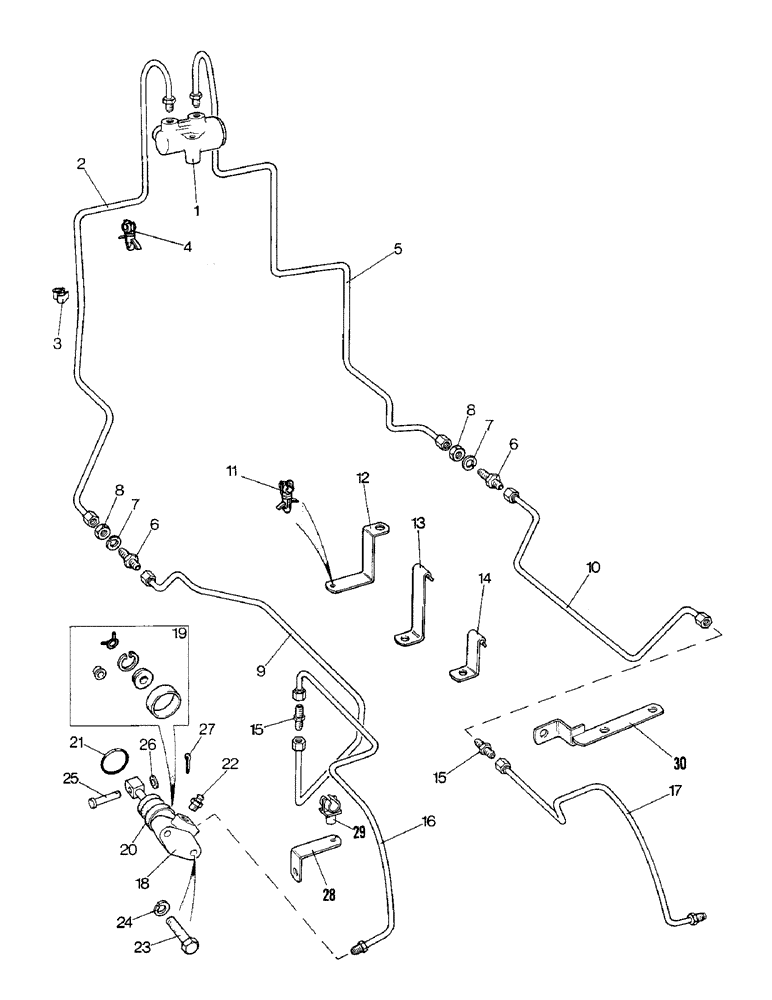

Запчасти Case IH 1690 (J05-1) - BRAKE PIPES AND SLAVE CYLINDERS, LOW PROFILE MODELS POWER SHIFT, SYNCHROMESH (5.1) - BRAKES

1

K957107

VALVE

- balance, see figure J4-1

1шт.

2

K302637

PIPE

- balance valve to connector, left-hand

1шт.

3

K625014

CLIP

- brake pipe to clutch pipe

1шт.

4

K625023

CLIP

- pipe to pedal bracket

1шт.

5

K302636

PIPE,6 mm DIA.

- balance valve to connector, right-hand

1шт.

6

K301280

FITTING

CONNECTOR - M12

2шт.

7

K651850

SPRING

WASHER - lock, 12 MM

2шт.

8

K652100

LOCK NUT

LOCKNUT - M12

2шт.

9

K302185

BRAKE

PIPE - connector to union, left-hand

1шт.

10

K302186

BRAKE

PIPE - connector to union, right-hand

1шт.

11

K625023

CLIP

- plastic

2шт.

12

K301453

BRACKET

- pipe (Low Profile Models Power Shift)

2шт.

12

K301454

BRACKET

- pipe (Low Profile Models Power Shift)

2шт.

13

K304003

WASHER

CLIP - pipe (Low Profile Models Power Shift)

2шт.

13

K304004

WASHER

CLIP - pipe (Low Profile Models Power Shift)

2шт.

14

K304001

BRACKET

CLIP - pipe (Synchromesh)

4шт.

15

K626084

FITTING

UNION - M12

2шт.

16

K304088

BRAKE

PIPE - union to slave cylinder, left-hand

1шт.

17

K304087

BRAKE

PIPE - union to slave cylinder, right-hand

1шт.

18

K201826

CYLINDER

- slave

2шт.

19

K965765

KIT

- seals, mineral oil

1шт.

20

K965764

SEAL

COVER - rubber

1шт.

21

K628876

O-RING,1.443" ID x 0.073" Width

- cylinder to reduction case

1шт.

22

K964534

SCREW,M12 x 1

- M12, air removal

1шт.

23

K602811

SCREW

BOLT - 5/16 UNC, slave cylinder to reduction case

4шт.

24

K19481

SPRING WASHER

WASHER - lock, 5/16"

4шт.

25

K950152

PIN

CLEVIS PIN - 5/16 x 1-5/8"

2шт.

26

K19472

WASHER

- 5/16"

2шт.

27

K11933

PIN

- cotter

2шт.

28

NLS

NO LONGER SERVICED

- left hand pipe

1шт.

29

K625008

CLIP

- pipe, plastic

1шт.

30

K304091

BRACKET

- right hand pipe

1шт.
