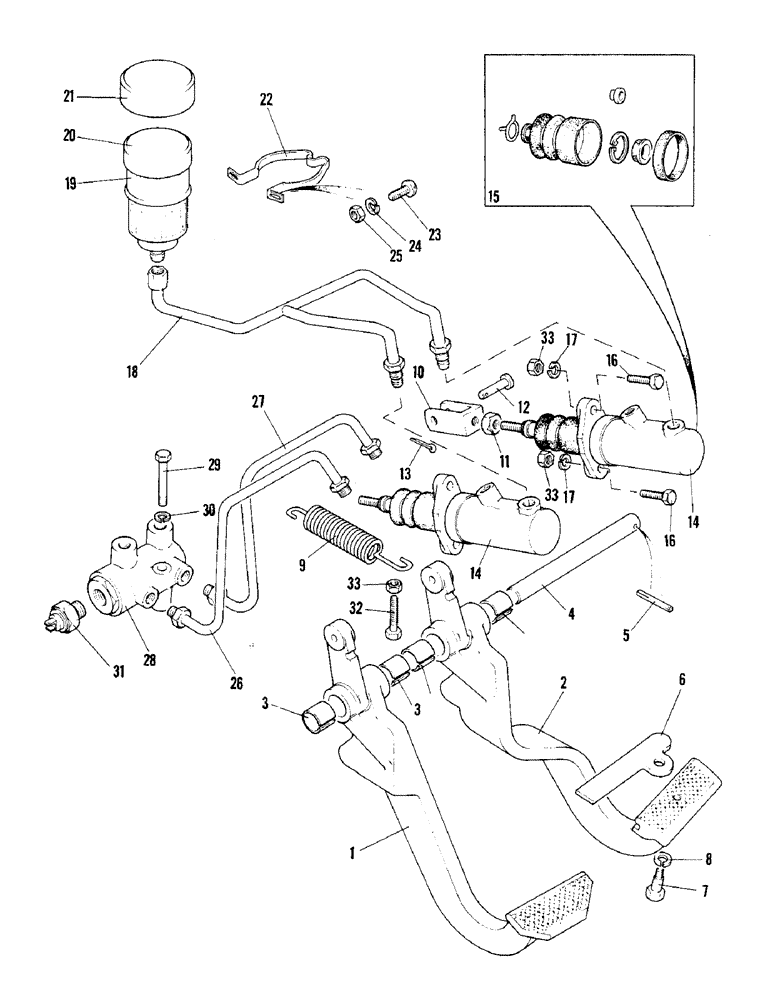

Запчасти Case IH 1690 (J04-3) - BRAKE PEDALS, MASTER CYLINDERS, AND BALANCE VALVE, LOW PROFILE MODEL, P.I.N. 11211216 AND AFTER (5.1) - BRAKES
№
Артикул
Название
Примечание
Количество
1
K260512
BRAKE
PEDAL - left-hand
1шт.
2
K260511
BRAKE
PEDAL - right-hand, Includes Ref. 3
1шт.
3
K628764
BUSHING
- pedals
4шт.
4
K202055
PIN
PIVOT PIN - pedals
1шт.
5
K19552
GROOVED PIN,1/8" x 1 1/8", Type A
Pin, Grooved, 1/8" x 1 1/8", Type A
1шт.
6
K948974
LATCH
LOCKING PLATE - pedals
1шт.
7
K600500
SCREW
BOLT - 3/8 UNC, special
1шт.
8
K626700
WASHER
- lock, 3/8"
1шт.
9
K624971
SPRING
RETURN SPRING - pedal
2шт.
10
K622205
FORK
END - 5/16 UNC
2шт.
11
129-122
NUT,5/16"-24, G5
2шт.
12
K625954
PIN
CLEVIS PIN - 5/16 x 1-3/16"
2шт.
13
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
14
K950544
CYLINDER,36.32mm Stroke
MASTER CYLINDER - brake
2шт.
15
K964572
SEAL KIT
- seals, mineral oil
1шт.
16
K650643
BOLT
SETSCREW - M8 x 25 MM
2шт.
17
K651848
WASHER
- lock, 8 MM
4шт.
18
K302630
PIPE
- reservoir to master cylinders
1шт.
19
K951526
RESERVOIR
- fluid, Includes Ref. 20 and 21
1шт.
20
K964488
CAP
FILLER CAP - reservoir
1шт.
21
K964813
COVER
- blue
1шт.
22
K200671
SPRING
CLIP -, Serial Range: reservoir-bracket
1шт.
23
86625206
SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"
SETSCREW - no. 10 UNF x 1/2"
1шт.
24
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
1шт.
25
K617080
NUT
- no. 10 UNF
1шт.
26
K304243
BRAKE
PIPE - master cylinder to balance valve, left-hand
1шт.
27
K304242
BRAKE
PIPE - master cylinder to balance valve, right-hand
1шт.
28
K957107
VALVE
BALANCE VALVE - brake
1шт.
29
K650636
BOLT
- M6 x 60 MM
2шт.
30
K651847
WASHER, LOCK
WASHER - lock, 6 MM
2шт.
31
K951976
LIGHT SWITCH
SWITCH - stop lamps (Lucas 30874A)
1шт.
32
K650645
BOLT
- M8 x 35 MM, pedal stop
2шт.
Выбрано товаров: 34
