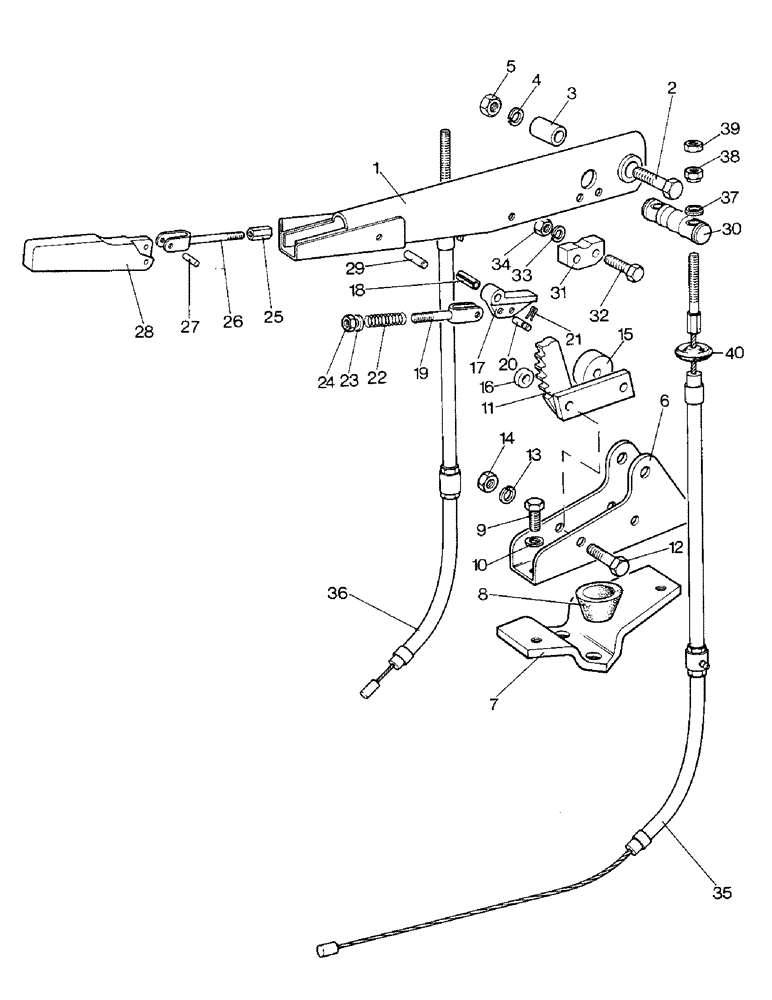

Запчасти Case IH 1690 (J03-1) - HAND BRAKE LEVER, HIGH PLATFORM, CAB, LOW PROFILE (5.1) - BRAKES

1

K955643

LEVER

- hand

1шт.

2

K600526

BOLT

- 3/8 UNC x 1-7/8", hand, Serial Range: lever-bracket

1шт.

3

K627052

BUSHING

SPACER - lever

1шт.

4

K19482

SPRING WASHER

WASHER - lock, 3/8"

1шт.

5

280136

NUT,3/8"-16, G8

1шт.

6

K955244

BRACKET

- hand lever

1шт.

7

K949506

SHIM

PLATE - retaining

1шт.

8

K949507

SEAL

- rubber (High Platform, Cab)

2шт.

9

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4"

2шт.

10

K19481

SPRING WASHER

WASHER - lock, 5/16"

2шт.

11

K200242

RATCHET

- lever

1шт.

12

K600369

BOLT

- 5/16 UNC x 1-3/4" special

2шт.

13

K19481

SPRING WASHER

WASHER - lock, 5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

2шт.

15

K627109

BUSHING

SPACER - ratchet, 1-1/8"

1шт.

16

K627110

BUSHING

SPACER - ratchet, 3/4"

1шт.

17

K200038

PAWL

- ratchet

1шт.

18

138-132

LOCK PIN,1/4" x 7/8", Slotted

PIN, (Replaces K623924) 1/4" x 7/8", Slotted

1шт.

19

K950033

ROD

- pawl

1шт.

20

K949499

PIN

- grooved

1шт.

21

K621572

RING, SNAP

CLIP - spring

1шт.

22

K625099

SPRING

- return

1шт.

23

K626310

WASHER

- 3/16"

1шт.

24

K617080

NUT

- no. 10 UNF

2шт.

25

K617297

NUT

ADJUSTING SLEEVE - no. 10 UNF

1шт.

26

K950033

ROD

- lever

1шт.

27

K949498

PIN

- plain

1шт.

28

K950026

LEVER

- release

1шт.

29

138-2067

PIN,3/16" x 1", Coiled

- 3/16 x 7/8" (Replaces K623773)

1шт.

30

K949501

BAR

- balance

1шт.

31

K949502

SUPPORT

BLOCK - support

1шт.

32

K602739

SCREW

SETSCREW - 1/4 UNC x 1-1/8"

2шт.

33

K626341

SPRING WASHER

WASHER - lock, 1/4"

2шт.

34

K607043

NUT

- 1/4 UNC

2шт.

35

K953948

CABLE

- inner and outer, left-hand

1шт.

36

K950221

BRAKE

CABLE - inner and outer, right-hand

1шт.

37

K949503

WASHER

- 5/16", special

2шт.

38

K617285

SPECIAL NUT

- 5/16 UNF, special

2шт.

39

425--155

LOCKNUT - 5/16 UNF (Replaces K622807)

2шт.

40

K653150

GROMMET

- cable

2шт.
