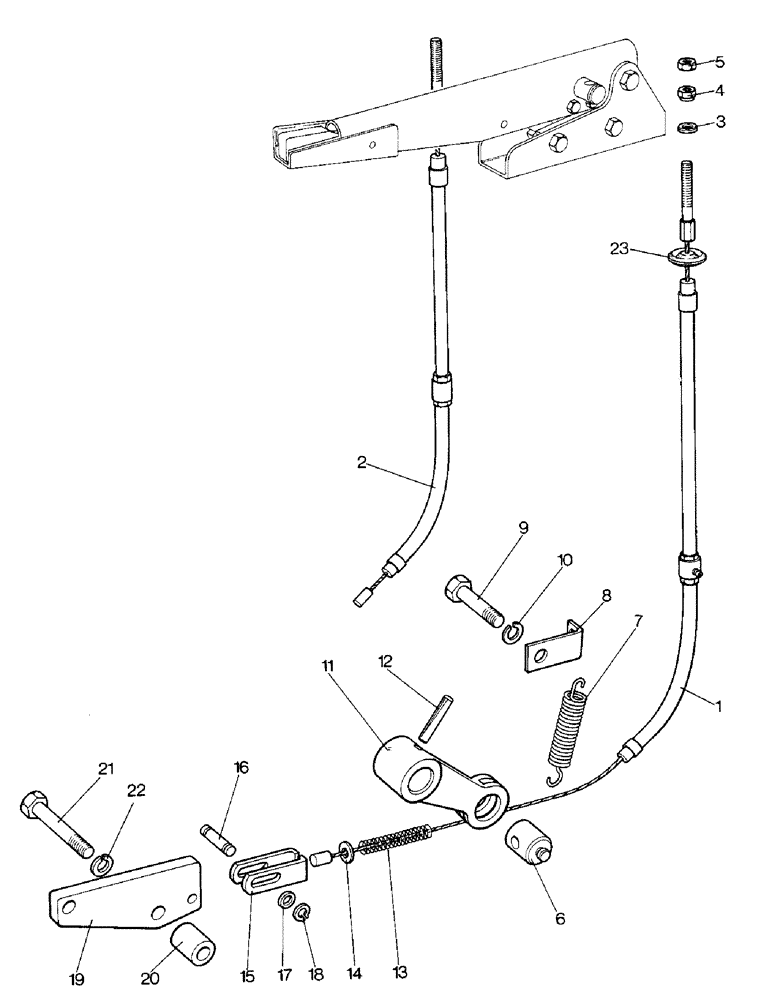

Запчасти Case IH 1690 (J02-1) - HAND BRAKE LINKAGE (5.1) - BRAKES

1

K953948

CABLE

- inner and outer, left-hand

1шт.

K205723 Brake Cable L.H. & K205724 Brake Cable R.H. for use on Hi-Clearance.

1шт.

2

K950221

BRAKE

CABLE - inner and outer, right-hand

1шт.

3

K949503

WASHER

- 5/16", special

2шт.

4

K617285

SPECIAL NUT

- 5/16 UNF, special

2шт.

5

K622807

NUT

LOCKNUT - 5/16 UNF

2шт.

6

K950216

PIN

- 1 x 1-7/8"

2шт.

7

K624927

SPRING

- return

2шт.

8

K954736

SPRING

BRACKET - return spring

2шт.

9

K600810

BOLT

- 1/2 UNC x 2-1/2"

2шт.

10

K19184

X

WASHER - lock, 1/2"

2шт.

11

K950211

LEVER

- brake spindle

2шт.

12

K19566

PIN

- 3/8 x 1-3/4"

2шт.

13

K625259

SPRING

- return

2шт.

14

K626911

WASHER

- 5/16", special

2шт.

15

K949523

FORK

END - cable

2шт.

16

K949552

PIN

- 5/16 x 1-1/4"

2шт.

17

K626682

WASHER

- 5/16"

4шт.

18

K621482

RING, SNAP

RING - snap, 5/16"

4шт.

19

K950209

SHIM

BRACKET - cable

2шт.

20

K627108

BUSHING

SPACER - bracket, 1-3/16"

4шт.

21

K600890

BOLT

- 1/2 UNC x 4"

4шт.

22

K626345

LOCK WASHER

WASHER - lock, 1/2"

4шт.

23

K653150

GROMMET

- cable

2шт.
