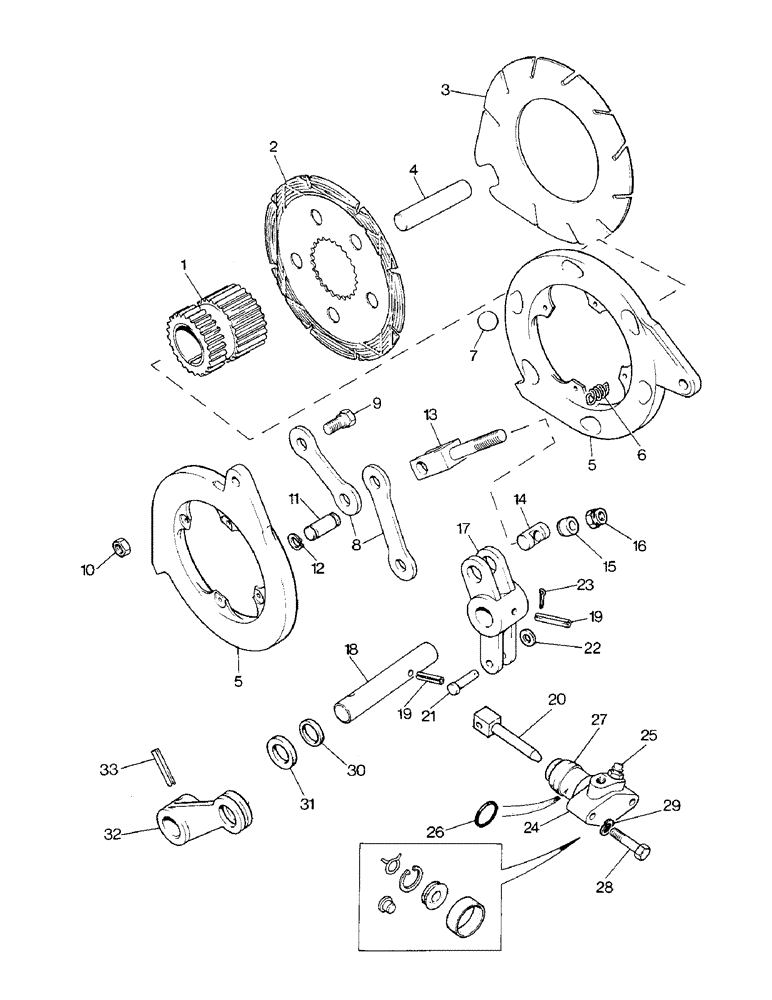

Запчасти Case IH 1690 (J01-1) - DISC BRAKE MECHANISM (5.1) - BRAKES

1

K940854

HUB

- brake discs

1шт.

2

K945754

DISC,185.42mm ID x 224.03mm OD x 4.9mm Thk

- rotating

12шт.

3

K945755

DISC

- stationary

8шт.

4

K940860

SHAFT

REACTION PIN - stationary disc

2шт.

5

K945753

ACTUATOR

PLATE - actuating (Pair)

2шт.

6

K963644

SPRING

- plate

8шт.

7

K963645

BALL

- steel

12шт.

8

K963641

LEVER

- actuating (Pair)

2шт.

9

K963642

BOLT

- lever (Special)

4шт.

10

K963643

NUT

- special

4шт.

11

K625973

PIN

PIVOT PIN - 5/8 x 1-3/4"

2шт.

12

K11797

RING, SNAP

RING - snap, 5/8"

4шт.

13

K940838

STUD

ROD AND FORK - actuating

2шт.

14

K940840

PIN

- 1/8 x 1-5/8"

2шт.

15

K627077

BUSHING

SPACER - lever nut

2шт.

16

K617375

NUT

- 1/2 UNF, self-locking

2шт.

17

K201739

LEVER

- actuating

2шт.

18

K200305

SHAFT

- pivot

2шт.

19

K19566

PIN

- 3/8 x 1-3/4"

2шт.

20

K203380

ROD

- push

2шт.

21

K950152

PIN

CLEVIS PIN - 5/16 x 1-5/8"

2шт.

22

K626682

WASHER

- 5/16"

2шт.

23

K11933

PIN

- cotter, 1/8 x 5/8"

2шт.

24

K201826

CYLINDER

- slave, Includes Ref. 25 - 27

2шт.

K965765

KIT

REPAIR KIT - slave cylinder

1шт.

25

K964534

SCREW,M12 x 1

- M12, air removal

1шт.

26

K628876

O-RING,1.443" ID x 0.073" Width

- cylinder

2шт.

27

K965764

SEAL

- dirt

2шт.

28

K602811

SCREW

SETSCREW - 5/16 UNC x 1-3/4"

4шт.

29

K19481

SPRING WASHER

WASHER - lock, 5/16"

4шт.

30

K623762

O-RING,0.99" ID x 0.147" Width

SEALING RING - 1" ID

2шт.

31

K85417

SEAL

- dirt

2шт.

32

K950211

LEVER

OPERATING LEVER - hand brake

2шт.

33

K19566

PIN

- 3/8 x 1-3/4"

2шт.
