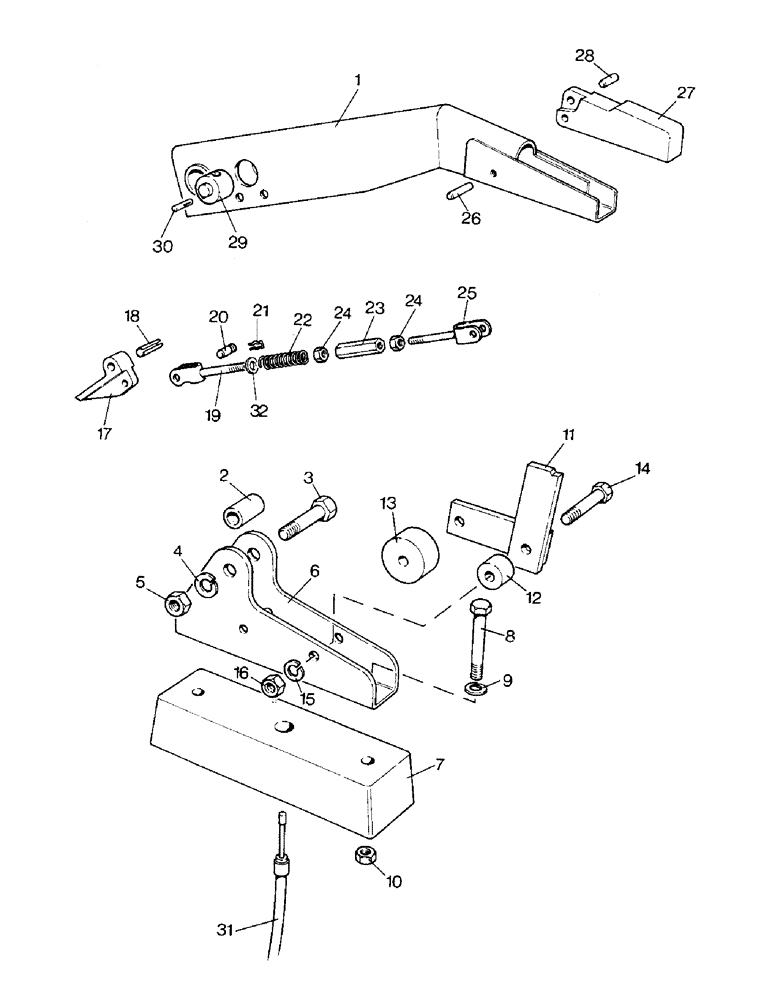

Запчасти Case IH 1690 (C05-1) - HAND LEVER FOR PTO CLUTCH, HIGH PLATFORM, CAB, LOW PROFILE (03.1) - CLUTCH

1

K203579

LEVER

HAND LEVER - PTO

1шт.

2

K627052

BUSHING

SPACER - support bolt

1шт.

3

K600526

BOLT

- 3/8 UNC x 1-7/8"

1шт.

4

192-2

WASHER - lock, 3/8"

1шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

6

K955244

BRACKET

SUPPORT BRACKET - hand lever

1шт.

7

K203545

BUSHING

SPACER - support (High Platform, Cab)

1шт.

8

K600370

BOLT

SETSCREW - 5/16 UNC x 2-1/2" (High Platform, Cab)

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, (High Platform, Cab) 5/16"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

(High Platform, Cab) 5/16"-18, G5

2шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

SETSCREW - M8 x 20 (Low Profile)

2шт.

9

K651848

WASHER

- lock, 8 MM (Low Profile)

2шт.

11

K955645

RATCHET

- PTO

1шт.

12

K627110

BUSHING

SPACER - ratchet

1шт.

13

K627109

BUSHING

SPACER - ratchet

1шт.

14

K600369

BOLT

- 3/8 UNC x 1-3/4"

2шт.

15

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

- 3/8 UNC

2шт.

17

K200038

PAWL

- ratchet

1шт.

18

K623924

SPRING

PIN - 1/4 x 7/8"

1шт.

19

K950033

ROD

PULL ROD - PTO

1шт.

20

K949499

PIN

- grooved 3/16 x 1/2"

1шт.

21

K621572

RING, SNAP

RING - snap, 3/16", external

1шт.

22

K625099

SPRING

- pull rod

1шт.

23

K617297

NUT

ADJUSTING SLEEVE - no. 10 UNF

1шт.

24

K617080

NUT

- no. 10 UNF

2шт.

25

K950033

ROD

PULL ROD - PTO

1шт.

26

K949498

PIN

- 3/16 x 1/2"

1шт.

27

K950026

LEVER

RELEASE LEVER - PTO

1шт.

28

K623773

PIN

- 3/16 x 7/8"

1шт.

29

K955644

RETAINER

CONNECTING PIN -, Serial Range: cable-lever

1шт.

30

K24871

GROOVED PIN,1/8" x 1/2", Type D

Pin, Grooved, 1/8" x 1/2", Type D

1шт.

31

K204769

CABLE,676.27mm L

- inner and outer (Low Profile)

1шт.

31

K204856

CABLE

- inner and outer (High Platform, Cab)

1шт.

32

K626310

WASHER

- flat, 3/16"

1шт.
