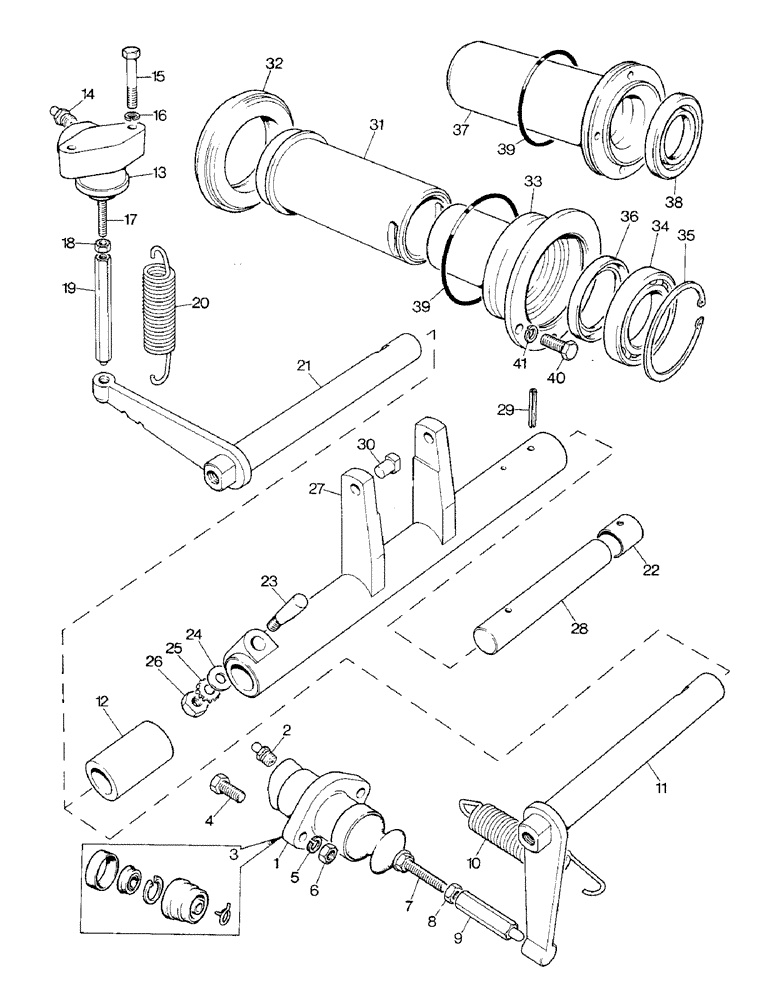

Запчасти Case IH 1690 (C04-1) - TRANSMISSION CLUTCH RELEASE MECHANISM, MECHANICAL COMPONENTS (03.1) - CLUTCH

1

K950550

CYLINDER

SLAVE CYLINDER - clutch (Synchromesh, Low Profile) (Power Shift, Low Profile)

1шт.

2

K964534

SCREW,M12 x 1

- air removal, M12 (Power Shift, Low Profile) (Synchromesh, Low Profile), Includes Ref. 3

1шт.

3

K964576

SEAL KIT

- mineral oil seals (Power Shift, Low Profile) (Synchromesh Low Profile)

1шт.

4

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW - 5/16 UNC x 1-1/8" (Power Shift, Low Profile) (Synchromesh, Low Profile)

2шт.

5

K19481

SPRING WASHER

WASHER - lock, 5/16" (Power Shift, Low Profile) (Synchromesh, Low Profile)

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC (Power Shift, Low Profile) (Synchromesh, Low Profile)

2шт.

7

K949802

ROD

- push (Power Shift, Low Profile) (Synchromesh, Low Profile)

1шт.

8

425-115

NUT,5/16"-24, G5

LOCKNUT - 5/16 UNF (Power Shift, Low Profile) (Synchromesh, Low Profile)

1шт.

9

K949803

ADJUSTER

- 5/16 UNF (Power Shift, Low Profile) (Synchromesh, Low Profile)

1шт.

10

K624962

SPRING

- return (Power Shift, Low Profile) (Synchromesh, Low Profile)

1шт.

11

K302336

SHAFT

STUB SHAFT AND LEVER - left-hand (Power Shift, Low Profile) (Synchromesh, Low Profile)

1шт.

12

K201700

BUSHING

SPACER - stub shaft

1шт.

13

K952267

CYLINDER

SLAVE CYLINDER - clutch (Power Shift, High Platform, Cab) (Synchromesh, High Platform, Cab), Includes Ref. 14

1шт.

(Girling #73067024)

1шт.

14

K964534

SCREW,M12 x 1

- air removal, M12 (Power Shift, High Platform, Cab) (Synchromesh, High Platform, Cab)

1шт.

K964573

SEAL KIT

- mineral oil seals (Same as Ref. 3) (Power Shift, High Platform, Cab) (Synchromesh, High Platform, Cab)

1шт.

15

K650648

BOLT

- M8 x 50 (Power Shift, High Platform, Cab) (Synchromesh, High Platform, Cab)

2шт.

16

K651848

WASHER

- lock, 8 MM (Power Shift, High Platform, Cab) (Synchromesh, High Platform, Cab)

2шт.

17

K949802

ROD

PUSH ROD - push (Power Shift, High Platform, Cab) (Synchromesh, High Platform, Cab)

1шт.

18

425-115

NUT,5/16"-24, G5

LOCKNUT - 5/16 UNF (Power Shift, High Platform, Cab) (Synchromesh High Platform, Cab)

1шт.

19

K957167

ADJUSTER

- 5/16 UNF (Power Shift, High Platform, Cab) (Synchromesh, High Platform, Cab)

1шт.

20

K624976

SPRING

- return (Power Shift, High Platform, Cab) (Synchomesh, High Platform Cab)

1шт.

21

K204058

SHAFT

STUB SHAFT AND LEVER - left-hand (Power Shift, High Platform, Cab) (Synchromesh, High Platform, Cab)

1шт.

22

K628753

BUSHING

- main frame

4шт.

23

K609425

LARGE PIN

PIN - lock, 3/8 UNC

1шт.

24

K19472

WASHER

- 3/8"

1шт.

25

K11522

WASHER

- lock, 3/8"

1шт.

26

280136

NUT,3/8"-16, G8

1шт.

27

K200323

CLUTCH

FORK - clutch

1шт.

28

K200483

SHAFT

STUB SHAFT - right-hand

1шт.

29

K623726

PIN

- spring

1шт.

30

K84748

TRUNNION

- clutch fork

2шт.

31

K200355

BEARING CARRIER

CARRIER - release bearing

1шт.

32

K620153

THRUST BEARING,69.84mm ID x 103.17mm OD x 21.59mm W

BEARING - transmission release

1шт.

33

K200353

SUPPORT

SNOUT - support (Synchromesh, Low Profile) (Synchromesh, High Platform, Cab)

1шт.

34

K620199

BALL

BEARING - ball

1шт.

35

K12229

RING, SNAP

RING - snap, 80 MM (Synchromesh, High Platform, Cab) (Synchromesh Low Profile)

1шт.

36

K623483

OIL SEAL

OIL SEAL - 50 x 70 x 10 MM (Synchromesh, High Platform, Cab) (Synchromesh, Low Profile)

1шт.

37

K200351

SUPPORT

SNOUT - see page D4-1 (Power Shift, High Platform, Cab) (Power Shift, Low Profile)

1шт.

38

K623415

SEAL

OIL SEAL - 46 x 65 x 10 MM (Power Shift, High Platform, Cab) (Power Shift, Low Profile)

1шт.

39

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- 3" ID (Synchromesh, High Platform, Cab) (Synchromesh, Low Profile)

1шт.

39

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- 3" ID (Power Shift, High Platform, Cab) (Power Shift, Low Profile)

2шт.

40

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1" (Synchromesh, High Platform, Cab) (Synchromesh, Low Profile)

3шт.

41

K19481

SPRING WASHER

WASHER - lock, 5/16" (Synchromesh, Low Profile) (Synchromesh, High Platform, Cab)

3шт.
