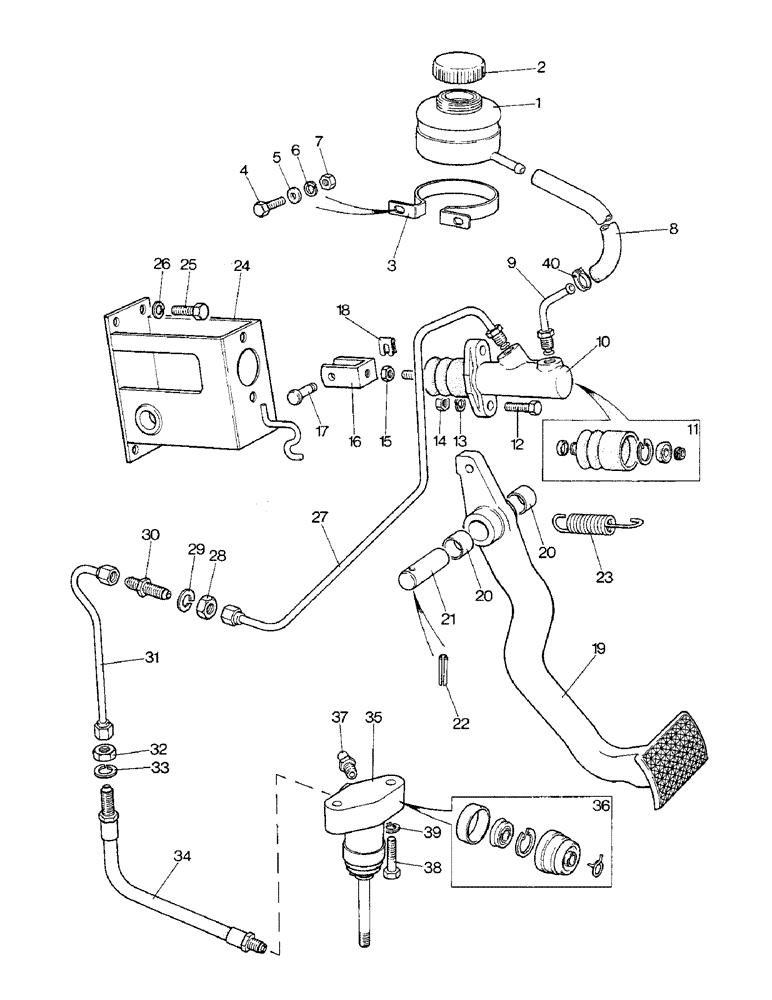

Запчасти Case IH 1690 (C03-3) - RELEASE MECHANISM FOR THE TRANSMISSION CLUTCH, HYDRAULIC COMPONENTS, LOW PROFILE MODEL (03.1) - CLUTCH

1

K301442

CONTAINER

RESERVOIR - oil, Includes Ref. 1

1шт.

2

K301443

CAP

FILLER CAP - reservoir

1шт.

3

K301455

CLIP

- mounting

1шт.

4

K652474

BOLT

SETSCREW - M6 x 12

2шт.

5

K651777

WASHER

- 6 MM

2шт.

6

K651847

WASHER, LOCK

WASHER - lock, 6 MM

2шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

8

K302133

HOSE

- 6 x 92 MM

1шт.

9

K302099

PIPE

- master cylinder inlet

1шт.

10

K950544

CYLINDER,36.32mm Stroke

MASTER CYLINDER - mineral oil, Includes Ref. 11

1шт.

11

K964572

SEAL KIT

SEAL KIT - master cylinder

1шт.

12

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW - 5/16 UNC x 1-1/8"

2шт.

13

K19481

SPRING WASHER

WASHER - lock, 5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

2шт.

15

425-115

NUT,5/16"-24, G5

LOCKNUT - 5/16 UNF

1шт.

16

K622205

FORK

END - 5/16 UNF

1шт.

17

K625930

PIN

CLEVIS PIN - 5/16 x 1-3/16"

1шт.

18

K625040

CLIP

- spring

1шт.

19

REF

INSTRUCTION

CLUTCH PEDAL - with bushing, Includes Ref. 20 - 22

1шт.

20

REF

INSTRUCTION

BUSHING - pivot

2шт.

21

K303545

PIN

- pivot

1шт.

22

REF

INSTRUCTION

PIN - roll

1шт.

23

K303540

SPRING

- return

1шт.

24

REF

INSTRUCTION

BRACKET - mounting

1шт.

25

REF

INSTRUCTION

SETSCREW - bracket

4шт.

26

REF

INSTRUCTION

WASHER - lock

4шт.

27

K302088

PIPE

- master, Serial Range: cylinder-union

1шт.

28

K652100

LOCK NUT

LOCKNUT - M12

1шт.

29

K626686

WASHER

- lock, 12 MM

1шт.

30

K301280

FITTING

UNION - M12

1шт.

31

K302614

PIPE

- intermediate

1шт.

32

K652100

LOCK NUT

LOCKNUT - M12

2шт.

33

K626345

LOCK WASHER

WASHER - lock, 12 MM

1шт.

34

K957165

HOSE,12.6" L

FLEXIBLE PIPE - M12 x 320

1шт.

35

K304693

BRAKE

SLAVE CYLINDER - mineral oil seals, Includes Ref. 36 and 37

1шт.

36

K964573

SEAL KIT

SEAL KIT - slave cylinder

1шт.

37

K964534

SCREW,M12 x 1

- air removal

1шт.

38

K650648

BOLT

- M8 x 15

2шт.

39

K651848

WASHER

- lock, 8 MM

2шт.

40

K656903

CLIP

CLAMP - hose, 1/2"

1шт.
