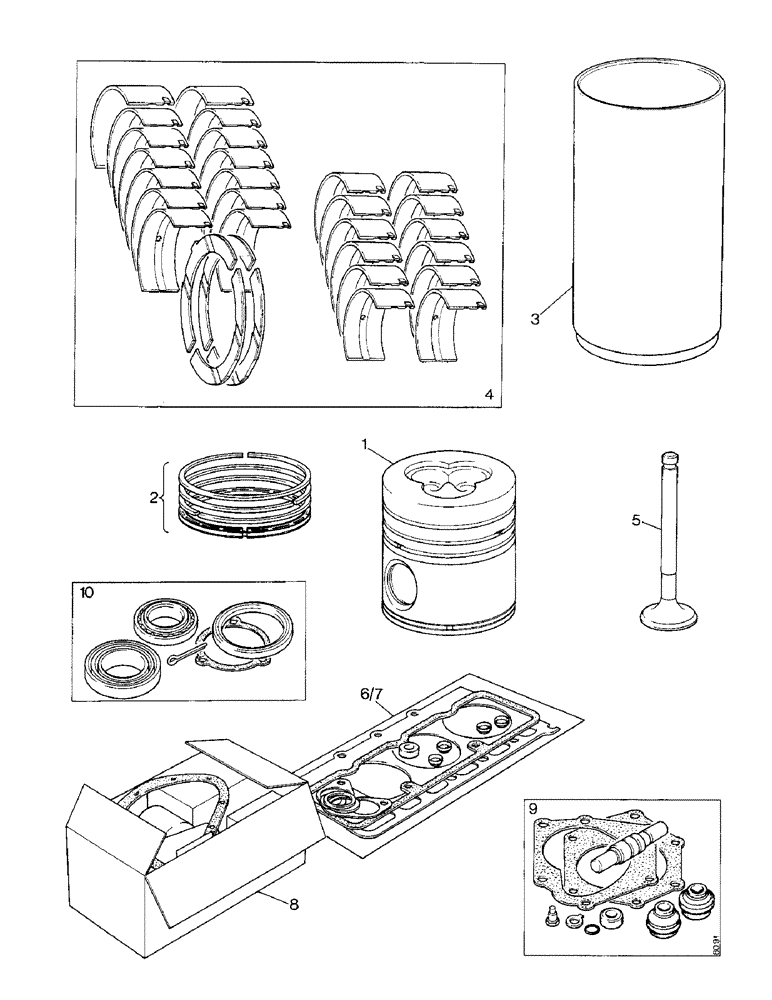

Запчасти Case IH 1690 (V05-1) - SERVICE KITS AND SERVICE PARTS (18) - MISCELLANEOUS

1

K946354

PISTON

ASSEMBLY - engine, 0.020" oversize

1шт.

K943885

RING, PISTON

PISTON RING - no. 1 compression

1шт.

K943886

RING, PISTON

PISTON RING - no. 2 and 3 compression

2шт.

K917412

PISTON

RING - scraper

1шт.

2

K964731

RING

KIT - oil control ring, standard

6шт.

2

K964730

RING

KIT - oil control ring, 0.020" oversize

6шт.

3

K964857

LINER, ENGINE CYLIND

CYLINDER LINER - piston

6шт.

4

K965048

BEARING

KIT - main and big end bearings, standard

1шт.

4

K260606

BEARING

KIT - main and big end bearings, 0.010" undersize

1шт.

4

K260607

BEARING

KIT - main and big end bearings, 0.020" undersize

1шт.

4

K260608

BEARING

KIT - main and big end bearing, 0.030" undersize

1шт.

5

K928622

STD INLET VALVE

VALVE - inlet and exhaust, standard stem

6шт.

5

K928986

VALVE

- inlet and exhaust, 0.010" oversize stem

6шт.

5

K928987

VALVE

- inlet and exhaust, 0.020" oversize stem

6шт.

6

K965963

ENGINE GASKET KIT

KIT - cylinder block gaskets

1шт.

7

K965964

KIT, ENGINE TOP GASK

KIT - cylinder head gaskets

1шт.

8

K965731

KIT

- first service

1шт.

9

K965888

PACKAGE, REPAIR

KIT - water pump repair

1шт.

10

K962986

SEAL

KIT - front hub bearing and seal

2шт.
