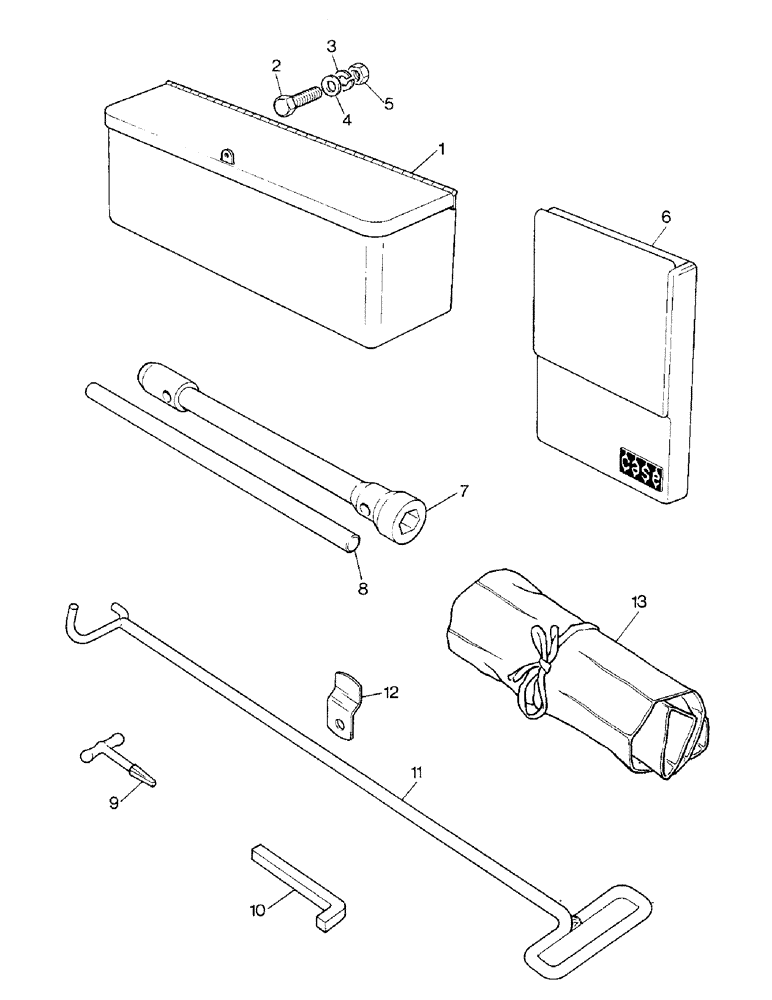

Запчасти Case IH 1690 (V04-1) - TOOLBOX AND TOOLS, HIGH PLATFORM, CAB, LOW PROFILE (18) - MISCELLANEOUS

1

K203000

TOOL

BOX - tractor (Low Profile)

1шт.

1

K955806

COMPLETE TOOL BOX

TOOLBOX - tractor (High Platform, Cab)

1шт.

2

K650359

BOLT,M10 x 1.5 x 20mm

- M10 x 20 (Low Profile)

4шт.

2

K602982

SCREW,3/8" - 16 x 3/4", Gr S

SETSCREW - 3/8 UNC x 3/4" (High Platform, Cab)

2шт.

3

K19482

SPRING WASHER

WASHER - lock, 10 MM (Low Profile)

4шт.

3

K19482

SPRING WASHER

WASHER - lock, 3/8" (High Platform, Cab)

2шт.

4

K19472

WASHER

- 3/8" (High Platform, Cab)

2шт.

5

280136

NUT,3/8"-16, G8

(High Platform, Cab) 3/8"-16, G8

2шт.

6

K954320

BOX

- operators manual (Low Profile)

1шт.

7

K948956

SOCKET WRENCH

WHEEL BRACE - 1-1/2 x 1" A/F

1шт.

7

K203223

DISC, WHEEL

WHEEL BRACE - 1-1/2" x 27 MM A/F

1шт.

8

K948095

CLEVIS PIN

TOMMY BAR

1шт.

9

K946448

GRIP

KEY - bonnet lock

1шт.

10

K39426

OPEN END WRENCH

WRENCH - transmission filler plug

1шт.

11

K201795

HITCH

ROD - lower link release (Low Profile)

1шт.

11

K203246

ROD

- lower link release (High Platform, Cab)

1шт.

12

K203086

CLIP

RETAINING CLIP - release rod (Low Profile)

2шт.

13

UK5118

TOOL

BOX - tractor

1шт.
