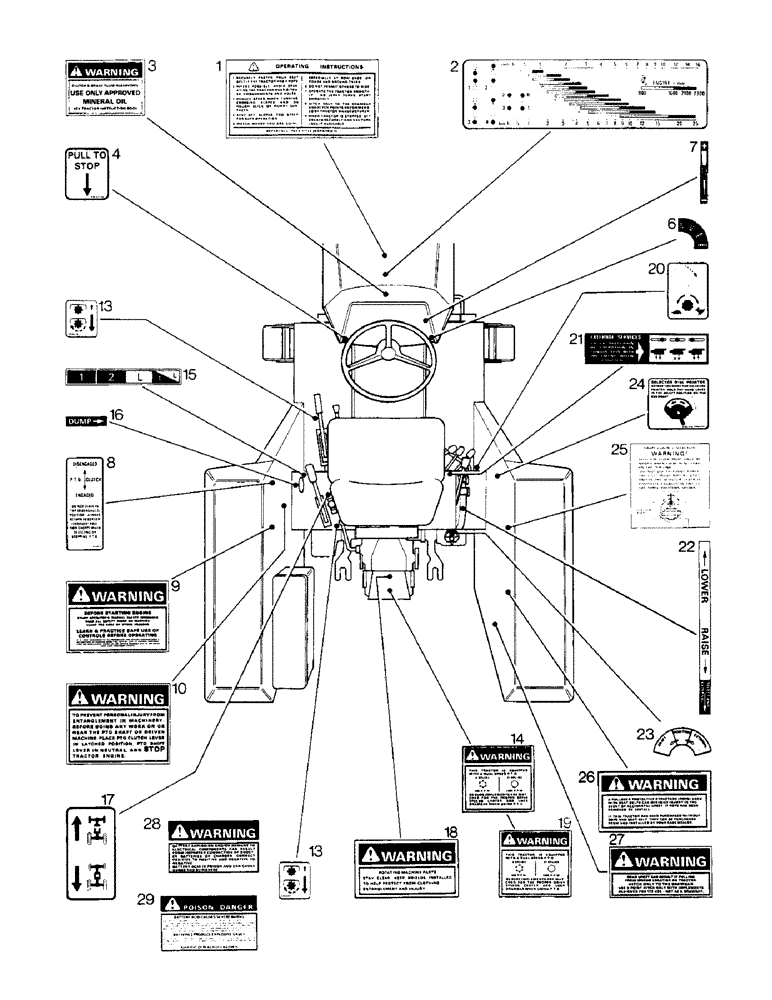

Запчасти Case IH 1690 (V02-1) - DECALS AND INSTRUCTION PLATES, LOW PROFILE MODEL (18) - MISCELLANEOUS

1

K953245

DECAL

- operating instructions

1шт.

2

K301363

DECAL

- travel speed chart, 9:59 reductions, synchromesh

1шт.

2

K301367

INDICATOR

DECAL - travel speed chart, 9:59 reductions, Power Shift

1шт.

2

K301365

DECAL

- travel speed chart, 11:58 reductions, synchromesh

1шт.

2

K301369

DECAL

- travel speed chart, 11"58 reductions, Power-Shift

1шт.

3

K203756

DECAL

- brake and clutch fluid

1шт.

4

K301231

DECAL

- engine stop control

1шт.

6

K203385

DECAL

- starter switch

1шт.

7

K952669

DECAL

- engine speed control, hand lever

1шт.

8

K950497

DECAL

- PTO clutch operation

1шт.

9

K953244

DECAL

- engine starting warning

1шт.

10

K200319

DECAL

- PTO warning

1шт.

13

K948343

DECAL

- PTO clutch lever

2шт.

14

K203386

DECAL

- multi-speed PTO warning

1шт.

15

K203220

DECAL

- three-way valve

1шт.

16

K952542

DECAL

- dump valve

1шт.

17

K304094

PRODUCT GRAPHIC

DECAL - 4WD control

1шт.

18

K953240

DECAL

- rotating machinery warning

1шт.

19

K953884

DECAL

- reversible shaft PTO warning

1шт.

20

K203980

DECAL

- rate of lowering control

1шт.

21

K952540

DECAL

- live take-off controls

1шт.

22

K956569

DECAL

- hydraulic control lever

1шт.

23

K204099

DECAL

- selector control

1шт.

23

K204632

DECAL

- selector control

1шт.

24

K203215

DECAL

- selector control operation

1шт.

25

K940361

PRODUCT GRAPHIC

DECAL - draft sensing unit warning

1шт.

26

K953251

DECAL

- ROPS warning

1шт.

27

K953241

DECAL

- hitch warning

1шт.

28

K952727

PRODUCT GRAPHIC

DECAL - battery warning

1шт.

29

K953243

DECAL

- battery

1шт.
