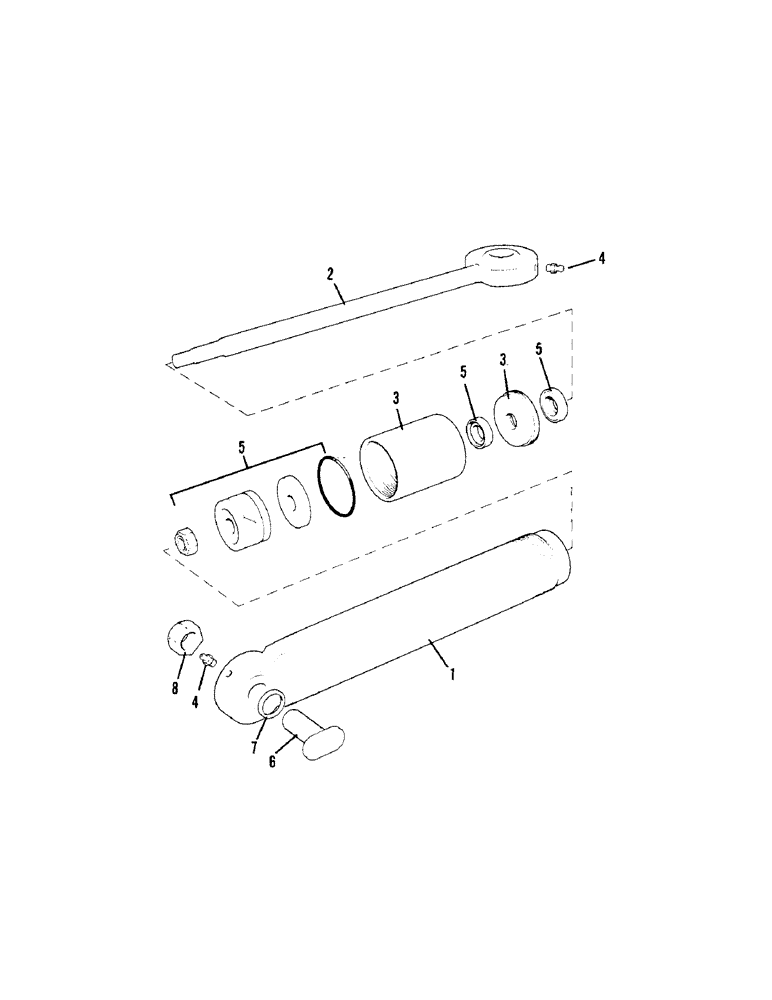

Запчасти Case IH 1690 (H10-1) - STEERING CYLINDER, PRIOR TO P.I.N. 11210996, 2.087" (53 MM) DIAMETER MFD MODEL (13) - STEERING SYSTEM

K260231

CYLINDER

ASSEMBLY - steering (Carraro 104773), Includes Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER - steering

1шт.

2

K260243

PISTON

ROD - piston (Carraro 43502)

1шт.

3

K260246

COVER

END COVER - cylinder (Carraro 43504)

1шт.

4

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

GREASE FITTING - (Carraro 24210)

2шт.

5

K260504

GASKET KIT

KIT - seal cylinder (Carraro 260504)

1шт.

6

K260233

BOLT

- special (Carraro 97132)

2шт.

7

K260234

WASHER

- (Carraro 97095)

2шт.

8

K260232

NUT

- self-locking (Carraro 22437)

2шт.
