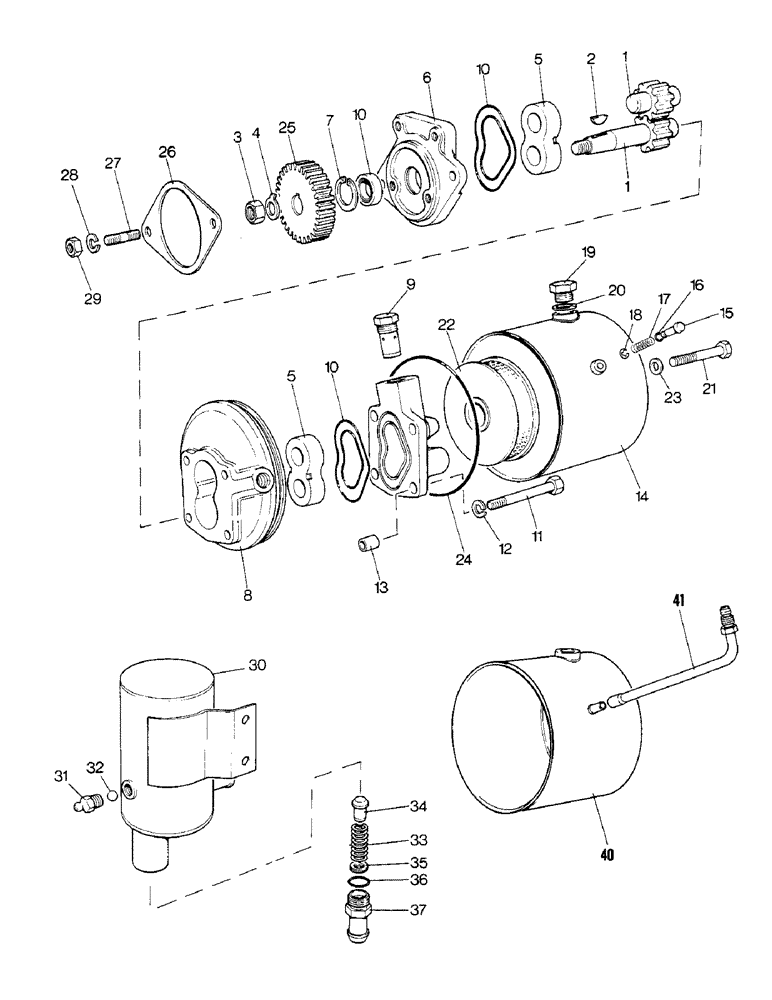

Запчасти Case IH 1690 (H08-1) - STEERING PUMP AND RESERVOIR (13) - STEERING SYSTEM

K205653

PUMP

AND RESERVOIR ASSEMBLY - steering, Start Serial: 11213310

1шт.

K956695

PUMP

AND RESERVOIR ASSEMBLY - steering, Includes Ref. 1 - 4, Serial Range: -11213310

1шт.

K956695 replaced, use: K204270 Tube, K204309 Connector, K205653 Steering Pump, K302478 Bracket, K302479 Bracket,825-1408 Nut 892-11008 Washer

1шт.

K964815

GEAR

ROTOR PACK - pump

1шт.

1

K964934

GEAR

ROTORS - pair

1шт.

2

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

(No. 405) #5, 1/8" x 5/8"

1шт.

3

425-157

JAM NUT,Jam, 7/16"-20, G5

- 7/16 UNF

1шт.

4

K626380

WASHER

TABWASHER

1шт.

5

K962189

BEARING

- pump

2шт.

6

K964925

FLANGE

MOUNTING FLANGE - pump

1шт.

7

K962097

RING, SNAP

RING - snap, 13/16", internal

1шт.

8

K964923

COVER

- pump body

1шт.

K964923 SOME DAVID BROWN BOOKS ARE IN ERROR. THE COVER IS NSS MUST ORDER COMPLETE UNIT. REF. 8 SHOULD BE JUST THE CENTER FLANGE.

1шт.

9

K964932

VALVE

RELIEF VALVE - pre-set assembly 0, Serial Range: -11213310

1шт.

9

K205561

VALVE

RELIEF VALVE - pre-set assembly0, Start Serial: 11213310

1шт.

10

K964935

SEAL

SEAL PACK - oil seal and o-rings

1шт.

11

K965769

BOLT

- 3/8 UNC x 3-1/8"

4шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

K964920

PIN

RING DOWEL

2шт.

14

K260582

RESERVOIR

- pump, Includes Ref. 15 - 18, Start Serial: 11213310

1шт.

15

K965932

VALVE

PLUNGER - reservoir

1шт.

16

K965933

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

O-RING - 3/16" internal diameter

1шт.

17

K965934

SPRING

- plunger

1шт.

18

K965935

RING, SNAP

RING - snap, plunger

1шт.

19

K623825

PLUG

- 1/2 BSP

1шт.

20

K626769

WASHER

SEALING WASHER - 7/8"

1шт.

21

K964930

BOLT

- 5/16 UNC x 2-1/4"

1шт.

22

K964954

FILTER

ELEMENT - filter (Replaces K965931), Includes Ref. 23 and 24

1шт.

23

K964928

SEAL

ING WASHER - 5/16"

1шт.

24

K965217

RING

SEALING RING - reservoir

1шт.

25

K945098

PINION

GEAR - 28 teeth

1шт.

K945098 IS NOT INCLUDED AS PART OF THE PUMP ASSY PER PRINT.

1шт.

26

K919729

GASKET,0.76mm Thk

- mounting

1шт.

27

K608147

STUD

- 5/16 UNC x 1"

2шт.

28

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

29

9635082

NUT,5/16" - 18, Gr 5

2шт.

30

K203706

RESERVOIR

ASSEMBLY - steering, Includes Ref. 31 - 40

1шт.

31

K910104

SCREW

BLEED SCREW - reservoir

1шт.

32

211-208

BALL,5/16" Dia

STEEL BALL - 5/16"

1шт.

33

K24887

SPRING

- plunger

1шт.

34

K949562

PLUNGER

- reservoir

1шт.

35

K626922

SHIM,.030" Thk

Spring .030" Thk

1шт.

36

K623592

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

37

K949561

CONNECTOR, ELEC

CONNECTOR - plunger

1шт.

40

K964933

TANK

RESERVOIR - pump, Serial Range: -11213310

1шт.

41

K204270

PIPE,0.312" OD x 20, 2" L

- breather, Start Serial: 11213310

1шт.
