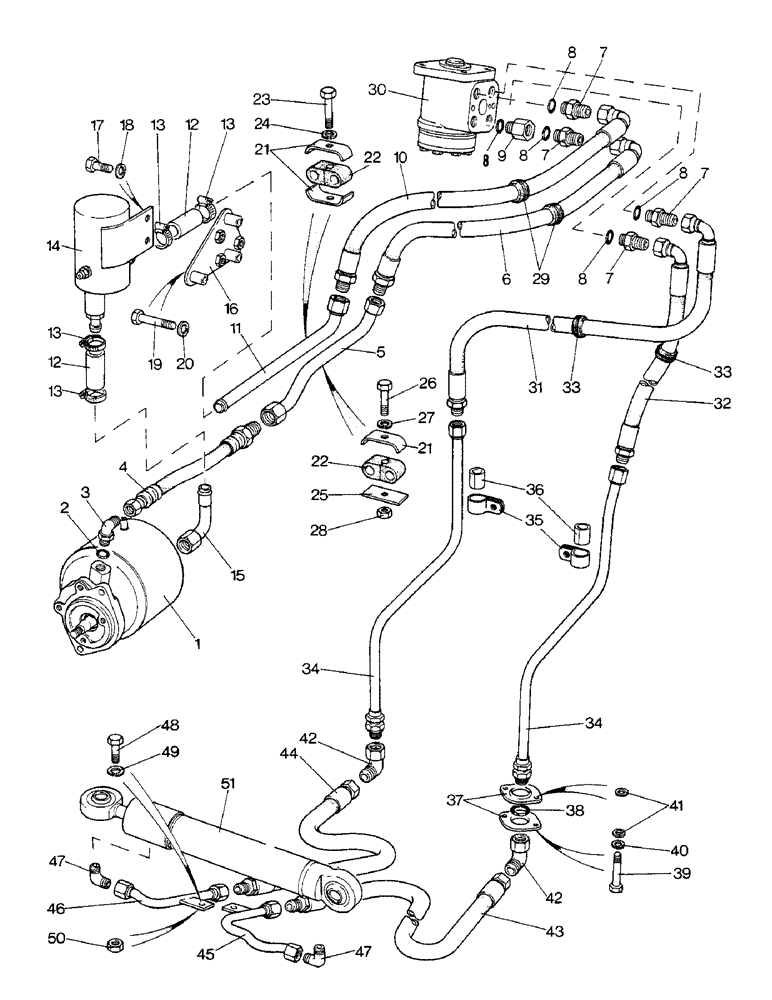

Запчасти Case IH 1690 (H05-1) - STEERING SYSTEM, HIGH PLATFORM, CAB MFD MODEL (13) - STEERING SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - See figure H8

1шт.

2

K623649

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 7/16" internal diameter

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16 UNF

1шт.

4

K203684

HOSE

PIPE - flexible, 3/4-7/8 UNF x 12-1/2"

1шт.

5

K203703

PIPE

- rigid

1шт.

6

K202456

HOSE

PIPE - flexible, 3/4-7/8 UNF x 33"

1шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION - 3/4 UNF

4шт.

9

K200059

VALVE

NON-RETURN VALVE

1шт.

10

K202456

HOSE

PIPE - flexible, 3/4-7/8 UNF x 33"

1шт.

11

K203704

PIPE

- rigid

1шт.

12

K626818

HOSE

-, Serial Range: pipe-reservoir

2шт.

13

K622024

CLAMP

- hose

4шт.

14

K203706

RESERVOIR

ASSEMBLY - steering

1шт.

15

K203707

PIPE

- rigid, Serial Range: reservoir-pump

1шт.

16

K302109

BRACKET

SUPPORT BRACKET - reservoir

1шт.

17

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

2шт.

18

K651848

WASHER

- 8 MM

2шт.

19

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

3шт.

20

K626682

WASHER

- 5/16"

3шт.

21

K951982

SHIM

CLAMP - rear

2шт.

22

K951993

SLEEVE

RUBBER SLEEVE - pipe

2шт.

23

K650364

BOLT

- M10 x 45

1шт.

24

K651849

WASHER

- lock, 10 MM

1шт.

21

K951982

SHIM

CLAMP - front

1шт.

22

K951993

SLEEVE

RUBBER SLEEVE - pipe

1шт.

25

K302247

CLAMP

PLATE - pipe

1шт.

26

K650363

BOLT

- M10 x 40

1шт.

27

K651849

WASHER

- lock, 10 MM

1шт.

28

100016

NUT,M10 x 1.5, Cl 8

1шт.

29

K627774

RUBBER

GROMMET - pipe

2шт.

30

K924898

VALVE

STEERING VALVE ASSEMBLY - See figure H1

1шт.

Use K206396 Noise reduced unit.

1шт.

31

K202458

HOSE

PIPE - flexible, right-hand

1шт.

32

K202457

HOSE

PIPE - flexible, left-hand

1шт.

33

K627774

RUBBER

GROMMET - pipe

2шт.

34

K202292

PIPE,0.5" OD x 16.5, 10.875" L

- rigid

2шт.

35

K621717

CLIP

- pipes

2шт.

36

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

NYLON TUBE - clamp

2шт.

37

K945907

RING, SNAP

CLAMP PLATE

4шт.

38

K628856

O-RING,0.649" ID x 0.25" Width

- 5/8" internal diameter

2шт.

39

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SETSCREW - 1/4 UNC x 7/8"

4шт.

40

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

41

K19470

WASHER

- 1/4"

8шт.

42

K260228

FITTING

ELBOW - 90 degree

2шт.

43

K260230

HOSE

PIPE - flexible, left-hand

1шт.

44

K260229

HOSE

PIPE - flexible, right-hand

1шт.

45

K260227

PIPE

- rigid, left-hand

1шт.

46

K260226

PIPE

- rigid, right-hand

1шт.

47

K260225

FITTING

ELBOW

2шт.

48

K965359

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

SETSCREW

1шт.

49

K965360

LOCK WASHER,M8

SPRING WASHER

1шт.

50

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

51

K260231

CYLINDER

STEERING CYLINDER - (2.087" diameter) (53 MM) See figure H10, Start Serial: 11210996

1шт.

51

K260281

STEERING CYLINDER

- (2.362" diameter) (60 MM) See figure H10, Serial Range: -11210996

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8" internal diameter

5шт.
