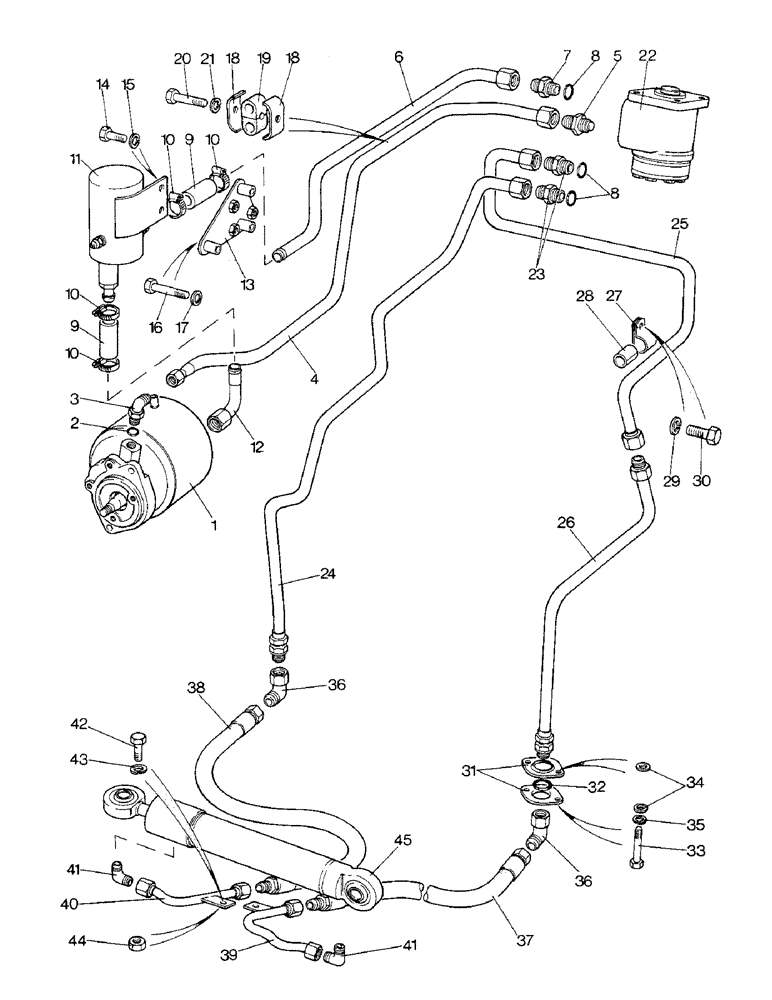

Запчасти Case IH 1690 (H03-1) - STEERING SYSTEM, LOW PROFILE MFD MODEL (13) - STEERING SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - steering, See Fig. H8

1шт.

2

K623649

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 7/16" internal pump outlet

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16 UNF pump outlet

1шт.

4

K202817

PIPE

- pump outlet

1шт.

5

K203639

VALVE

NON-RETURN VALVE - pump outlet

1шт.

6

K203694

BRACKET

PIPE - pump return

1шт.

7

218-5356

HYD CONNECTOR,1 3/16"-12, 37 Degree x 1 1/16"-12, O-Ring

UNION - 3/4 x 7/8 UNF pump return

1шт.

9

K626818

HOSE

-, Serial Range: pipe-reservoir

2шт.

10

K622024

CLAMP

HOSE CLIP

4шт.

11

K203706

RESERVOIR

ASSEMBLY - steering

1шт.

12

K203707

PIPE

-, Serial Range: reservoir-pump

1шт.

13

K302109

BRACKET

SUPPORT BRACKET - reservoir

1шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8, Reservoir to bracket

2шт.

15

K651848

WASHER

- lock, 8 MM, Serial Range: reservoir-bracket

2шт.

16

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

(10) bracket to manifold Hex, 5/16"-18 x 3", G5

3шт.

17

K626682

WASHER

- 5/16", Serial Range: bracket-manifold

3шт.

18

K951982

SHIM

CLAMP - pipes

6шт.

19

K951993

SLEEVE

RUBBER SLEEVE -, Serial Range: clamp-pipes

6шт.

20

K650364

BOLT

- M10 x 45

3шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

22

K924898

VALVE

ASSEMBLY - steering, See figure H1

1шт.

Use K206396 a Noise Reduced Unit

1шт.

23

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION - 3/4 UNF

2шт.

24

K202857

PIPE

- right-hand side

1шт.

25

K202858

HOSE

PIPE - left-hand upper

1шт.

26

K202859

PIPE ASSY.

PIPE - left-hand lower

1шт.

27

K621717

CLIP

CLAMP - pipes

2шт.

28

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

NYLON TUBE - clamp to pipes

2шт.

29

K651849

WASHER

- lock, 10 MM

2шт.

30

513-704

BOLT

SETSCREW - M10 x 20

2шт.

31

K945907

RING, SNAP

CLAMP PLATE - pipes to main frame

4шт.

32

K628856

O-RING,0.649" ID x 0.25" Width

- 5/8" internal

2шт.

33

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SETSCREW - 1/4 UNC x 7/8"

4шт.

34

K19470

WASHER

- 1/4"

8шт.

35

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

36

K260228

FITTING

ELBOW - 90 degree

2шт.

37

K260230

HOSE

PIPE - flexible, left-hand

1шт.

38

K260229

HOSE

PIPE - flexible, right-hand

1шт.

39

K260227

PIPE

- rigid, left-hand

1шт.

40

K260226

PIPE

- rigid, right-hand

1шт.

41

K260225

FITTING

ELBOW - 90 degree

2шт.

42

K965359

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

SETSCREW - tube

1шт.

43

K965360

LOCK WASHER,M8

WASHER - lock

1шт.

44

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

45

K260231

CYLINDER

STEERING CYLINDER - (2.087" diameter) (53 MM) see figure H10, Start Serial: 11210996

1шт.

45

K260281

STEERING CYLINDER

- (2.362" diameter) (60 MM) see figure H10, Serial Range: -11210996

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8" internal

4шт.
